Name: Radiator/Coolant Overflow Container (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Radiator/Coolant Overflow Container (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Radiator/Coolant Overflow Container (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

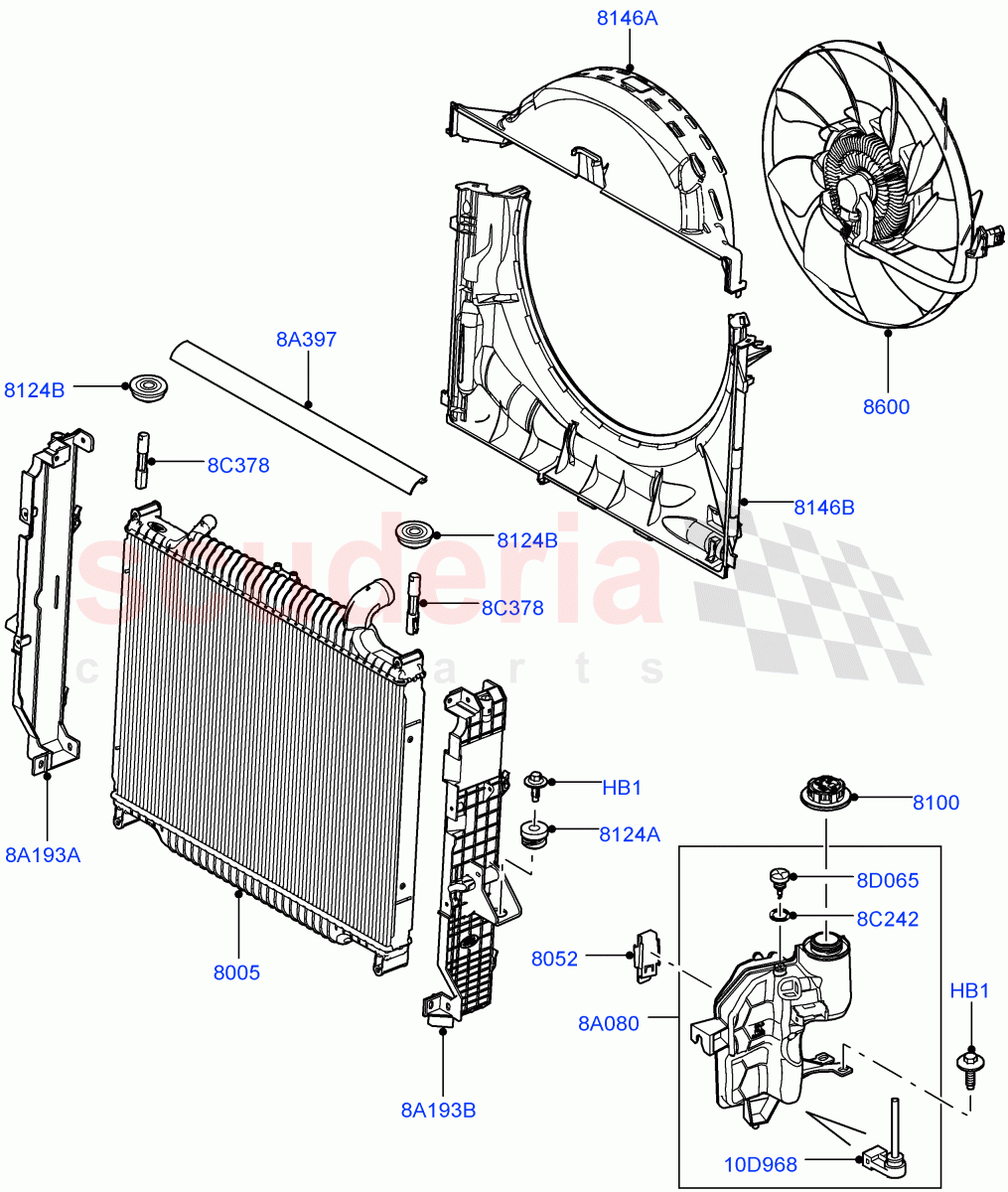

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PYP500040	SCREW AND WASHER	$0.72	To Order

Photo	Part No	Description	Price (each)	Stock
	PCC500300	RADIATOR	$653.87	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU500091	BRACKET	$7.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PCD500030	CAP - OVERFLOW CONTAINER	$21.50	To Order

Photo	Part No	Description	Price (each)	Stock
	PGG500360	FAN	$644.35	To Order
	LR025234	FAN	$675.46	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG500120	INSULATOR - RADIATOR SUPPORT	$4.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PDI500012	INSULATOR - RADIATOR MOUNTING	$2.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PGK500281	SHIELD	$94.03	To Order

Photo	Part No	Description	Price (each)	Stock
	PGK500292	DUCT - AIR	$137.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013663	TANK - RADIATOR OVERFLOW	$70.55	To Order
	LR020367	TANK - RADIATOR OVERFLOW	$135.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	DHE500140	SEAL	$6.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	$2.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PDG500045	PIN	$1.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR007314	VALVE - BLEEDER SCREW	$4.58	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	$23.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PCU500240	BRACKET - FAN	$33.93	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU500250	BRACKET - FAN	$33.93	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	PYP500040	SCREW AND WASHER	PYP500040 SCREW AND WASHER M6 X 20MM / From: AA000001	$0.72	4
8A080	LR013663	TANK - RADIATOR OVERFLOW	LR013663 TANK - RADIATOR OVERFLOW With Sensor / From: AA000001 / To: AA223999	$70.55	1
8A080	LR020367	TANK - RADIATOR OVERFLOW IN STOCK	LR020367 TANK - RADIATOR OVERFLOW From: AA224000 IN STOCK	$135.30	1
8A193A	PCU500240	BRACKET - FAN	PCU500240 BRACKET - FAN RH / From: AA000001	$33.93	1
8A193B	PCU500250	BRACKET - FAN	PCU500250 BRACKET - FAN LH / From: AA000001	$33.93	1
8A397	DHE500140	SEAL	DHE500140 SEAL Upper / From: AA000001	$6.63	1
8C242	LR007315	SEAL IN STOCK	LR007315 SEAL Bleeder Screw / From: AA000001 IN STOCK	$2.16	1
8C378	PDG500045	PIN IN STOCK	PDG500045 PIN Top / From: AA000001 IN STOCK	$1.49	2
8D065	LR007314	VALVE - BLEEDER SCREW	LR007314 VALVE - BLEEDER SCREW Bleeder Screw / From: AA000001 / To: AA235920	$4.58	1
10D968	PCJ500030	SENSOR - COOLANT LEVEL IN STOCK	PCJ500030 SENSOR - COOLANT LEVEL Expansion Reservoir Overflow / From: AA000001 IN STOCK	$23.95	1
8005	PCC500300	RADIATOR	PCC500300 RADIATOR From: AA000001	$653.87	1
8052	PCU500091	BRACKET IN STOCK	PCU500091 BRACKET Expansion Reservoir Overflow / From: AA000001 IN STOCK	$7.71	1
8100	PCD500030	CAP - OVERFLOW CONTAINER	PCD500030 CAP - OVERFLOW CONTAINER From: AA000001	$21.50	1
8124A	PCG500120	INSULATOR - RADIATOR SUPPORT IN STOCK	PCG500120 INSULATOR - RADIATOR SUPPORT Lower, Round / From: AA000001 IN STOCK	$4.27	2
8124B	PDI500012	INSULATOR - RADIATOR MOUNTING IN STOCK	PDI500012 INSULATOR - RADIATOR MOUNTING Radiator Mounting, Top / From: AA000001 IN STOCK	$2.70	2
8146A	PGK500281	SHIELD	PGK500281 SHIELD Upper / From: AA000001	$94.03	1
8146B	PGK500292	DUCT - AIR	PGK500292 DUCT - AIR Lower / From: AA000001	$137.09	1
8600	PGG500360	FAN	PGG500360 FAN From: AA000001 / To: AA262010	$644.35	1
8600	LR025234	FAN	LR025234 FAN From: AA262011	$675.46	1
