Inlet Manifold (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Inlet Manifold (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

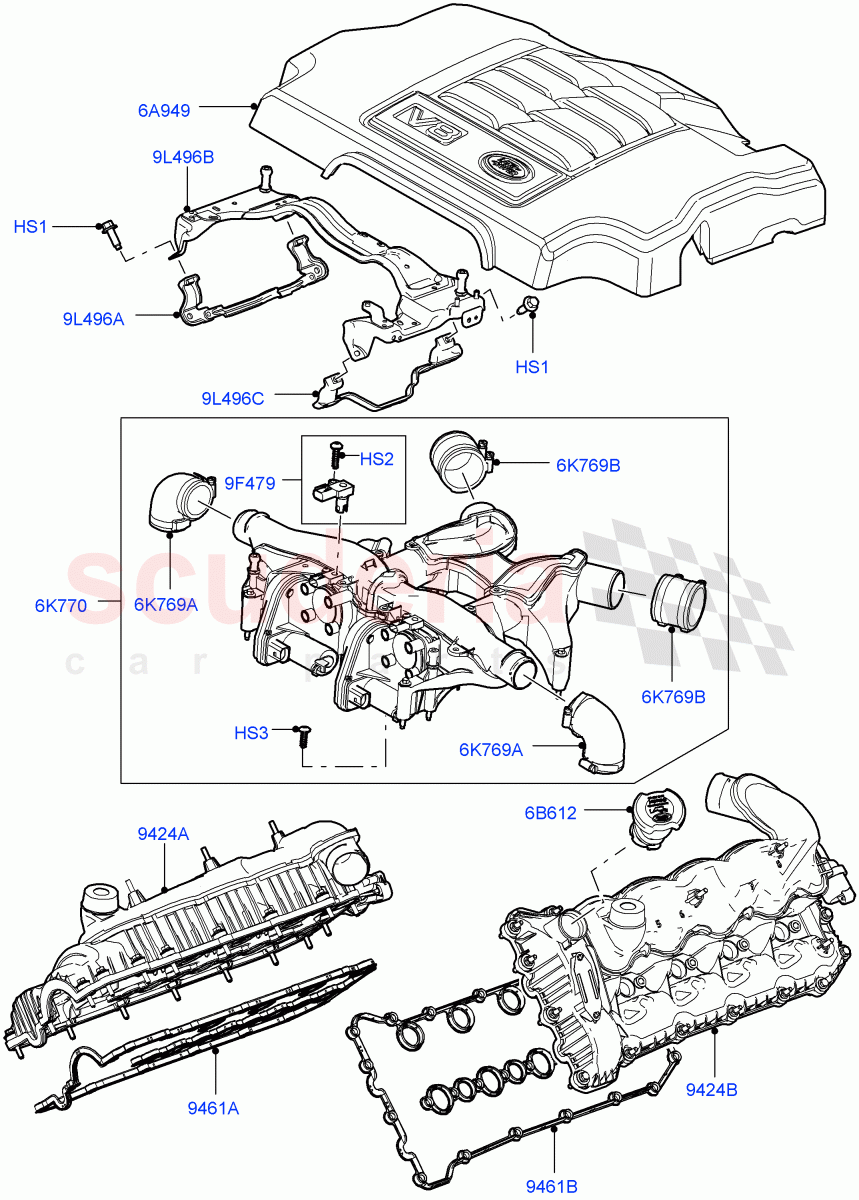

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004031	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LBH500350	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order
	LR019483	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053016	PIPE - OIL FEED	Enquire	To Order
	LR053016	PIPE - OIL FEED	Enquire	To Order
	LR053016	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020530	DUCT - AIR	Enquire	To Order
	LR020530	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005274	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005659	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005898	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005897	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007596	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014468	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004076	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002479	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005823	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002478	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	4364422	SCREW	4364422 SCREW M6 X 16MM / From: AA000001	-	4	Enquire
HS2	LR004031	SCREW	LR004031 SCREW 5 x 20MM, MAP Sensor / From: AA000001	-	2	Enquire
HS3	LR004030	SCREW	LR004030 SCREW M5 x 14MM / From: AA000001	-	4	Enquire
6A949	LBH500350	INSULATOR - ENGINE COMPARTMENT	LBH500350 INSULATOR - ENGINE COMPARTMENT Engine / From: AA000001 / To: AA333332	-	1	Enquire
6A949	LR019483	INSULATOR - ENGINE COMPARTMENT	LR019483 INSULATOR - ENGINE COMPARTMENT Engine / From: AA333333	-	1	Enquire
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED Land Rover Print / From: AA000001 / To: AA999999	-	1	Enquire
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: BA000001 / To: DA777054	-	1	Enquire
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: DA777055	-	1	Enquire
6K769A	LR014468	DUCT - AIR	LR014468 DUCT - AIR Elbow / From: AA000001	-	2	Enquire
6K769B	LR004076	DUCT - AIR	LR004076 DUCT - AIR From: AA000001	-	2	Enquire
6K770	LR020530	DUCT - AIR	LR020530 DUCT - AIR From: AA000001 / To: AA226298	-	1	Enquire
6K770	LR020530	DUCT - AIR	LR020530 DUCT - AIR From: AA226299	-	1	Enquire
9F479	LR007596	SENSOR	LR007596 SENSOR Sensor - Air Charge Temperature, Sensor - Manifold Absolute Pressure (MAP) / From: AA000001	-	2	Enquire
9L496A	LR002479	BRACKET	LR002479 BRACKET RH / From: AA000001	-	1	Enquire
9L496B	LR005823	BRACKET	LR005823 BRACKET Center Support / From: AA000001	-	1	Enquire
9L496C	LR002478	BRACKET	LR002478 BRACKET LH / From: AA000001	-	1	Enquire
9424A	LR005274	MANIFOLD - INLET	LR005274 MANIFOLD - INLET RH, Includes Sealing Gasket, With Cylinder Head Cover / From: AA000001	-	1	Enquire
9424B	LR005659	MANIFOLD - INLET	LR005659 MANIFOLD - INLET LH, Includes Sealing Gasket, With Cylinder Head Cover / From: AA000001	-	1	Enquire
9461A	LR005898	GASKET - INTAKE MANIFOLD	LR005898 GASKET - INTAKE MANIFOLD RH, Manifold To Cylinder Head / From: AA000001	-	1	Enquire
9461B	LR005897	GASKET - INTAKE MANIFOLD	LR005897 GASKET - INTAKE MANIFOLD LH, Manifold To Cylinder Head / From: AA000001	-	1	Enquire
