Exhaust Manifold (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Exhaust Manifold (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LYG500210 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
1003736 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
6076340 NUT - HEX. - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
1357627 STUD Enquire To Order
Photo Part No Description Price (each) Stock
1420910 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR005685 MANIFOLD - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR005686 MANIFOLD - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LWQ500230 SHIELD - EXHAUST MANIFOLD HEAT Enquire To Order
Photo Part No Description Price (each) Stock
LWQ500150 SHIELD - EXHAUST MANIFOLD HEAT Enquire To Order
View All

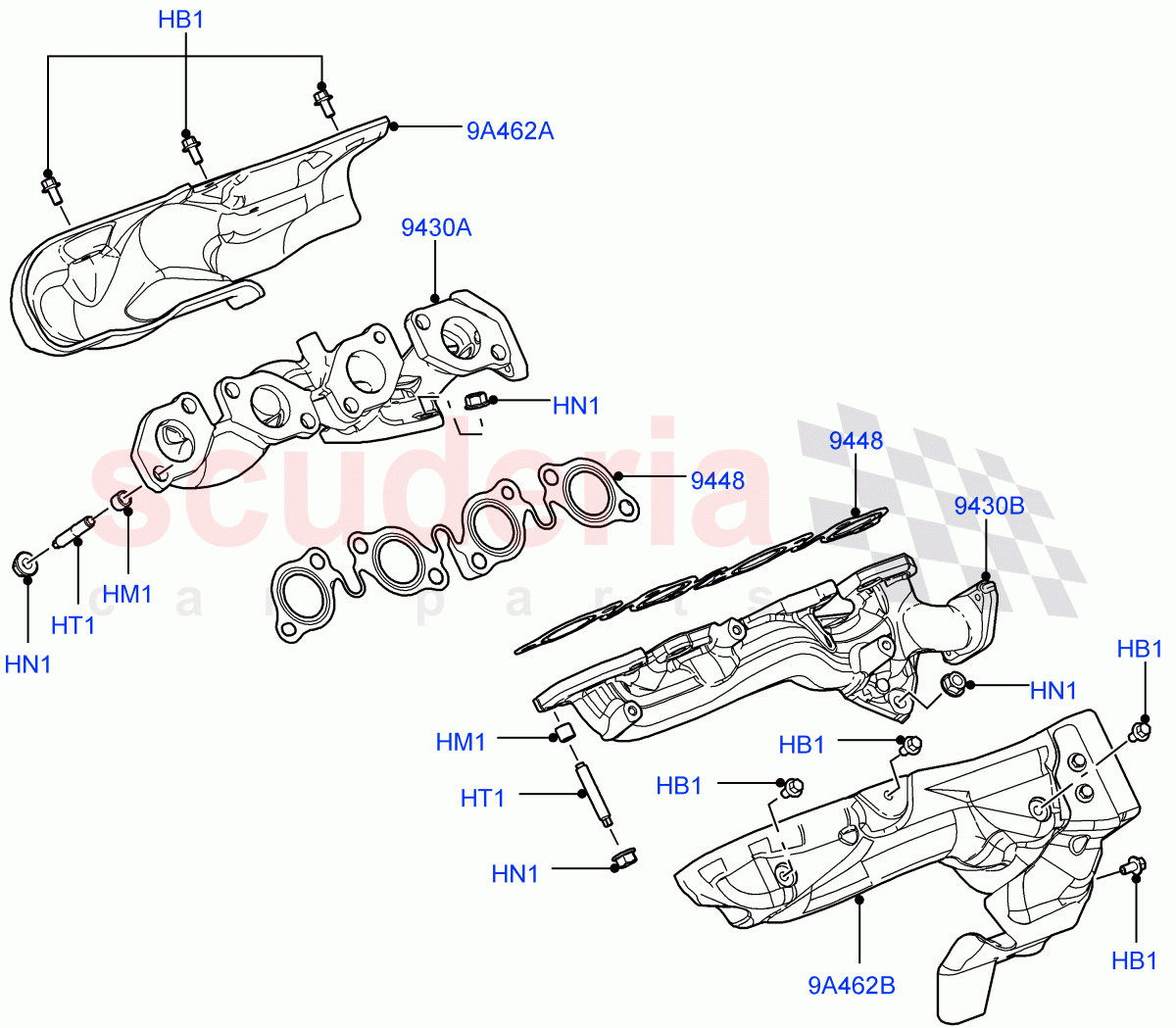

Exhaust Manifold (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LYG500210
BOLT - HEX.HEAD
Heat Shield, M6 X 8MM / From: AA000001 		- 7 Enquire
HM1 1003736
SPACER
8.5 x 10MM, Spacer For Exhaust Manifold Bolt / From: AA000001 		- 2 Enquire
HN1 6076340
NUT - HEX. - FLANGED
M8 / From: AA000001 		- 16 Enquire
HT1 1357627
STUD
M8 X 17 + M8 X 19 / From: AA000001 		- 16 Enquire
9A462A LWQ500230
SHIELD - EXHAUST MANIFOLD HEAT
RH, Exhaust Manifold / From: AA000001 		- 1 Enquire
9A462B LWQ500150
SHIELD - EXHAUST MANIFOLD HEAT
LH, Exhaust Manifold / From: AA000001 		- 1 Enquire
9430A LR005685
MANIFOLD - EXHAUST
RH / From: AA000001 		- 1 Enquire
9430B LR005686
MANIFOLD - EXHAUST
LH / From: AA000001 		- 1 Enquire
9448 1420910
GASKET
Exhaust Manifold / From: AA000001 		- 2 Enquire
