Rear Seat Pads/Valances & Heating ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Rear Seat Pads/Valances & Heating ((V) FROMAA000001)

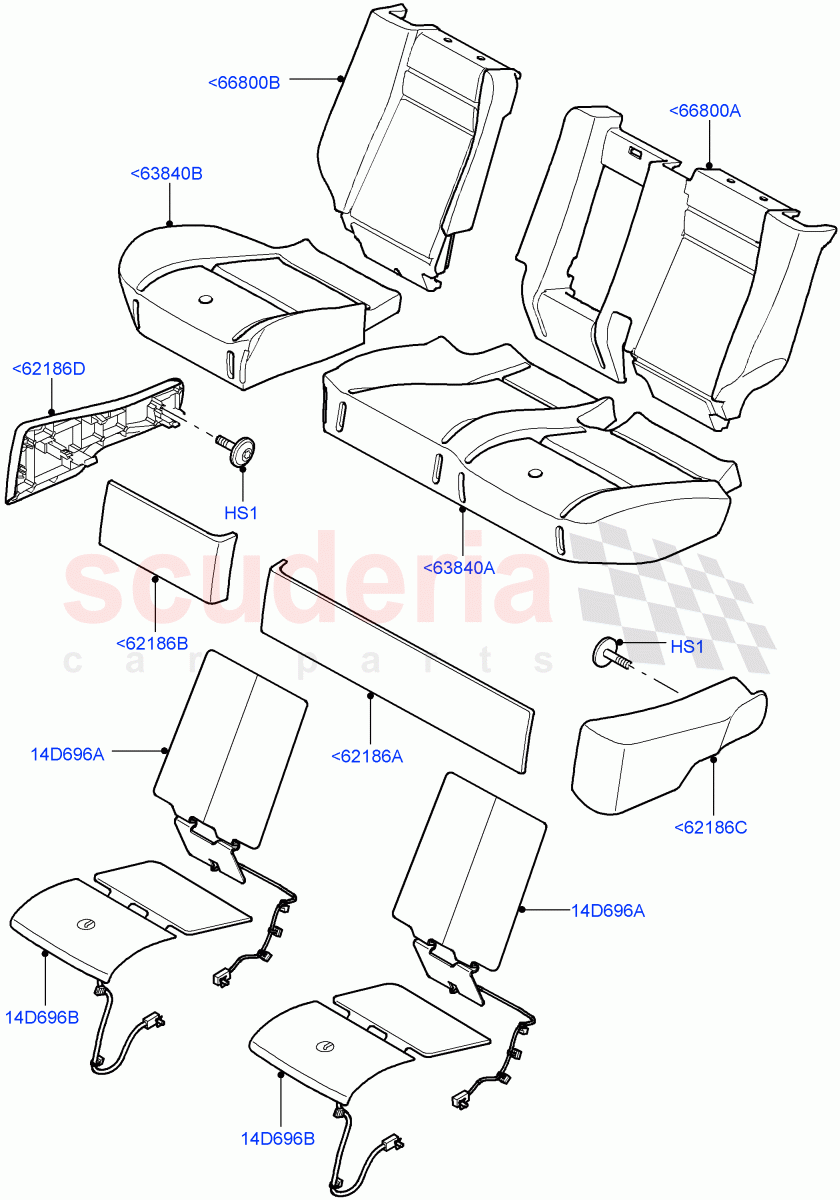

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYP500150	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXA500200PVJ	VALANCE - SEAT CUSHION	Enquire	To Order
	LR008592	VALANCE - SEAT CUSHION	Enquire	To Order
	HXA500200HFX	VALANCE - SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXA500210PVJ	VALANCE - SEAT CUSHION	Enquire	To Order
	LR008593	VALANCE - SEAT CUSHION	Enquire	To Order
	HXA500210HFX	VALANCE - SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXA500270PVJ	VALANCE - SEAT CUSHION	Enquire	To Order
	LR008926	VALANCE - SEAT CUSHION	Enquire	To Order
	LR016522	VALANCE - SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXA500260PVJ	VALANCE - SEAT CUSHION	Enquire	To Order
	LR008594	VALANCE - SEAT CUSHION	Enquire	To Order
	LR016521	VALANCE - SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HVB500160	PAD - REAR SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HVB500170	PAD - REAR SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HVA500220	PAD - REAR SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HVA500230	PAD - REAR SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HVD500100	ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HVD500050	ELEMENT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<62186A	HXA500200PVJ	VALANCE - SEAT CUSHION	HXA500200PVJ VALANCE - SEAT CUSHION Int Ebony Carpet / Front, Large / From: AA000001	-	1	Enquire
<62186A	LR008592	VALANCE - SEAT CUSHION	LR008592 VALANCE - SEAT CUSHION Interior Nutmeg Carpet - LR / Front, Large / From: AA000001	-	1	Enquire
<62186A	HXA500200HFX	VALANCE - SEAT CUSHION	HXA500200HFX VALANCE - SEAT CUSHION Interior Ocean Carpet / Front, Large / From: AA000001	-	1	Enquire
<62186B	HXA500210PVJ	VALANCE - SEAT CUSHION	HXA500210PVJ VALANCE - SEAT CUSHION Int Ebony Carpet / Front, Small / From: AA000001	-	1	Enquire
<62186B	LR008593	VALANCE - SEAT CUSHION	LR008593 VALANCE - SEAT CUSHION Interior Nutmeg Carpet - LR / Front, Small / From: AA000001	-	1	Enquire
<62186B	HXA500210HFX	VALANCE - SEAT CUSHION	HXA500210HFX VALANCE - SEAT CUSHION Interior Ocean Carpet / Front, Small / From: AA000001	-	1	Enquire
<62186C	HXA500270PVJ	VALANCE - SEAT CUSHION	HXA500270PVJ VALANCE - SEAT CUSHION Int Ebony Carpet / Large, Side / From: AA000001	-	1	Enquire
<62186C	LR008926	VALANCE - SEAT CUSHION	LR008926 VALANCE - SEAT CUSHION Interior Nutmeg Carpet - LR / Large, Side / From: AA000001	-	1	Enquire
<62186C	LR016522	VALANCE - SEAT CUSHION	LR016522 VALANCE - SEAT CUSHION Interior Ocean Carpet / Large, Side / From: AA000001	-	1	Enquire
<62186D	HXA500260PVJ	VALANCE - SEAT CUSHION	HXA500260PVJ VALANCE - SEAT CUSHION Int Ebony Carpet / Side, Small / From: AA000001	-	1	Enquire
<62186D	LR008594	VALANCE - SEAT CUSHION	LR008594 VALANCE - SEAT CUSHION Interior Nutmeg Carpet - LR / Side, Small / From: AA000001	-	1	Enquire
<62186D	LR016521	VALANCE - SEAT CUSHION	LR016521 VALANCE - SEAT CUSHION Interior Ocean Carpet / Side, Small / From: AA000001	-	1	Enquire
<63840A	HVB500160	PAD - REAR SEAT CUSHION	HVB500160 PAD - REAR SEAT CUSHION Large / From: AA000001	-	1	Enquire
<63840B	HVB500170	PAD - REAR SEAT CUSHION	HVB500170 PAD - REAR SEAT CUSHION Small / From: AA000001	-	1	Enquire
<66800A	HVA500220	PAD - REAR SEAT BACK	HVA500220 PAD - REAR SEAT BACK Large / From: AA000001	-	1	Enquire
<66800B	HVA500230	PAD - REAR SEAT BACK	HVA500230 PAD - REAR SEAT BACK Small / From: AA000001	-	1	Enquire
HS1	HYP500150	SCREW	HYP500150 SCREW 16MM, Torx / From: AA000001	-	8	Enquire
14D696A	HVD500100	ELEMENT	HVD500100 ELEMENT With Heated Seats - Front/Rear / Large, Small / From: AA000001	-	2	Enquire
14D696B	HVD500050	ELEMENT	HVD500050 ELEMENT With Heated Seats - Front/Rear / Large, Small / From: AA000001	-	2	Enquire
