Front Seat Base (Electric Front Seat Adj Drv Memory) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Front Seat Base (Electric Front Seat Adj Drv Memory) ((V) FROMAA000001)

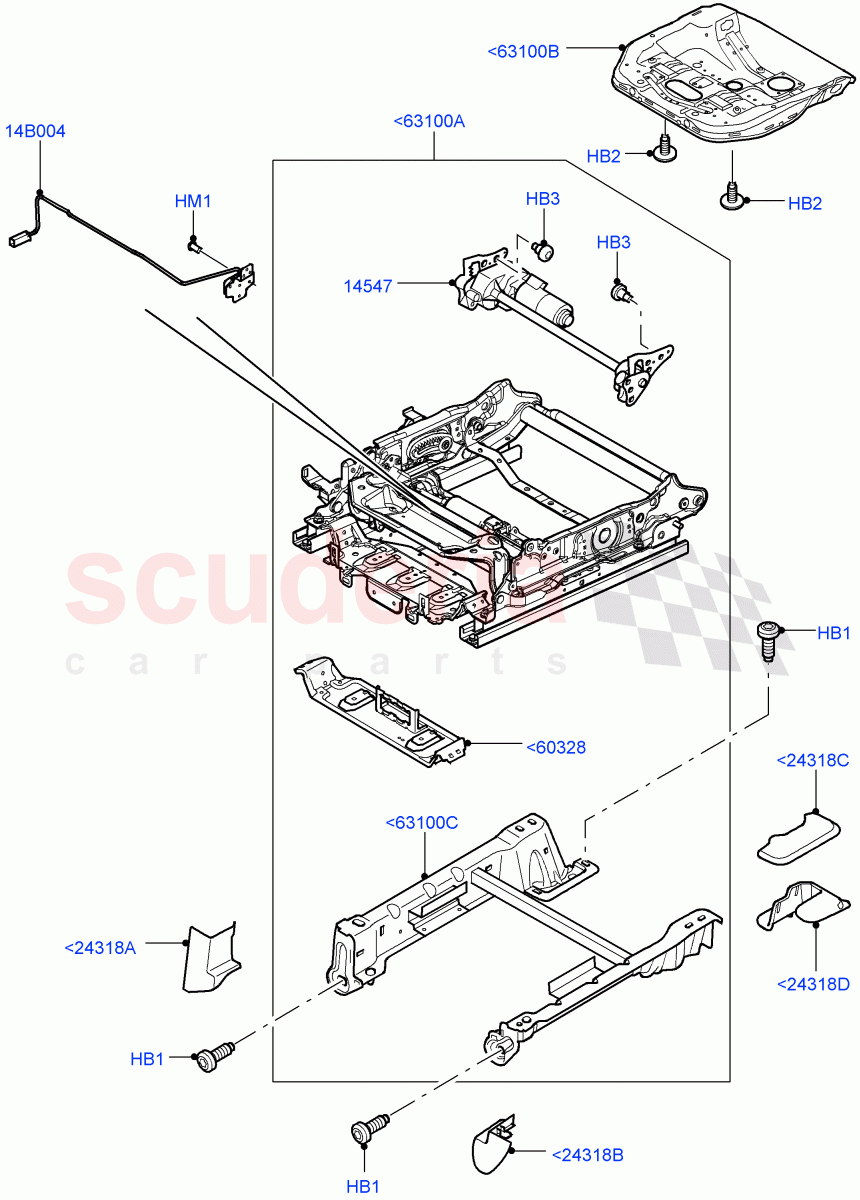

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BTR2710	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500220	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500300	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYQ500030	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HHL500150	MOTOR - SEAT ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HFD500090	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YDB500380	SENSOR - BODY WEIGHT - AIRBAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HJX500042PVJ	MOULDING - SEAT VALANCE	Enquire	To Order
	LR008687	MOULDING - SEAT VALANCE	Enquire	To Order
	LR016502	MOULDING - SEAT VALANCE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HJX500062PVJ	MOULDING - SEAT VALANCE	Enquire	To Order
	LR008688	MOULDING - SEAT VALANCE	Enquire	To Order
	LR016503	MOULDING - SEAT VALANCE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HJX500082PVJ	MOULDING - SEAT VALANCE	Enquire	To Order
	LR008601	MOULDING - SEAT VALANCE	Enquire	To Order
	LR016546	MOULDING - SEAT VALANCE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HJX500102PVJ	MOULDING - SEAT VALANCE	Enquire	To Order
	LR008602	MOULDING - SEAT VALANCE	Enquire	To Order
	LR016547	MOULDING - SEAT VALANCE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015516	FRAME	Enquire	To Order
	LR013359	FRAME	Enquire	To Order
	LR013360	FRAME	Enquire	To Order

...and 12 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HFF500012	FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HHE500020	FRAME	Enquire	To Order
	HHE500030	FRAME	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<24318A	HJX500042PVJ	MOULDING - SEAT VALANCE	HJX500042PVJ MOULDING - SEAT VALANCE Int Ebony Carpet / RH, Front Outer / From: AA000001	-	1	Enquire
<24318A	LR008687	MOULDING - SEAT VALANCE	LR008687 MOULDING - SEAT VALANCE Interior Nutmeg Carpet - LR / RH, Front Outer / From: AA000001	-	1	Enquire
<24318A	LR016502	MOULDING - SEAT VALANCE	LR016502 MOULDING - SEAT VALANCE Interior Ocean Carpet / RH, Front Outer / From: AA000001	-	1	Enquire
<24318A	LR016504	MOULDING - SEAT VALANCE	LR016504 MOULDING - SEAT VALANCE Interior Ocean Carpet / LH, Front Outer / From: AA000001	-	1	Enquire
<24318A	HJX500052PVJ	MOULDING - SEAT VALANCE	HJX500052PVJ MOULDING - SEAT VALANCE Int Ebony Carpet / LH, Front Outer / From: AA000001	-	1	Enquire
<24318A	LR008689	MOULDING - SEAT VALANCE	LR008689 MOULDING - SEAT VALANCE Interior Nutmeg Carpet - LR / LH, Front Outer / From: AA000001	-	1	Enquire
<24318B	HJX500062PVJ	MOULDING - SEAT VALANCE	HJX500062PVJ MOULDING - SEAT VALANCE Int Ebony Carpet / RH, Front Inner / From: AA000001	-	1	Enquire
<24318B	LR008688	MOULDING - SEAT VALANCE	LR008688 MOULDING - SEAT VALANCE Interior Nutmeg Carpet - LR / RH, Front Inner / From: AA000001	-	1	Enquire
<24318B	LR016503	MOULDING - SEAT VALANCE	LR016503 MOULDING - SEAT VALANCE Interior Ocean Carpet / RH, Front Inner / From: AA000001	-	1	Enquire
<24318B	LR016505	MOULDING - SEAT VALANCE	LR016505 MOULDING - SEAT VALANCE Interior Ocean Carpet / LH, Front Inner / From: AA000001	-	1	Enquire
<24318B	HJX500072PVJ	MOULDING - SEAT VALANCE	HJX500072PVJ MOULDING - SEAT VALANCE Int Ebony Carpet / LH, Front Inner / From: AA000001	-	1	Enquire
<24318B	LR008690	MOULDING - SEAT VALANCE	LR008690 MOULDING - SEAT VALANCE Interior Nutmeg Carpet - LR / LH, Front Inner / From: AA000001	-	1	Enquire
<24318C	HJX500082PVJ	MOULDING - SEAT VALANCE	HJX500082PVJ MOULDING - SEAT VALANCE Int Ebony Carpet / Rear Outer, RH Seat / From: AA000001	-	1	Enquire
<24318C	LR008601	MOULDING - SEAT VALANCE	LR008601 MOULDING - SEAT VALANCE Interior Nutmeg Carpet - LR / Rear Outer, RH Seat / From: AA000001	-	1	Enquire
<24318C	LR016546	MOULDING - SEAT VALANCE	LR016546 MOULDING - SEAT VALANCE Interior Ocean Carpet / Rear Outer, RH Seat / From: AA000001	-	1	Enquire
<24318C	HJX500092PVJ	MOULDING - SEAT VALANCE	HJX500092PVJ MOULDING - SEAT VALANCE Int Ebony Carpet / LH Seat, Rear Outer / From: AA000001	-	1	Enquire
<24318C	LR008669	MOULDING - SEAT VALANCE	LR008669 MOULDING - SEAT VALANCE Interior Nutmeg Carpet - LR / LH Seat, Rear Outer / From: AA000001	-	1	Enquire
<24318C	LR016548	MOULDING - SEAT VALANCE	LR016548 MOULDING - SEAT VALANCE Interior Ocean Carpet / LH Seat, Rear Outer / From: AA000001	-	1	Enquire
<24318D	HJX500102PVJ	MOULDING - SEAT VALANCE	HJX500102PVJ MOULDING - SEAT VALANCE Int Ebony Carpet / Inner, LH Seat, Rear / From: AA000001	-	1	Enquire
<24318D	LR008602	MOULDING - SEAT VALANCE	LR008602 MOULDING - SEAT VALANCE Interior Nutmeg Carpet - LR / Inner, LH Seat, Rear / From: AA000001	-	1	Enquire
<24318D	LR016547	MOULDING - SEAT VALANCE	LR016547 MOULDING - SEAT VALANCE Interior Ocean Carpet / Inner, LH Seat, Rear / From: AA000001	-	1	Enquire
<24318D	LR008670	MOULDING - SEAT VALANCE	LR008670 MOULDING - SEAT VALANCE Interior Nutmeg Carpet - LR / Inner, Rear, RH Seat / From: AA000001	-	1	Enquire
<24318D	HJX500112PVJ	MOULDING - SEAT VALANCE	HJX500112PVJ MOULDING - SEAT VALANCE Int Ebony Carpet / Inner, Rear, RH Seat / From: AA000001	-	1	Enquire
<24318D	LR016549	MOULDING - SEAT VALANCE	LR016549 MOULDING - SEAT VALANCE Interior Ocean Carpet / Inner, Rear, RH Seat / From: AA000001	-	1	Enquire
<60328	HFD500090	BRACKET	HFD500090 BRACKET With Relay Mounting Bracket / From: AA000001	-	1	Enquire
<63100A	LR015516	FRAME	LR015516 FRAME (+)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: AA238777	-	1	Enquire
<63100A	LR013359	FRAME	LR013359 FRAME (-)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: AA238777	-	1	Enquire
<63100A	LR013360	FRAME	LR013360 FRAME Electric Front Seat Adj Drv Memory, RHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: AA238777	-	1	Enquire
<63100A	LR013361	FRAME	LR013361 FRAME RHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: AA238777	-	1	Enquire
<63100A	LR013362	FRAME	LR013362 FRAME Electric Front Seat Adj Drv Memory, LHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: AA238777	-	1	Enquire
<63100A	LR023766	FRAME	LR023766 FRAME (+)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA238778 / To: CA730766	-	1	Enquire
<63100A	LR023767	FRAME	LR023767 FRAME (-)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA238778 / To: CA730766	-	1	Enquire
<63100A	LR023768	FRAME	LR023768 FRAME Electric Front Seat Adj Drv Memory, RHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA238778 / To: CA730766	-	1	Enquire
<63100A	LR023774	FRAME	LR023774 FRAME Electric Front Seat Adj Drv Memory, LHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA238778 / To: CA730766	-	1	Enquire
<63100A	LR023770	FRAME	LR023770 FRAME RHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA238778 / To: CA730766	-	1	Enquire
<63100A	LR032387	FRAME - SEAT	LR032387 FRAME - SEAT RHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: CA730767	-	1	Enquire
<63100A	LR032390	FRAME - SEAT	LR032390 FRAME - SEAT Electric Front Seat Adj Drv Memory, LHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: CA730767	-	1	Enquire
<63100A	LR032383	FRAME - SEAT	LR032383 FRAME - SEAT (+)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: CA730767	-	1	Enquire
<63100A	LR032385	FRAME - SEAT	LR032385 FRAME - SEAT (-)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: CA730767	-	1	Enquire
<63100A	LR032386	FRAME - SEAT	LR032386 FRAME - SEAT Electric Front Seat Adj Drv Memory, RHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: CA730767	-	1	Enquire
<63100B	HFF500012	FRAME	HFF500012 FRAME Not For Use With NAS Passenger Seat / From: AA000001	-	2	Enquire
<63100C	HHE500020	FRAME	HHE500020 FRAME RH / From: AA000001	-	1	Enquire
<63100C	HHE500030	FRAME	HHE500030 FRAME LH / From: AA000001	-	1	Enquire
HB1	BTR2710	BOLT	BTR2710 BOLT M10 X 1.5, Torx / From: AA000001	-	2	Enquire
HB2	HYG500220	BOLT	HYG500220 BOLT M8 / From: AA000001	-	8	Enquire
HB3	HYG500300	BOLT	HYG500300 BOLT Support / From: AA000001	-	4	Enquire
HM1	HYQ500030	RIVET	HYQ500030 RIVET Rivet / From: AA000001	-	1	Enquire
14B004	YDB500380	SENSOR - BODY WEIGHT - AIRBAG	YDB500380 SENSOR - BODY WEIGHT - AIRBAG Seat Position Sensor - Driver Air Bag / From: AA000001	-	1	Enquire
14547	HHL500150	MOTOR - SEAT ADJUSTER	HHL500150 MOTOR - SEAT ADJUSTER For Drivers Side, Tilt Adjustment, With Cushion Tilt / From: AA000001	-	1	Enquire
