Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Fuel Lines (3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYP500100 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WYC500081 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
WYC100880 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
AWR6715 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
FS106257 Screw Enquire To Order
Photo Part No Description Price (each) Stock
FA106126 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR015422 HOSE - FUEL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR009705 ELEMENT - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR015980 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
WKU500150 SHIELD - FUEL TUBES Enquire To Order
Photo Part No Description Price (each) Stock
LR015395 TUBE Enquire To Order
LR015396 TUBE Enquire To Order
LR021659 TUBE Enquire To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015421 TUBE - FUEL RETURN Enquire To Order
LR030556 TUBE - FUEL RETURN Enquire To Order
LR015421 TUBE - FUEL RETURN Enquire To Order
Photo Part No Description Price (each) Stock
WKW500080 SENSOR - WATER DETECTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR017446 TUBE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR015416 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR010416 FILTER - FUEL Enquire To Order
LR045519 FILTER - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR015417 SHIELD Enquire To Order
LR031389 Shield - Fuel Tubes Enquire To Order
LR031785 SHIELD - FUEL TUBES Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WKU500090 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
WJP502390 TUBE - FUEL FEED Enquire To Order
LR028028 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
WJP501042 TUBE - FUEL FEED Enquire To Order
View All

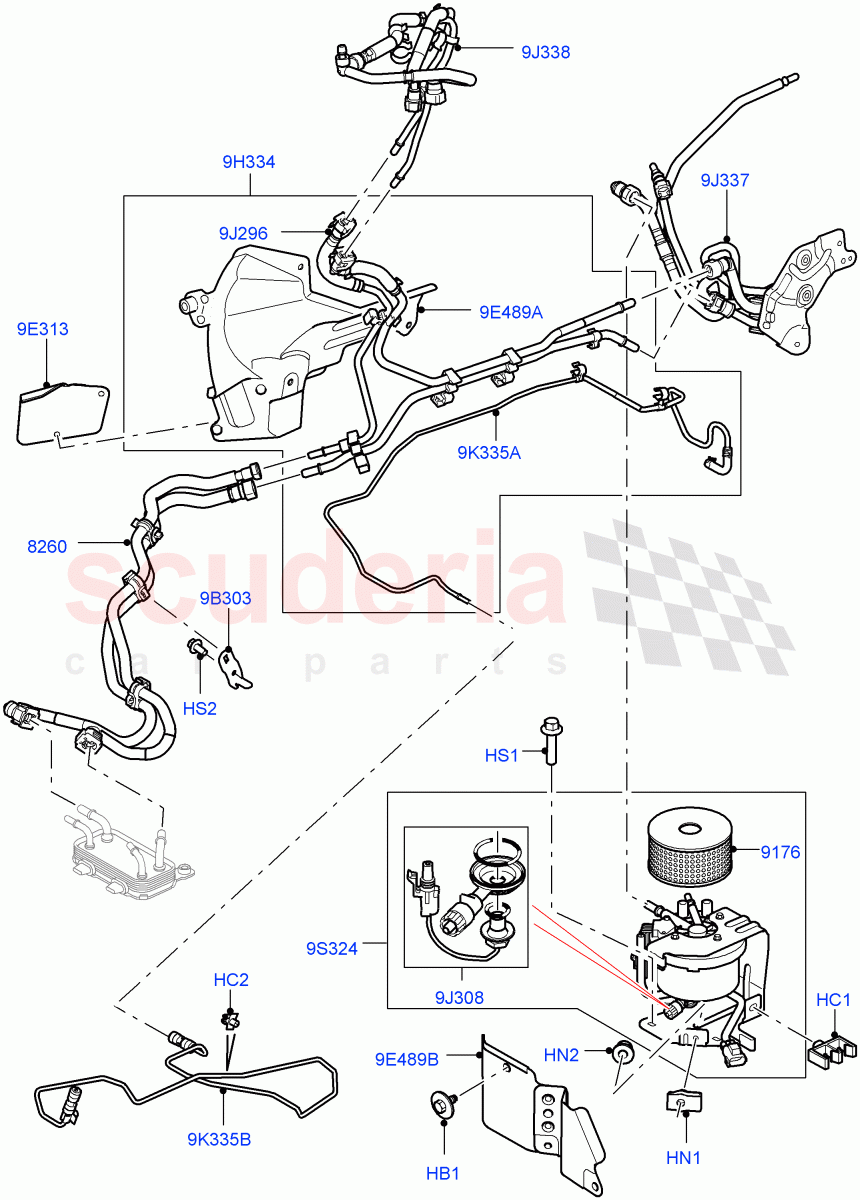

Fuel Lines (3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 WYP500100
SCREW
Hexagonal Head, M6 / From: AA000001 		- 3 Enquire
HC1 WYC500081
CLIP
Double, For 		- 1 Enquire
HC2 WYC100880
CLIP
With Fuel Fired Heater / Tube Support / From: AA000001 		- 2 Enquire
HN1 LR000053
NUT - FLANGED
M6 / From: AA000001 		- 2 Enquire
HN2 AWR6715
NUT - SPECIAL
M6 / From: AA000001 		- 2 Enquire
HS1 FS106257
Screw
M6 X 25MM / From: AA000001 		- 2 Enquire
HS2 FA106126
SCREW
Hexagonal Head, M6 x 12MM / From: AA000001 		- 1 Enquire
9B303 LR015980
BRACKET
From: AA000001 		- 1 Enquire
9E313 WKU500150
SHIELD - FUEL TUBES
From: AA000001 		- 1 Enquire
9E489A LR015417
SHIELD
Under Floor / From: AA000001 / To: BA291912 		- 1 Enquire
9E489A LR031389
Shield - Fuel Tubes
Under Floor / From: BA291913 / To: BA298062 		- 1 Enquire
9E489A LR031785
SHIELD - FUEL TUBES
Under Floor / From: BA298063 / To: BA999999 		- 1 Enquire
9E489A LR030555
SHIELD - FUEL TUBES
8 Speed Auto Trans ZF 8HP70 4WD / Under Floor / From: CA000001 / To: DA800464 		- 1 Enquire
9E489A LR031785
SHIELD - FUEL TUBES
6 Speed Auto Transmission ZF 6HP28 / Under Floor / From: CA000001 / To: DA800464 		- 1 Enquire
9E489A LR047202
SHIELD - FUEL TUBES
6 Speed Auto Transmission ZF 6HP28 / Under Floor / From: DA800465 		- 1 Enquire
9E489A LR047211
SHIELD - FUEL TUBES
8 Speed Auto Trans ZF 8HP70 4WD / Under Floor / From: DA800465 		- 1 Enquire
9E489B WKU500090
SHIELD
From: AA000001 		- 1 Enquire
9H334 LR015395
TUBE
With Fuel Fired Heater / Return, Supply, Under Floor / From: AA000001 / To: AA237069 		- 1 Enquire
9H334 LR015396
TUBE
With Fresh Air Heater / Return, Supply, Under Floor / From: AA000001 / To: BA289504 		- 1 Enquire
9H334 LR021659
TUBE
With Fuel Fired Heater / Return, Supply, Under Floor / From: AA237070 / To: BA289504 		- 1 Enquire
9H334 LR031388
TUBE - FUEL
With Fuel Fired Heater / Return, Supply, Under Floor / From: BA289505 / To: BA296395 		- 1 Enquire
9H334 LR031390
TUBE - FUEL RETURN
With Fresh Air Heater / Return, Supply, Under Floor / From: BA289505 / To: BA296395 		- 1 Enquire
9H334 LR031786
TUBE - FUEL
With Fuel Fired Heater / Return, Supply, Under Floor / From: BA296396 / To: BA999999 		- 1 Enquire
9H334 LR031787
TUBE - FUEL
With Fresh Air Heater / Return, Supply, Under Floor / From: BA296396 / To: BA999999 		- 1 Enquire
9H334 LR031786
TUBE - FUEL
6 Speed Auto Transmission ZF 6HP28, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA000001 / To: CA757931 		- 1 Enquire
9H334 LR031787
TUBE - FUEL
6 Speed Auto Transmission ZF 6HP28, With Fresh Air Heater / Return, Supply, Under Floor / From: CA000001 / To: CA757931 		- 1 Enquire
9H334 LR029586
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA000001 / To: CA757931 		- 1 Enquire
9H334 LR029585
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fresh Air Heater / Return, Supply, Under Floor / From: CA000001 / To: CA757931 		- 1 Enquire
9H334 LR043391
TUBE - FUEL
6 Speed Auto Transmission ZF 6HP28, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA757932 / To: DA800464 		- 1 Enquire
9H334 LR043406
TUBE - FUEL
6 Speed Auto Transmission ZF 6HP28, With Fresh Air Heater / Return, Supply, Under Floor / From: CA757932 		- 1 Enquire
9H334 LR043407
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA757932 / To: DA800464 		- 1 Enquire
9H334 LR043409
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fresh Air Heater / Return, Supply, Under Floor / From: CA757932 / To: DA800464 		- 1 Enquire
9H334 LR047204
TUBE - FUEL
6 Speed Auto Transmission ZF 6HP28, With Fuel Fired Heater / Return, Supply, Under Floor / From: DA800465 		- 1 Enquire
9H334 LR047212
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fuel Fired Heater / Return, Supply, Under Floor / From: DA800465 		- 1 Enquire
9H334 LR047213
TUBE - FUEL
8 Speed Auto Trans ZF 8HP70 4WD, With Fresh Air Heater / Return, Supply, Under Floor / From: DA800465 		- 1 Enquire
9J296 LR015421
TUBE - FUEL RETURN
Under Floor / From: AA000001 / To: BA999999 		- 1 Enquire
9J296 LR030556
TUBE - FUEL RETURN
8 Speed Auto Trans ZF 8HP70 4WD / Under Floor / From: CA000001 		- 1 Enquire
9J296 LR015421
TUBE - FUEL RETURN
6 Speed Auto Transmission ZF 6HP28 / Under Floor / From: CA000001 		- 1 Enquire
9J308 WKW500080
SENSOR - WATER DETECTOR
Drain, Sensor - Water Detector, Service Kit / From: AA000001 		- 1 Enquire
9J337 LR017446
TUBE - FUEL VAPOUR
From Fuel Filter To Under Floor Pipes, Return, Supply / From: AA000001 		- 1 Enquire
9J338 LR015416
TUBE
Return, Supply, To Engine / From: AA000001 		- 1 Enquire
9K335A WJP502390
TUBE - FUEL FEED
With Fuel Fired Heater / Supply / From: AA000001 / To: AA237069 		- 1 Enquire
9K335A LR028028
PIPE - FUEL
With Fuel Fired Heater / Supply / From: AA237070 		- 1 Enquire
9K335B WJP501042
TUBE - FUEL FEED
With Fuel Fired Heater / Feed, To Fuel Fired Heater / From: AA000001 		- 1 Enquire
9S324 LR010416
FILTER - FUEL
From: AA000001 / To: DA795670 		- 1 Enquire
9S324 LR045519
FILTER - FUEL
From: DA795671 		- 1 Enquire
8260 LR015422
HOSE - FUEL COOLER
For Fuel Cooler / From: AA000001 		- 1 Enquire
9176 LR009705
ELEMENT - FUEL FILTER
Filter / From: AA000001 		- 1 Enquire
