Fuel Cooler Assembly (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Fuel Cooler Assembly (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108167 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS106126 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
PIB500052 COOLER - FUEL Enquire To Order
LR031827 COOLER - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR016639 COOLER - FUEL Enquire To Order
View All

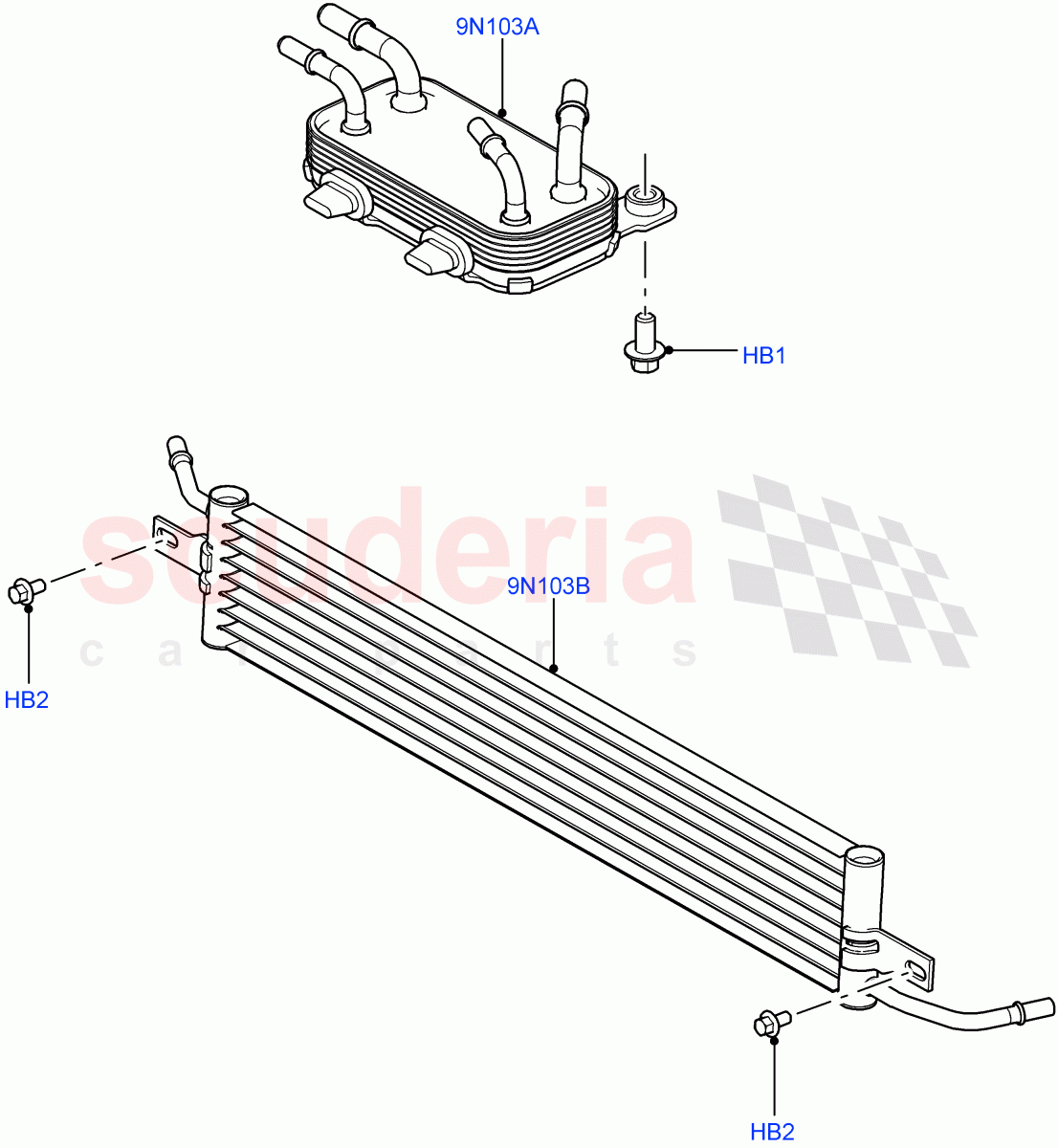

Fuel Cooler Assembly (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108167
SCREW
M8 X 16MM / From: AA000001 		- 1 Enquire
HB2 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: AA000001 		- 2 Enquire
9N103A PIB500052
COOLER - FUEL
From: AA000001 / To: BA700265 		- 1 Enquire
9N103A LR031827
COOLER - FUEL
From: BA700266 		- 1 Enquire
9N103B LR016639
COOLER - FUEL
Front / From: AA000001 		- 1 Enquire
