Rear Exhaust System (3.0 V6 Diesel, Proconve L6 Emissions, Stage V Plus Dpf, L6 Diesel Emissions)...

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (3.0 V6 Diesel, Proconve L6 Emissions, Stage V Plus DPF, L6 Diesel Emissions)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.23 IN STOCK
Photo Part No Description Price (each) Stock
RYH500170 NUT - ADJUSTING SCREW $1.92 IN STOCK
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
LR015362 MUFFLER - FRONT $888.43 To Order
LR044196 MUFFLER - FRONT $1,141.71 To Order
LR015362 MUFFLER - FRONT $888.43 To Order
Photo Part No Description Price (each) Stock
LR015378 SILENCER $431.13 To Order
LR019719 SILENCER $664.19 To Order
LR044190 SILENCER $378.54 To Order
Photo Part No Description Price (each) Stock
LR015380 SILENCER $431.13 To Order
LR019720 SILENCER $664.19 To Order
LR044191 SILENCER $378.54 To Order
Photo Part No Description Price (each) Stock
LR015372 CLAMP - EXHAUST $79.69 To Order
WCL500030 CLAMP - EXHAUST $81.53 To Order
LR048120 CLAMP - EXHAUST $147.51 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
KVU500320 BRACKET - EXHAUST PIPE MOUNTING $19.88 To Order
Photo Part No Description Price (each) Stock
WCM500120 GASKET - EXHAUST PIPE $11.97 IN STOCK
Photo Part No Description Price (each) Stock
LR019121 FINISHER - EXHAUST $455.68 To Order
LR019122 FINISHER - EXHAUST $455.68 To Order
LR026248 FINISHER - EXHAUST $555.37 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR050947 PIPE - EXHAUST $583.44 To Order
Photo Part No Description Price (each) Stock
LR050948 PIPE - EXHAUST $533.00 To Order
Photo Part No Description Price (each) Stock
LR017444 INSULATOR - RUBBER $25.10 To Order
Photo Part No Description Price (each) Stock
LR014155 INSULATOR - RUBBER $36.35 To Order
Photo Part No Description Price (each) Stock
WCS000150 INSULATOR - RUBBER $22.76 To Order
View All

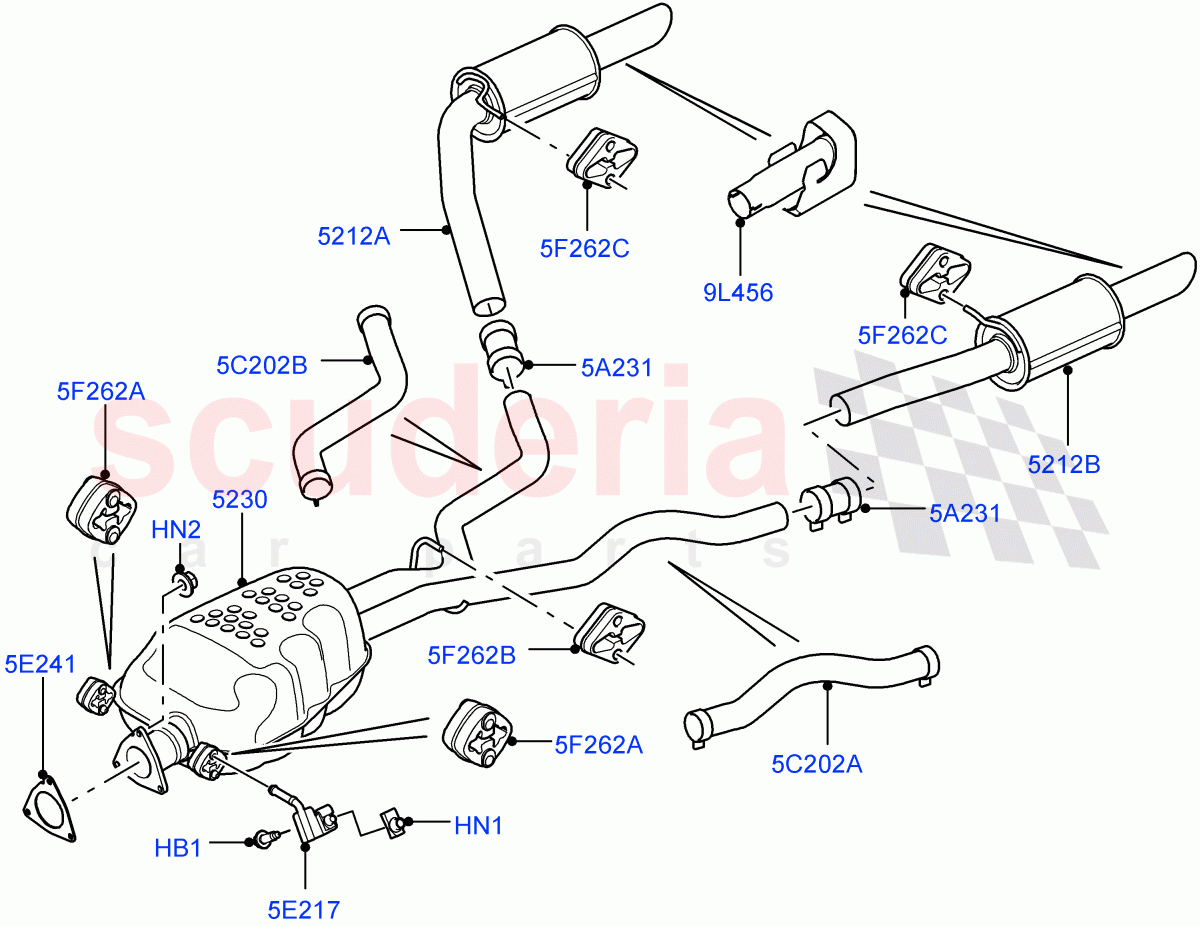

Rear Exhaust System (3.0 V6 Diesel, Proconve L6 Emissions, Stage V Plus DPF, L6 Diesel Emissions) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: AA000001
IN STOCK 		$2.23 1
HN1 RYH500170
NUT - ADJUSTING SCREW
M8 X 1.25, Nut "U" Spring / From: AA000001
IN STOCK 		$1.92 1
HN2 FX108046
NUT - LOCKING
Centre, M8 / From: AA000001
IN STOCK 		$0.41 3
5A231 LR015372
CLAMP - EXHAUST
60MM, Rear / From: AA000001 / To: DA770940 		$79.69 2
5A231 WCL500030
CLAMP - EXHAUST
55MM, Rear / From: DA770941 		$81.53 2
5A231 LR048120
CLAMP - EXHAUST
LH, 55-60MM Adaptor / From: AA000001 		$147.51 1
5A231 LR048121
CLAMP - EXHAUST
RH, 55-60MM Adaptor / From: AA000001 		$147.51 1
5C202A LR050947
PIPE - EXHAUST
LH, 55-60MM Adaptor / From: AA000001 		$583.44 1
5C202B LR050948
PIPE - EXHAUST
RH, 55-60MM Adaptor / From: AA000001 		$533.00 1
5E217 KVU500320
BRACKET - EXHAUST PIPE MOUNTING
Centre / From: AA000001 		$19.88 1
5E241 WCM500120
GASKET - EXHAUST PIPE
Centre / From: AA000001
IN STOCK 		$11.97 1
5F262A LR017444
INSULATOR - RUBBER
Centre / From: AA000001 		$25.10 2
5F262B LR014155
INSULATOR - RUBBER
From: AA000001 		$36.35 1
5F262C WCS000150
INSULATOR - RUBBER
Rear / From: AA000001 		$22.76 2
9L456 LR019121
FINISHER - EXHAUST
With Body Kit Petrol / RH, Rear / From: AA000001 / To: BA270632 		$455.68 1
9L456 LR019122
FINISHER - EXHAUST
With Body Kit Petrol / LH, Rear / From: AA000001 / To: BA270632 		$455.68 1
9L456 LR026248
FINISHER - EXHAUST
With Body Kit Petrol / RH, Rear / From: BA270633 / To: BA706981 		$555.37 1
9L456 LR032799
FINISHER - EXHAUST
With Body Kit Diesel / RH, Rear / From: BA706982 		$549.01 1
9L456 LR026252
FINISHER - EXHAUST
With Body Kit Diesel / LH, Rear / From: BA270633 / To: BA706981 		$555.37 1
9L456 LR032802
FINISHER - EXHAUST
With Body Kit Diesel / LH, Rear / From: BA706982 		$502.81 1
5212A LR015378
SILENCER
Less Body Kit / RH, 60MM, Rear / From: AA000001 / To: DA770940 		$431.13 1
5212A LR019719
SILENCER
With Body Kit Diesel / RH, Rear / From: AA000001 		$664.19 1
5212A LR044190
SILENCER
Less Body Kit / RH, 55MM, Rear / From: DA770941 		$378.54 1
5212B LR015380
SILENCER
Less Body Kit / LH, 60MM, Rear / From: AA000001 / To: DA770940 		$431.13 1
5212B LR019720
SILENCER
With Body Kit Diesel / LH, Rear / From: AA000001 		$664.19 1
5212B LR044191
SILENCER
Less Body Kit / LH, 55MM, Rear / From: DA770941 		$378.54 1
5230 LR015362
MUFFLER - FRONT
60MM, Centre / From: AA000001 / To: DA770940 		$888.43 1
5230 LR044196
MUFFLER - FRONT
55MM, Centre / From: DA770941 		$1,141.71 1
5230 LR015362
MUFFLER - FRONT
With Body Kit Diesel / 60MM, Centre / From: AA000001 		$888.43 1
