Rear Exhaust System (3.0 V6 Diesel, Euro Stage 4 Emissions) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (3.0 V6 Diesel, Euro Stage 4 Emissions) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.23 IN STOCK
Photo Part No Description Price (each) Stock
RYH500170 NUT - ADJUSTING SCREW $1.92 IN STOCK
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
LR021636 MUFFLER - FRONT $887.99 To Order
LR044197 MUFFLER - FRONT $1,138.75 To Order
Photo Part No Description Price (each) Stock
LR018409 SILENCER $671.80 To Order
LR019717 SILENCER $663.99 To Order
LR044194 SILENCER $377.22 To Order
Photo Part No Description Price (each) Stock
LR018410 SILENCER $671.80 To Order
LR019718 SILENCER $663.99 To Order
LR044195 SILENCER $422.53 To Order
Photo Part No Description Price (each) Stock
LR015372 CLAMP - EXHAUST $79.69 To Order
WCL500030 CLAMP - EXHAUST $81.53 To Order
LR048120 CLAMP - EXHAUST $147.51 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
KVU500320 BRACKET - EXHAUST PIPE MOUNTING $19.88 To Order
Photo Part No Description Price (each) Stock
WCM500120 GASKET - EXHAUST PIPE $11.97 IN STOCK
Photo Part No Description Price (each) Stock
LR019119 FINISHER - EXHAUST $448.73 To Order
LR019120 FINISHER - EXHAUST $448.73 To Order
LR026245 FINISHER - EXHAUST $549.95 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR050949 PIPE - EXHAUST $533.00 To Order
Photo Part No Description Price (each) Stock
LR050950 PIPE - EXHAUST $533.00 To Order
Photo Part No Description Price (each) Stock
LR017444 INSULATOR - RUBBER $25.10 To Order
Photo Part No Description Price (each) Stock
LR014155 INSULATOR - RUBBER $36.35 To Order
Photo Part No Description Price (each) Stock
DBP7104 MOUNTING - RUBBER $8.12 To Order
View All

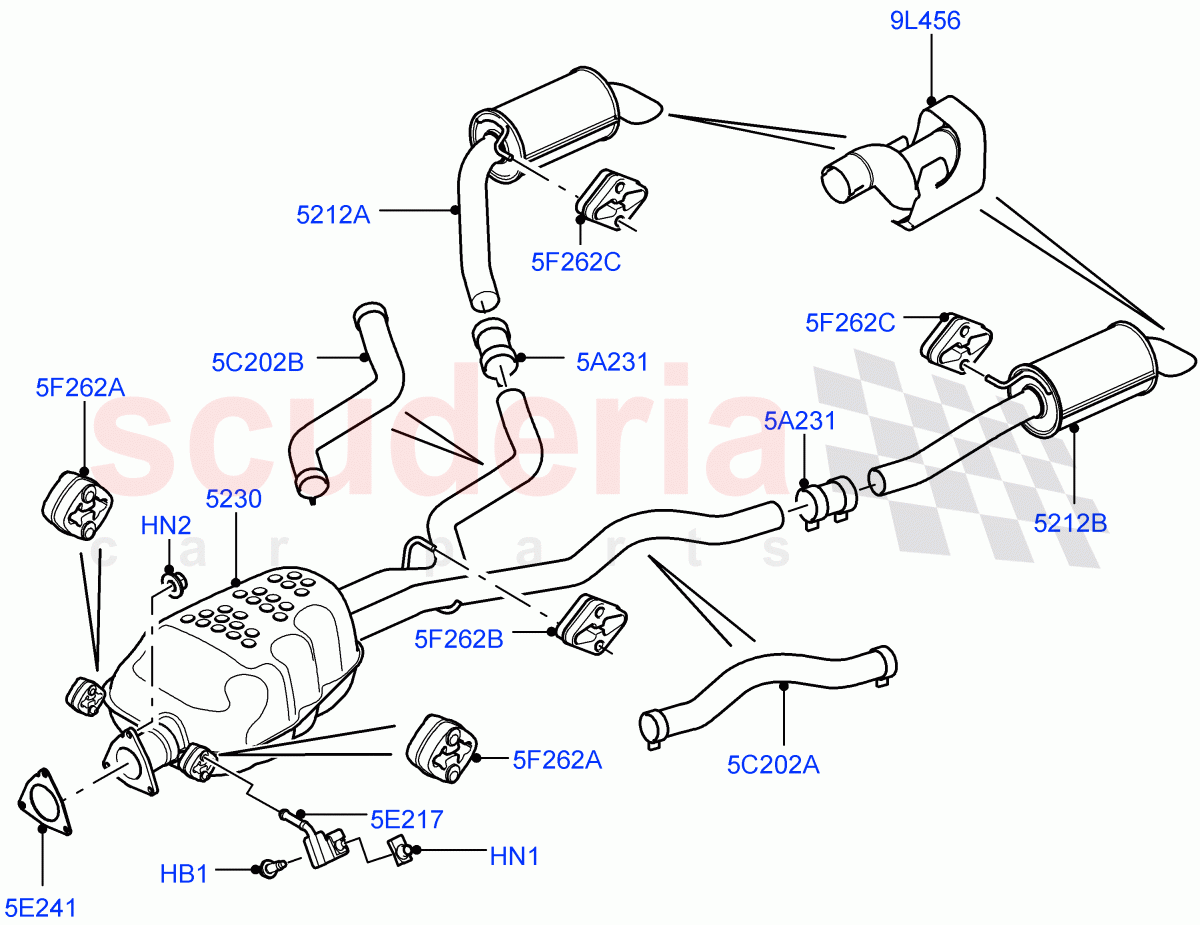

Rear Exhaust System (3.0 V6 Diesel, Euro Stage 4 Emissions) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: AA000001
IN STOCK 		$2.23 1
HN1 RYH500170
NUT - ADJUSTING SCREW
M8 X 1.25, Nut "U" Spring / From: AA000001
IN STOCK 		$1.92 1
HN2 FX108046
NUT - LOCKING
Centre, M8 / From: AA000001
IN STOCK 		$0.41 3
5A231 LR015372
CLAMP - EXHAUST
60MM, Rear / From: AA000001 / To: DA770940 		$79.69 2
5A231 WCL500030
CLAMP - EXHAUST
55MM, Rear / From: DA770941 		$81.53 2
5A231 LR048120
CLAMP - EXHAUST
LH, 55-60MM Adaptor / From: AA000001 		$147.51 1
5A231 LR048121
CLAMP - EXHAUST
RH, 55-60MM Adaptor / From: AA000001 		$147.51 1
5C202A LR050949
PIPE - EXHAUST
LH, 55-60MM Adaptor / From: AA000001 		$533.00 1
5C202B LR050950
PIPE - EXHAUST
RH, 55-60MM Adaptor / From: AA000001 		$533.00 1
5E217 KVU500320
BRACKET - EXHAUST PIPE MOUNTING
Centre / From: AA000001 		$19.88 1
5E241 WCM500120
GASKET - EXHAUST PIPE
Centre / From: AA000001
IN STOCK 		$11.97 1
5F262A LR017444
INSULATOR - RUBBER
Centre / From: AA000001 		$25.10 2
5F262B LR014155
INSULATOR - RUBBER
From: AA000001 		$36.35 1
5F262C DBP7104
MOUNTING - RUBBER
Rear / From: AA000001 		$8.12 2
9L456 LR019119
FINISHER - EXHAUST
With Body Kit Diesel / RH, Rear / From: AA000001 / To: BA270632 		$448.73 1
9L456 LR019120
FINISHER - EXHAUST
With Body Kit Diesel / LH, Rear / From: AA000001 / To: BA270632 		$448.73 1
9L456 LR026245
FINISHER - EXHAUST
With Body Kit Diesel / RH / From: BA270633 / To: BA706981 		$549.95 1
9L456 LR032797
FINISHER - EXHAUST
With Body Kit Diesel / RH / From: BA706982 		$577.91 1
9L456 LR026249
FINISHER - EXHAUST
With Body Kit Diesel / LH / From: BA270633 / To: BA706981 		$577.45 1
9L456 LR032800
FINISHER - EXHAUST
With Body Kit Diesel / LH / From: BA706982 		$585.39 1
5212A LR018409
SILENCER
Less Body Kit / RH, 60MM, Rear / From: AA000001 / To: DA770940 		$671.80 1
5212A LR019717
SILENCER
With Body Kit Diesel / RH, Rear / From: AA000001 		$663.99 1
5212A LR044194
SILENCER
Less Body Kit / RH, 55MM, Rear / From: DA770941 		$377.22 1
5212B LR018410
SILENCER
Less Body Kit / LH, 60MM, Rear / From: AA000001 / To: DA770940 		$671.80 1
5212B LR019718
SILENCER
With Body Kit Diesel / LH, Rear / From: AA000001 		$663.99 1
5212B LR044195
SILENCER
Less Body Kit / LH, 55MM, Rear / From: DA770941 		$422.53 1
5230 LR021636
MUFFLER - FRONT
60MM, Centre / From: AA000001 / To: DA770940 		$887.99 1
5230 LR044197
MUFFLER - FRONT
55MM, Centre / From: DA770941 		$1,138.75 1
