Vacuum Control And Air Injection (3.0 V6 Diesel, Rhd) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (3.0 V6 Diesel, RHD) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006708 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
4364422 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
1331241 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR018327 HOSE - VACUUM Enquire To Order
LR041269 HOSE - VACUUM Enquire To Order
LR051575 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR015439 BRACKET - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR096061 PUMP - VACUUM Enquire To Order
LR023936 PUMP - VACUUM Enquire To Order
LR077857 PUMP - VACUUM Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013619 GASKET - VACUUM PUMP Enquire To Order
LR077841 GASKET - VACUUM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR116598 SOLENOID - CSOV Enquire To Order
Photo Part No Description Price (each) Stock
LR020186 HOSE AND BRACKET Enquire To Order
LR027947 HOSE - VACUUM CONTROL HARNESS Enquire To Order
LR041270 HOSE - VACUUM CONTROL HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
LR013570 RESERVOIR - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR029415 CONNECTOR - 3-WAY Enquire To Order
Photo Part No Description Price (each) Stock
LR116599 SOLENOID - EGR Enquire To Order
Photo Part No Description Price (each) Stock
LR021929 SOLENOID - TURBO CONTROL Enquire To Order
LR076235 SOLENOID - TURBO CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR017433 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR015536 HOSE - VACUUM Enquire To Order
LR031682 HOSE - VACUUM Enquire To Order
LR046113 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR075844 HOSE - VACUUM Enquire To Order
View All

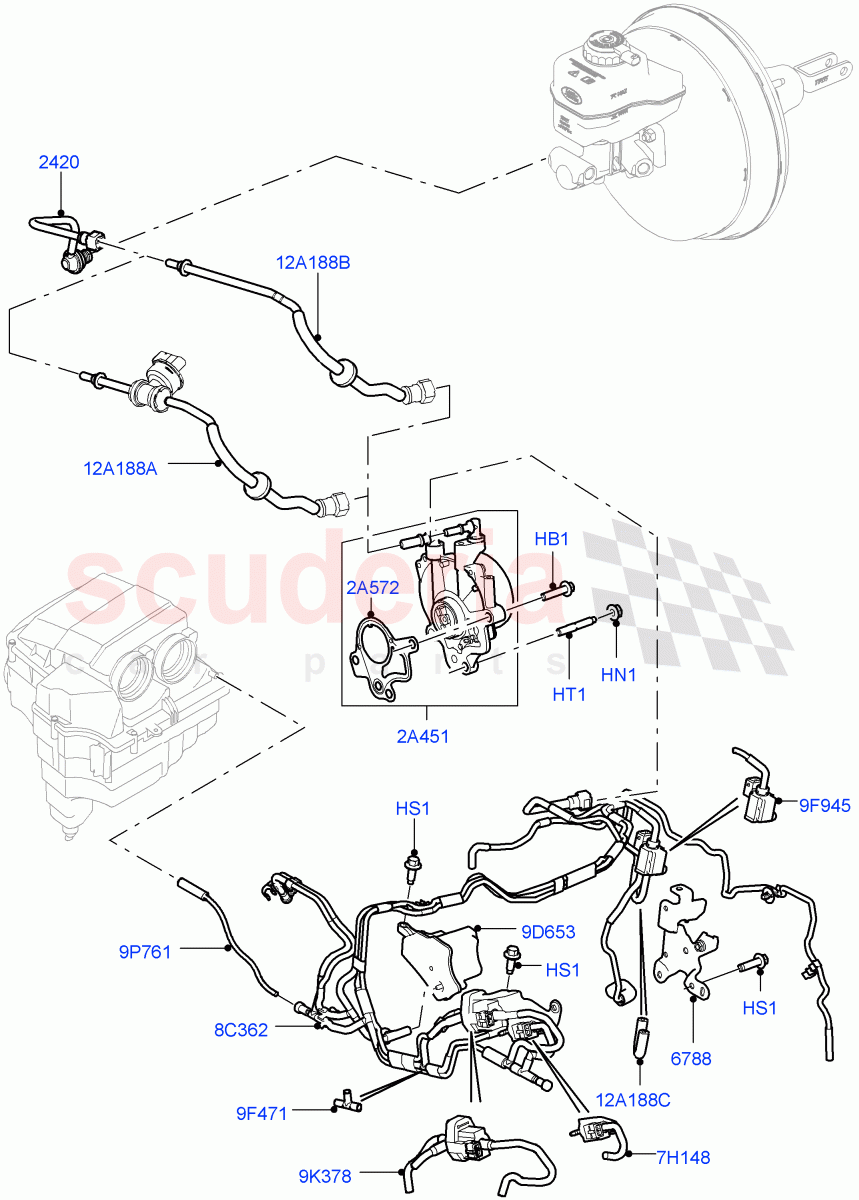

Vacuum Control And Air Injection (3.0 V6 Diesel, RHD) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR006708
BOLT
M8 x 55MM, Pump - Vacuum / From: AA000001 		- 2 Enquire
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: AA000001 		- 1 Enquire
HS1 4364422
SCREW
M6 X 16MM / From: AA000001 		- 6 Enquire
HT1 1331241
STUD
M8 X 15 + M8 X 35 / From: AA000001 		- 1 Enquire
2A451 LR096061
PUMP - VACUUM
From: AA000001 / To: BA274102 		- 1 Enquire
2A451 LR023936
PUMP - VACUUM
From: BA274103 / To: DA759857 		- 1 Enquire
2A451 LR077857
PUMP - VACUUM
From: DA759858 / To: DA798699 		- 1 Enquire
2A451 LR104350
PUMP - VACUUM
From: DA798700 		- 1 Enquire
2A572 LR013619
GASKET - VACUUM PUMP
From: AA000001 / To: DA759610 		- 1 Enquire
2A572 LR077841
GASKET - VACUUM PUMP
From: DA759611 		- 1 Enquire
7H148 LR116598
SOLENOID - CSOV
From: DA798700 		- 1 Enquire
8C362 LR020186
HOSE AND BRACKET
Engine Emission Control, Includes Valves / From: AA000001 / To: BA270643 		- 1 Enquire
8C362 LR027947
HOSE - VACUUM CONTROL HARNESS
Includes Valves, Vacuum Control Harness / From: BA270644 / To: CA999999 		- 1 Enquire
8C362 LR041270
HOSE - VACUUM CONTROL HARNESS
Includes Valves, Vacuum Control Harness / From: DA000001 		- 1 Enquire
9D653 LR013570
RESERVOIR - VACUUM
To Vacuum / From: AA000001 		- 1 Enquire
9F471 LR029415
CONNECTOR - 3-WAY
From: AA000001 		- 1 Enquire
9F945 LR116599
SOLENOID - EGR
From: DA798700 		- 1 Enquire
9K378 LR021929
SOLENOID - TURBO CONTROL
From: AA000001 / To: AA256675 		- 1 Enquire
9K378 LR076235
SOLENOID - TURBO CONTROL
From: AA256676 		- 1 Enquire
9P761 LR017433
HOSE - VACUUM
From: AA000001 		- 1 Enquire
12A188B LR015536
HOSE - VACUUM
Pump To Booster / From: AA000001 / To: CA999999 		- 1 Enquire
12A188B LR031682
HOSE - VACUUM
Pump To Booster / From: DA000001 / To: DA787598 		- 1 Enquire
12A188B LR046113
HOSE - VACUUM
Pump To Booster / From: DA787599 		- 1 Enquire
12A188C LR075844
HOSE - VACUUM
U-Type 		- 1 Enquire
2420 LR018327
HOSE - VACUUM
Brake Vacuum Booster / From: AA000001 / To: CA754565 		- 1 Enquire
2420 LR041269
HOSE - VACUUM
Brake Vacuum Booster / From: CA754566 / To: DA807889 		- 1 Enquire
2420 LR051575
HOSE - VACUUM
Brake Vacuum Booster / From: DA807890 		- 1 Enquire
6788 LR015439
BRACKET - HOSE
To Vacuum Hose / From: AA000001 		- 1 Enquire
