Emission Control - Crankcase (Engine Ventilation) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Emission Control - Crankcase (Engine Ventilation) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4364422 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
1337060 SEAL - OIL SEPARATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR013569 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR013287 SEPARATOR - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR013294 HOSE - OIL SEPARATOR Enquire To Order
LR032062 HOSE - OIL SEPARATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR013532 RESERVOIR - OIL SEPARATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR013531 PIPE - OIL SEPARATOR Enquire To Order
View All

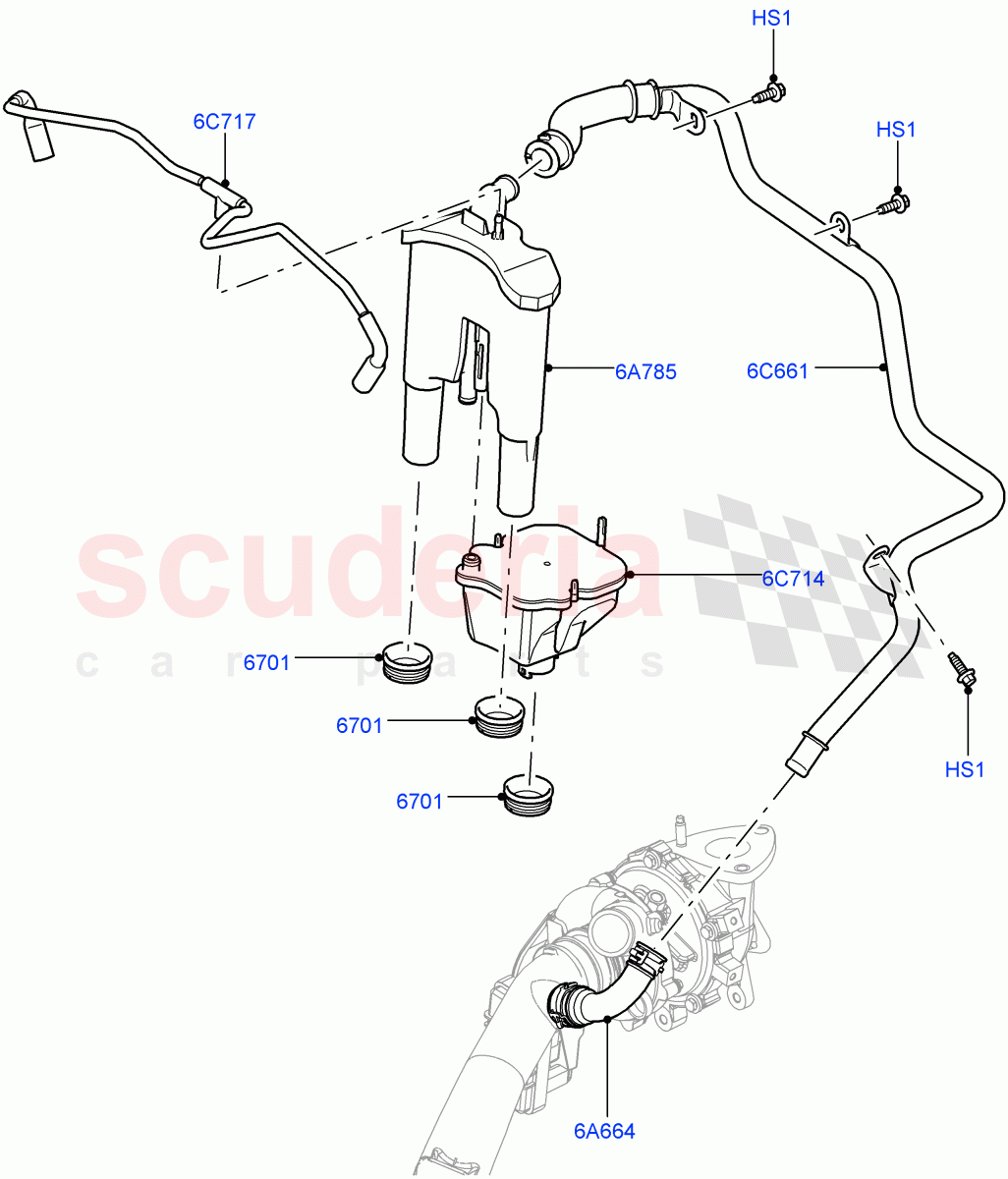

Emission Control - Crankcase (Engine Ventilation) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 4364422
SCREW
M6 X 16MM / From: AA000001 		- 3 Enquire
6A664 LR013569
HOSE
Lower, To Oil Separator / From: AA000001 		- 1 Enquire
6A785 LR013287
SEPARATOR - OIL
From: AA000001 		- 1 Enquire
6C661 LR013294
HOSE - OIL SEPARATOR
Main, To Oil Separator / From: AA000001 / To: BA999999 		- 1 Enquire
6C661 LR032062
HOSE - OIL SEPARATOR
Main, To Oil Separator / From: CA000001 		- 1 Enquire
6C714 LR013532
RESERVOIR - OIL SEPARATOR
To Oil Separator / From: AA000001 		- 1 Enquire
6C717 LR013531
PIPE - OIL SEPARATOR
To Oil Separator, Top / From: AA000001 		- 1 Enquire
6701 1337060
SEAL - OIL SEPARATOR
To Oil Separator / From: AA000001 		- 3 Enquire
