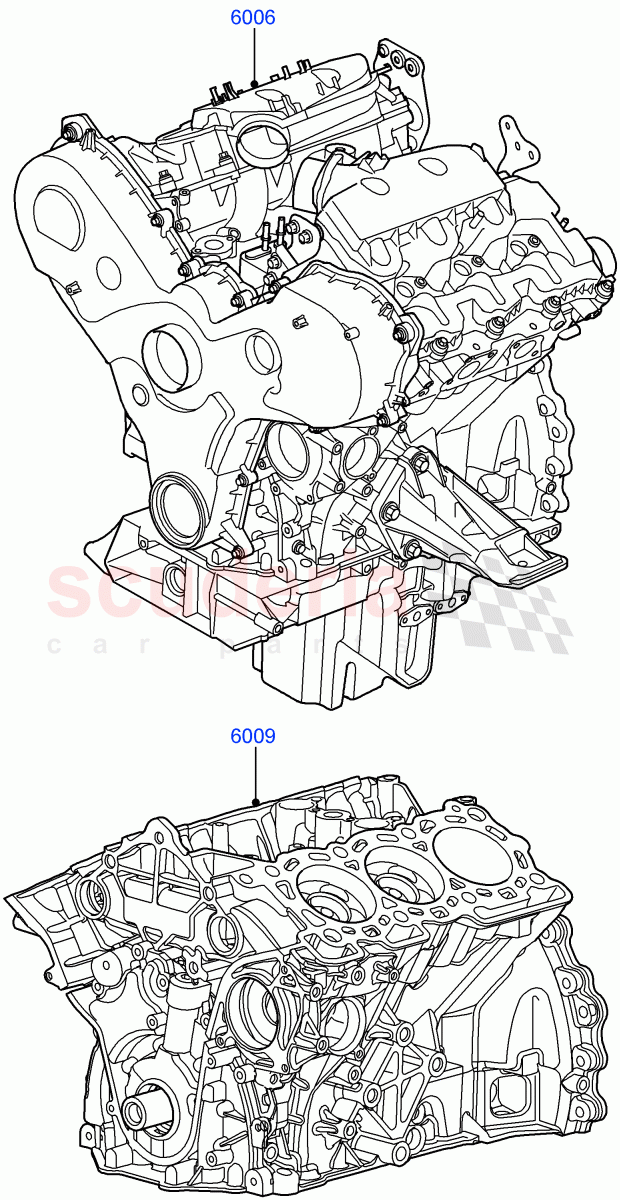

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6006	LR013047	ENGINE - STRIPPED	LR013047 ENGINE - STRIPPED For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial, New Part-Please Check For Reman Version, Please Order: Turbo Oil Drain Hose P/N LR044556, Gasket P/N LR013235 and Screw P/N RYG500160 / From: AA000001 / To: CA999999	$16,968.86	1
6006	LR036824	ENGINE - STRIPPED	LR036824 ENGINE - STRIPPED For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial, New Part-Please Check For Reman Version, Please Order: Turbo Oil Drain Hose P/N LR044556, Gasket P/N LR013235 and Screw P/N RYG500160 / From: DA000001	$14,309.71	1
6006	LR054388	ENGINE - STRIPPED	LR054388 ENGINE - STRIPPED For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial, Please Order: Turbo Oil Drain Hose P/N LR044556, Gasket P/N LR013235 and Screw P/N RYG500160, Remanufactured Part / From: AA000001	$9,249.10	1
6009	LR018030	ENGINE - SHORT BLOCK	LR018030 ENGINE - SHORT BLOCK From: AA000001 / To: CA999999	$8,584.84	1
6009	LR038168	ENGINE - SHORT BLOCK	LR038168 ENGINE - SHORT BLOCK 3.0L 24V DOHC V6 TC Diesel / From: DA000001	$7,834.07	1
