Name: Cylinder Head (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Cylinder Head (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Cylinder Head (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel...

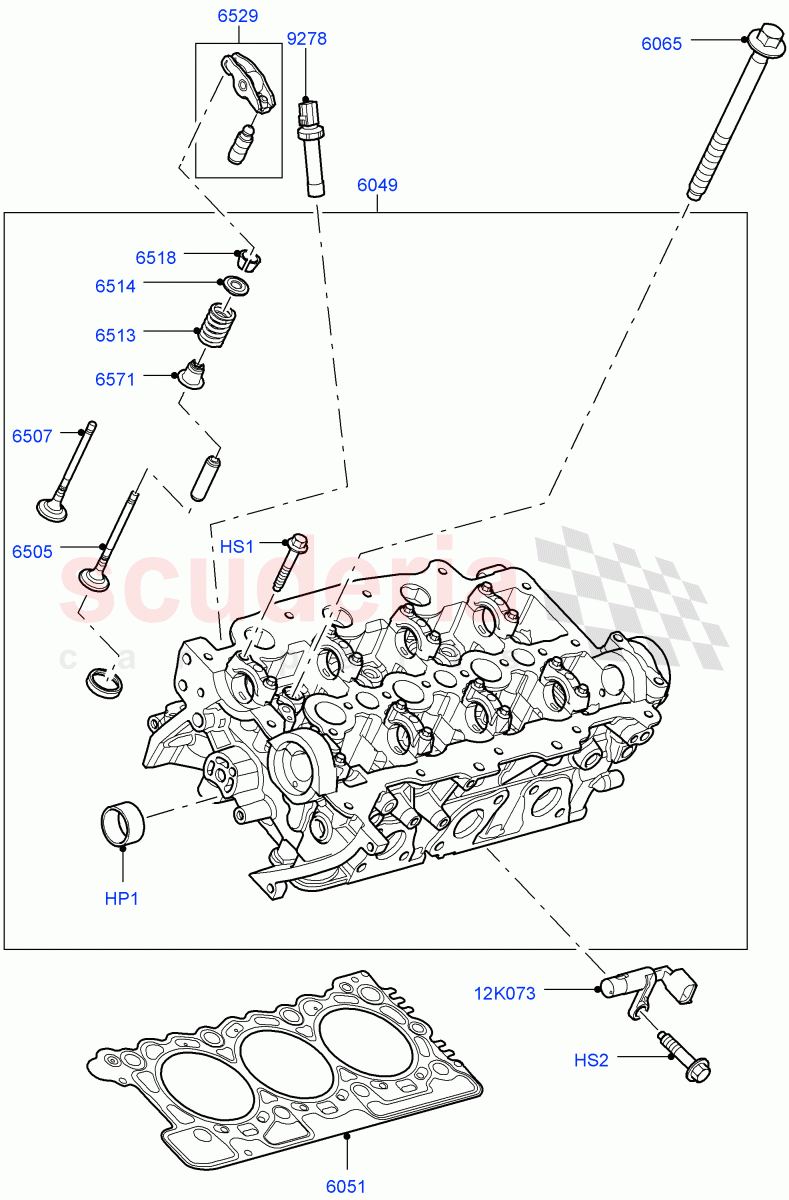

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1102774	PLUG - ENGINE	$6.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018831	SCREW	$3.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR014249	CYLINDER HEAD	$2,479.82	To Order
	LR014248	CYLINDER HEAD	$2,638.24	To Order
	LR083672	CYLINDER HEAD	$2,418.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013063	GASKET-CYLINDER HEAD	$96.69	To Order
	LR013066	GASKET - CYLINDER HEAD	$96.69	To Order
	LR013070	GASKET - CYLINDER HEAD	$96.69	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1331316	BOLT - CYLINDER HEAD	$4.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008130	VALVE - EXHAUST	$30.97	To Order

Photo	Part No	Description	Price (each)	Stock
	1311281	VALVE - INLET	$20.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006720	SPRING - VALVE	$7.10	To Order

Photo	Part No	Description	Price (each)	Stock
	1311283	RETAINER - VALVE SPRING	$3.69	To Order

Photo	Part No	Description	Price (each)	Stock
	1072051	COLLET - VALVE SPRING RETAINER	$7.06	To Order

Photo	Part No	Description	Price (each)	Stock
	1336545	ARM - FOLLOWER	$33.50	To Order

Photo	Part No	Description	Price (each)	Stock
	1311285	SEAL - VALVE STEM	$13.28	To Order

Photo	Part No	Description	Price (each)	Stock
	1316119	SWITCH - OIL PRESSURE	$27.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013458	SENSOR - CAMSHAFT POSITION	$296.38	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HP1	1102774	PLUG - ENGINE	1102774 PLUG - ENGINE 22MM / From: AA000001	$6.28	4
HS1	LR018831	SCREW IN STOCK	LR018831 SCREW M6 x 35MM / From: AA000001 IN STOCK	$3.12	36
HS2	RYG500220	SCREW IN STOCK	RYG500220 SCREW Camshaft Position Sensor, Hexagonal Head, M6 X 20MM / From: AA000001 IN STOCK	$3.31	2
12K073	LR013458	SENSOR - CAMSHAFT POSITION	LR013458 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: AA000001	$296.38	1
6049	LR014249	CYLINDER HEAD	LR014249 CYLINDER HEAD RH / From: AA000001	$2,479.82	1
6049	LR014248	CYLINDER HEAD	LR014248 CYLINDER HEAD LH / From: AA000001 / To: DA814631	$2,638.24	1
6049	LR083672	CYLINDER HEAD	LR083672 CYLINDER HEAD LH / From: DA814632	$2,418.97	1
6051	LR013063	GASKET-CYLINDER HEAD	LR013063 GASKET-CYLINDER HEAD Grade 2 / From: AA000001	$96.69	-
6051	LR013066	GASKET - CYLINDER HEAD	LR013066 GASKET - CYLINDER HEAD Grade 3 / From: AA000001	$96.69	-
6051	LR013070	GASKET - CYLINDER HEAD	LR013070 GASKET - CYLINDER HEAD Grade 4 / From: AA000001	$96.69	-
6051	LR013073	GASKET-CYLINDER HEAD	LR013073 GASKET-CYLINDER HEAD Grade 5 / From: AA000001	$96.69	-
6065	1331316	BOLT - CYLINDER HEAD	1331316 BOLT - CYLINDER HEAD M13 X 155 / From: AA000001	$4.30	16
6505	LR008130	VALVE - EXHAUST	LR008130 VALVE - EXHAUST From: AA000001	$30.97	12
6507	1311281	VALVE - INLET	1311281 VALVE - INLET From: AA000001	$20.62	12
6513	LR006720	SPRING - VALVE	LR006720 SPRING - VALVE From: AA000001	$7.10	24
6514	1311283	RETAINER - VALVE SPRING	1311283 RETAINER - VALVE SPRING From: AA000001	$3.69	24
6518	1072051	COLLET - VALVE SPRING RETAINER	1072051 COLLET - VALVE SPRING RETAINER From: AA000001	$7.06	48
6529	1336545	ARM - FOLLOWER	1336545 ARM - FOLLOWER From: AA000001	$33.50	24
6571	1311285	SEAL - VALVE STEM	1311285 SEAL - VALVE STEM From: AA000001	$13.28	24
9278	1316119	SWITCH - OIL PRESSURE	1316119 SWITCH - OIL PRESSURE From: AA000001	$27.59	1
