Transfer Drive Components (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Transfer Drive Components (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001)

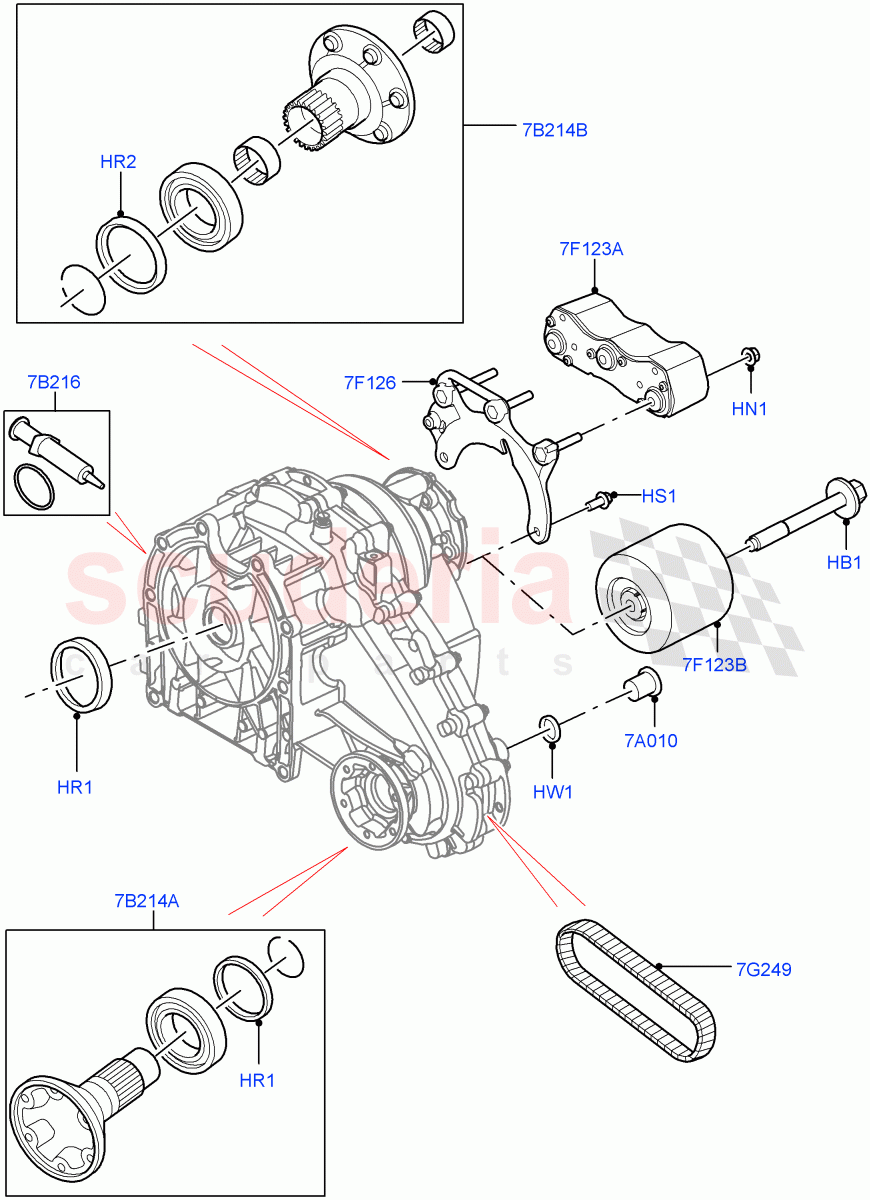

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR126162	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000048	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086041	SEAL - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086042	SEAL - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FA108202	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048842	WASHER - DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048841	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYX500050	KIT - GREASE AND ORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048332	BRACKET - DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044897	CHAIN - TRANSFER DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086059	FLANGE - PROPSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039528	KIT - TRANSFER BOX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR046648	DAMPER - VIBRATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122972	DAMPER - VIBRATION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR126162	BOLT - HEX.HEAD	LR126162 BOLT - HEX.HEAD 3.0L AJ20P6 Petrol High / Bolt And Washer, HEX Flange, M10 X 80MM / From: KA852707	-	1	Enquire
HN1	LR000048	NUT - HEX. - FLANGED	LR000048 NUT - HEX. - FLANGED 3.0L DOHC GDI SC V6 PETROL / M8 / From: HA000001 / To: KA852706	-	3	Enquire
HR1	LR086041	SEAL - SPECIAL	LR086041 SEAL - SPECIAL Seal / From: HA000001	-	1	Enquire
HR2	LR086042	SEAL - SPECIAL	LR086042 SEAL - SPECIAL Seal, Oil - Rear Output Flange / From: HA000001	-	1	Enquire
HS1	FA108202	SCREW	FA108202 SCREW 3.0L DOHC GDI SC V6 PETROL / Hexagonal Head, M8 X 20MM, Taptite / From: HA000001 / To: KA852706	-	3	Enquire
HW1	LR048842	WASHER - DRAIN PLUG	LR048842 WASHER - DRAIN PLUG Drain, FILLER, M18 / From: HA000001	-	2	Enquire
7A010	LR048841	PLUG - OIL DRAIN	LR048841 PLUG - OIL DRAIN Drain, FILLER, M18 / From: HA000001	-	2	Enquire
7B214A	LR086059	FLANGE - PROPSHAFT	LR086059 FLANGE - PROPSHAFT Front, Propshaft / From: HA000001	-	1	Enquire
7B214B	LR039528	KIT - TRANSFER BOX FLANGE	LR039528 KIT - TRANSFER BOX FLANGE Propshaft, Rear / From: HA000001	-	1	Enquire
7B216	IYX500050	KIT - GREASE AND ORING	IYX500050 KIT - GREASE AND ORING From: HA000001	-	1	Enquire
7F123A	LR046648	DAMPER - VIBRATION	LR046648 DAMPER - VIBRATION 3.0L DOHC GDI SC V6 PETROL / From: HA000001 / To: KA852706	-	1	Enquire
7F123B	LR122972	DAMPER - VIBRATION	LR122972 DAMPER - VIBRATION 3.0L DOHC GDI SC V6 PETROL / From: KA852707	-	1	Enquire
7F126	LR048332	BRACKET - DAMPER	LR048332 BRACKET - DAMPER 3.0L DOHC GDI SC V6 PETROL / From: HA000001 / To: KA852706	-	1	Enquire
7G249	LR044897	CHAIN - TRANSFER DRIVE	LR044897 CHAIN - TRANSFER DRIVE From: HA000001	-	1	Enquire
