Name: Transfer Drive Case (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001)
Rating: 4.1 (1 reviews)

Transfer Drive Case (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Transfer Drive Case (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FT110356	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082663	TRANSFER BOX	$5,352.19	To Order
	LR105963	TRANSFER BOX	$5,311.23	To Order
	LR117096	TRANSFER BOX	$4,416.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080753	TUBE - TRANSMISSION VENTILATION	$63.44	To Order
	LR080767	TUBE - BREATHER	$68.38	To Order
	LR082640	TUBE - TRANSMISSION VENTILATION	$51.49	To Order

...and 5 more part variants. See table on right for more details.

View All

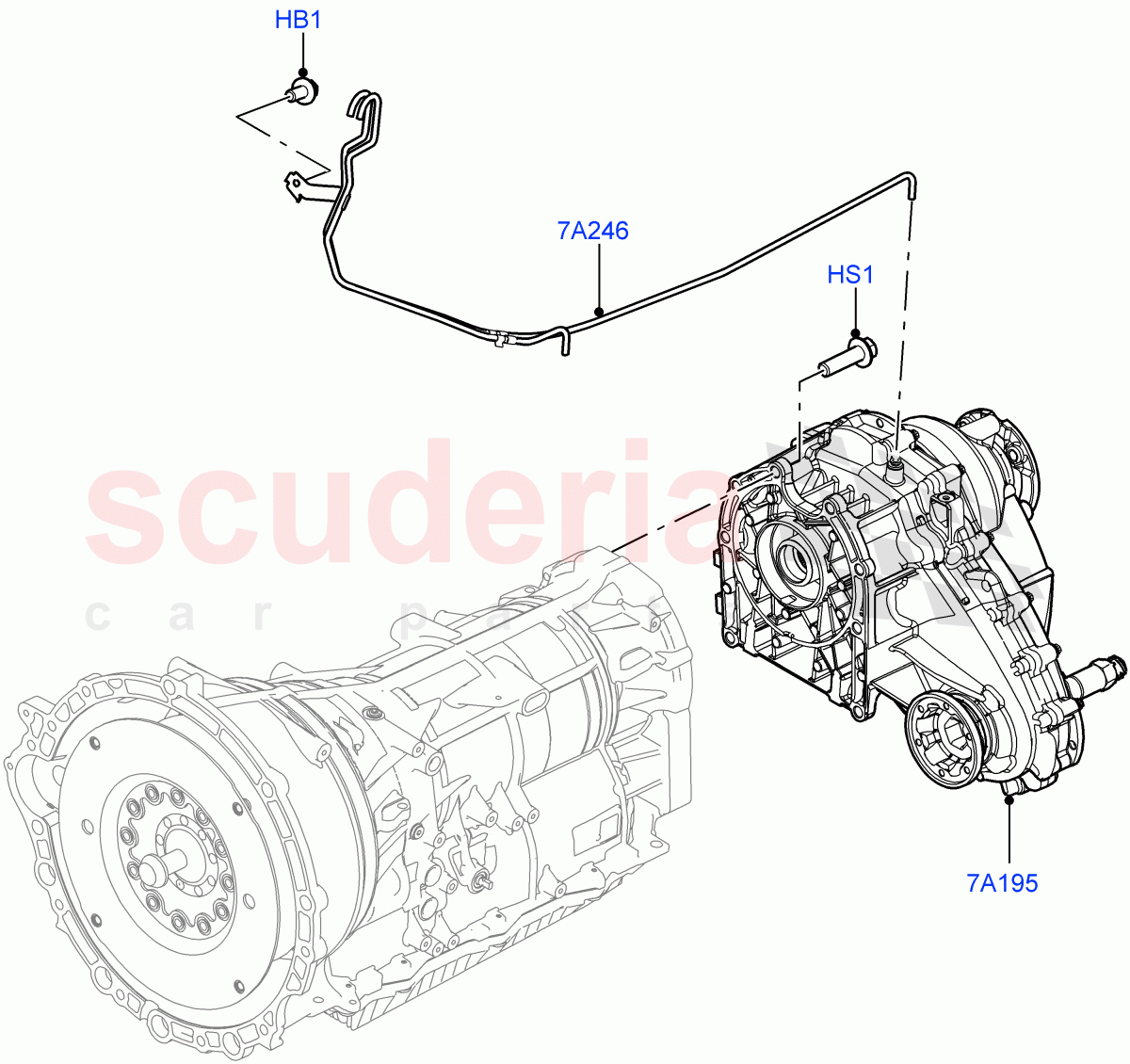

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Breather Pipe, Hexagonal Head, M6 x 12MM / From: HA000001 IN STOCK	$0.50	1
HS1	FT110356	SCREW	FT110356 SCREW Hexagonal Head, M10 x 35MM / From: HA000001	$2.31	8
7A195	LR082663	TRANSFER BOX	LR082663 TRANSFER BOX From: HA000001 / To: JA168768	$5,352.19	1
7A195	LR105963	TRANSFER BOX	LR105963 TRANSFER BOX From: JA168769 / To: JA801866	$5,311.23	1
7A195	LR117096	TRANSFER BOX	LR117096 TRANSFER BOX From: JA801867	$4,416.82	1
7A246	LR080753	TUBE - TRANSMISSION VENTILATION	LR080753 TUBE - TRANSMISSION VENTILATION 3.0 V6 Diesel / Gearbox, Includes Bracket, Transfer Box / From: HA000001	$63.44	1
7A246	LR080767	TUBE - BREATHER	LR080767 TUBE - BREATHER 5.0L OHC SGDI SC V8 Petrol - AJ133 / Gearbox, Transfer Box / From: HA000001	$68.38	1
7A246	LR082640	TUBE - TRANSMISSION VENTILATION	LR082640 TUBE - TRANSMISSION VENTILATION 2.0L I4 DSL HIGH DOHC AJ200 / Gearbox, Includes Bracket, Transfer Box / From: HA000001	$51.49	1
7A246	LR121397	TUBE - TRANSMISSION VENTILATION	LR121397 TUBE - TRANSMISSION VENTILATION 3.0L AJ20P6 Petrol High / Gearbox, Includes Bracket, Transfer Box / From: KA000001 / To: LA715826	$226.63	1
7A246	LR100477	TUBE - TRANSMISSION VENTILATION	LR100477 TUBE - TRANSMISSION VENTILATION 2.0L I4 High DOHC AJ200 Petrol / Gearbox, Includes Bracket, Transfer Box / From: JA000001 / To: MA768329	$229.75	1
7A246	LR137399	TUBE - TRANSMISSION VENTILATION	LR137399 TUBE - TRANSMISSION VENTILATION 3.0L AJ20P6 Petrol High / Gearbox, Includes Bracket, Transfer Box / From: LA715827 / To: MA768329	$46.69	1
7A246	LR144957	TUBE - TRANSMISSION VENTILATION	LR144957 TUBE - TRANSMISSION VENTILATION 2.0L I4 High DOHC AJ200 Petrol / Gearbox, Includes Bracket, Transfer Box / From: MA768330	$208.40	1
7A246	LR125278	TUBE - TRANSMISSION VENTILATION	LR125278 TUBE - TRANSMISSION VENTILATION 3.0L AJ20D6 Diesel High / Gearbox, Includes Bracket, Transfer Box / From: LA000001	$110.40	1
