Transmission Mounting (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Transmission Mounting (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG500200 BOLT $3.07 To Order
Photo Part No Description Price (each) Stock
LR072612 SCREW $2.63 To Order
Photo Part No Description Price (each) Stock
FT110356 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR119716 SUPPORT - TRANSMISSION CENTRE $484.05 To Order
Photo Part No Description Price (each) Stock
LR092039 INSULATOR - ENGINE SUPPORT $76.97 To Order
LR147073 INSULATOR - ENGINE SUPPORT $133.30 To Order
View All

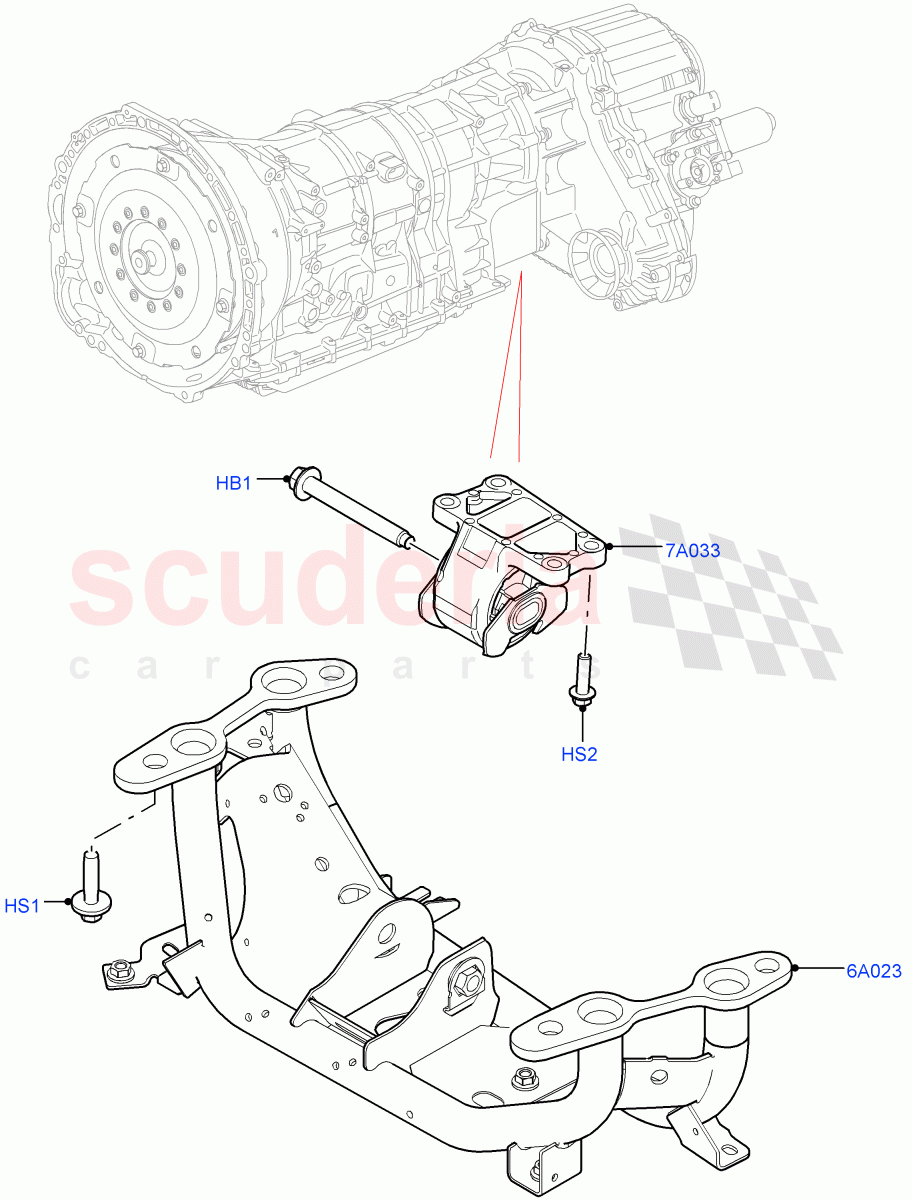

Transmission Mounting (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 KYG500200
BOLT
Hexagonal Head, M14 x 110MM / From: KA000001 		$3.07 1
HS1 LR072612
SCREW
Hexagonal Head, M12 X 45MM / From: KA000001 		$2.63 4
HS2 FT110356
SCREW
Hexagonal Head, M10 x 35MM / From: KA000001 		$2.31 4
6A023 LR119716
SUPPORT - TRANSMISSION CENTRE
From: KA000001 		$484.05 1
7A033 LR092039
INSULATOR - ENGINE SUPPORT
Transfer Box / From: KA000001 / To: LA999999 		$76.97 1
7A033 LR147073
INSULATOR - ENGINE SUPPORT
Transfer Box / From: MA000001 		$133.30 1
