Rear Door Lock Controls ((V) Toha999999)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Rear Door Lock Controls ((V) TOHA999999)

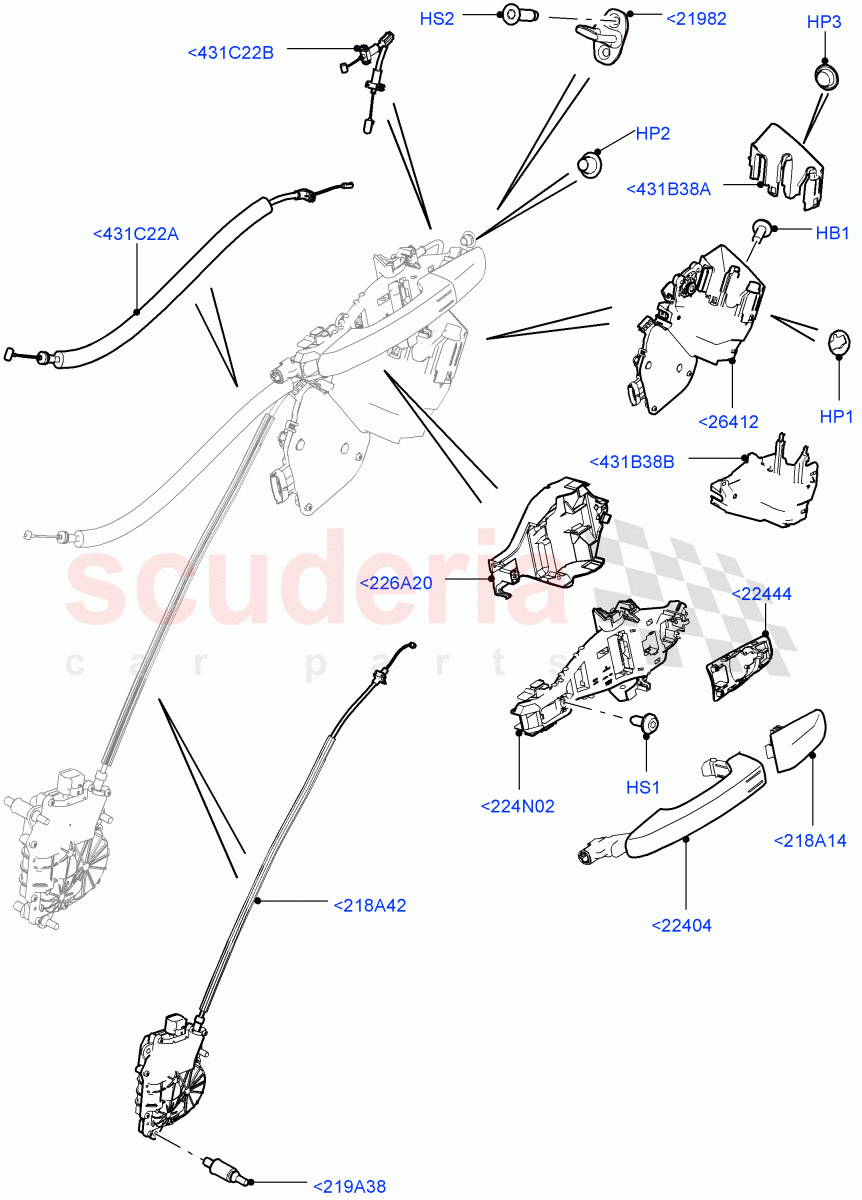

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038526 BOLT $1.35 To Order
Photo Part No Description Price (each) Stock
LR037473 PLUG - BLANKING $1.05 To Order
Photo Part No Description Price (each) Stock
LR036842 PLUG - BLANKING $1.94 To Order
Photo Part No Description Price (each) Stock
LR058114 PLUG - BLANKING $8.40 To Order
Photo Part No Description Price (each) Stock
LR049323 SCREW $1.01 To Order
LR083297 SCREW $2.46 IN STOCK
Photo Part No Description Price (each) Stock
LR042467 BOLT $1.86 To Order
Photo Part No Description Price (each) Stock
LR049318 STRIKER - DOOR LOCKING MECHANISM $24.20 To Order
Photo Part No Description Price (each) Stock
LR040667 HANDLE - DOOR - OUTER $142.97 To Order
LR040308 HANDLE - DOOR - OUTER $57.32 To Order
LR061200 HANDLE - DOOR - OUTER $202.97 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR087704 GASKET - DOOR HANDLE $5.89 To Order
LR034461 GASKET - DOOR HANDLE $4.90 To Order
Photo Part No Description Price (each) Stock
LR048257 LATCH - REAR DOOR $383.67 To Order
LR048258 LATCH - REAR DOOR $367.87 To Order
LR048259 LATCH - REAR DOOR $281.49 To Order
...and 45 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025406 CAP - HANDLE $25.39 To Order
Photo Part No Description Price (each) Stock
LR038298 ACTUATOR - DOOR LATCH $245.69 To Order
LR064861 ACTUATOR - DOOR LATCH $237.64 To Order
LR108981 ACTUATOR - DOOR LATCH $255.80 To Order
Photo Part No Description Price (each) Stock
LR037501 BUFFER - RUBBER MOTOR MOUNTING $8.81 To Order
Photo Part No Description Price (each) Stock
LR025540 REINFORCEMENT - DOOR HANDLE $29.69 To Order
LR078757 REINFORCEMENT $36.45 To Order
LR108184 REINFORCEMENT $18.06 To Order
Photo Part No Description Price (each) Stock
LR050987 BRACKET - HANDLE MOUNTING $31.79 To Order
Photo Part No Description Price (each) Stock
LR058115 COVER - LATCH $33.20 To Order
LR058117 COVER - LATCH $33.20 To Order
Photo Part No Description Price (each) Stock
LR058116 COVER - LATCH $35.89 To Order
LR058118 COVER - LATCH $35.89 To Order
Photo Part No Description Price (each) Stock
LR037490 CABLE - DOOR LATCH $24.97 To Order
LR064873 CABLE - DOOR LATCH $22.73 To Order
Photo Part No Description Price (each) Stock
LR078760 CABLE - DOOR LATCH $18.03 To Order
LR078760 CABLE - DOOR LATCH $18.03 To Order
View All
Rear Door Lock Controls ((V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<218A14 LR025406
CAP - HANDLE
Body Coloured Exterior Door Handle / Primed, RH/LH 		$25.39 2
<218A42 LR038298
ACTUATOR - DOOR LATCH
RH/LH / To: EA361221 		$245.69 2
<218A42 LR064861
ACTUATOR - DOOR LATCH
RH/LH / From: EA361222 / To: GA999999 		$237.64 2
<218A42 LR108981
ACTUATOR - DOOR LATCH
RH/LH / From: HA000001 / To: HA999999 		$255.80 2
<219A38 LR037501
BUFFER - RUBBER MOTOR MOUNTING
Rubber 		$8.81 3
<224N02 LR025540
REINFORCEMENT - DOOR HANDLE
RH/LH / To: GA545747 		$29.69 2
<224N02 LR078757
REINFORCEMENT
RH/LH / From: GA545748 / To: HA161736 		$36.45 2
<224N02 LR108184
REINFORCEMENT
RH/LH / From: HA161737 		$18.06 2
<226A20 LR050987
BRACKET - HANDLE MOUNTING
RH/LH 		$31.79 2
<431B38A LR058115
COVER - LATCH
RH, Upper 		$33.20 1
<431B38A LR058117
COVER - LATCH
LH, Upper 		$33.20 1
<431B38B LR058116
COVER - LATCH
RH, Lower 		$35.89 1
<431B38B LR058118
COVER - LATCH
LH, Lower 		$35.89 1
<431C22A LR037490
CABLE - DOOR LATCH
Door Release Control, Internal / To: EA361083 		$24.97 1
<431C22A LR064873
CABLE - DOOR LATCH
Door Release Control, Internal / From: EA361084 		$22.73 1
<431C22B LR078760
CABLE - DOOR LATCH
Outside Door Release Handle To Latch / To: GA545463 		$18.03 1
<431C22B LR078760
CABLE - DOOR LATCH
Outside Door Release Handle To Latch / From: GA545464 		$18.03 1
<21982 LR049318
STRIKER - DOOR LOCKING MECHANISM
RH/LH 		$24.20 2
<22404 LR040667
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive / Primed, RH/LH / To: EA389108 		$142.97 2
<22404 LR040308
HANDLE - DOOR - OUTER
With Keyless Start / Primed, RH/LH / To: EA389108 		$57.32 2
<22404 LR061200
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive / Primed, RH/LH / From: EA389109 		$202.97 2
<22404 LR061201
HANDLE - DOOR - OUTER
With Keyless Start / Primed, RH/LH / From: EA389109 		$123.60 2
<22444 LR087704
GASKET - DOOR HANDLE
RH/LH / From: GA678231 		$5.89 2
<22444 LR034461
GASKET - DOOR HANDLE
RH/LH / To: GA678230 		$4.90 2
<26412 LR048257
LATCH - REAR DOOR
Double Locking + Soft Close, Keyless Entry/Start - Passive / RH / To: EA303659 		$383.67 1
<26412 LR048258
LATCH - REAR DOOR
Central Door Locking + Soft Close, Keyless Entry/Start - Passive / RH / To: EA303659 		$367.87 1
<26412 LR048259
LATCH - REAR DOOR
Double Locking Power Lock Latch, Keyless Entry/Start - Passive / RH / To: EA303659 		$281.49 1
<26412 LR048260
LATCH - REAR DOOR
Central Locking Power Lock Latch, Keyless Entry/Start - Passive / RH / To: EA303659 		$265.64 1
<26412 LR048261
LATCH - REAR DOOR
Double Locking Power Lock Latch, With Keyless Start / RH / To: EA303659 		$244.53 1
<26412 LR048262
LATCH - REAR DOOR
Central Locking Power Lock Latch, With Keyless Start / RH / To: EA303659 		$214.85 1
<26412 LR048263
LATCH - REAR DOOR
Double Locking + Soft Close, Keyless Entry/Start - Passive / LH / To: EA303659 		$314.84 1
<26412 LR048264
LATCH - REAR DOOR
Central Door Locking + Soft Close, Keyless Entry/Start - Passive / LH / To: EA303659 		$372.93 1
<26412 LR048265
LATCH - REAR DOOR
Double Locking Power Lock Latch, Keyless Entry/Start - Passive / LH / To: EA303659 		$332.49 1
<26412 LR048266
LATCH - REAR DOOR
Central Locking Power Lock Latch, Keyless Entry/Start - Passive / LH / To: EA303659 		$265.64 1
<26412 LR048267
LATCH - REAR DOOR
Double Locking Power Lock Latch, With Keyless Start / LH / To: EA303659 		$230.72 1
<26412 LR048268
LATCH - REAR DOOR
Central Locking Power Lock Latch, With Keyless Start / LH / To: EA303659 		$214.85 1
<26412 LR078748
LATCH - REAR DOOR
Double Locking + Soft Close, Keyless Entry/Start - Passive / LH / From: EA303660 / To: EA361084 		$305.70 1
<26412 LR053704
LATCH - REAR DOOR
Central Door Locking + Soft Close, Keyless Entry/Start - Passive / LH / From: EA303660 / To: EA361084 		$347.12 1
<26412 LR053706
LATCH - REAR DOOR
Double Locking Power Lock Latch, Keyless Entry/Start - Passive / LH / From: EA303660 / To: EA361083 		$255.86 1
<26412 LR053707
LATCH - REAR DOOR
Central Locking Power Lock Latch, Keyless Entry/Start - Passive / LH / From: EA303660 / To: EA361083 		$265.64 1
<26412 LR053708
LATCH - REAR DOOR
Double Locking Power Lock Latch, With Keyless Start / LH / From: EA303660 / To: EA361083 		$180.25 1
<26412 LR053710
LATCH - REAR DOOR
Central Locking Power Lock Latch, With Keyless Start / LH / From: EA303660 / To: EA361083 		$164.39 1
<26412 LR078742
LATCH - REAR DOOR
Double Locking + Soft Close, Keyless Entry/Start - Passive / RH / From: EA303660 / To: EA361084 		$305.70 1
<26412 LR053696
LATCH - REAR DOOR
Central Door Locking + Soft Close, Keyless Entry/Start - Passive / RH / From: EA303660 / To: EA361084 		$293.10 1
<26412 LR053697
LATCH - REAR DOOR
Double Locking Power Lock Latch, Keyless Entry/Start - Passive / RH / From: EA303660 / To: EA361083 		$281.49 1
<26412 LR053698
LATCH - REAR DOOR
Central Locking Power Lock Latch, Keyless Entry/Start - Passive / RH / From: EA303660 / To: EA361083 		$319.77 1
<26412 LR053700
LATCH - REAR DOOR
Double Locking Power Lock Latch, With Keyless Start / RH / From: EA303660 / To: EA361083 		$208.07 1
<26412 LR053701
LATCH - REAR DOOR
Central Locking Power Lock Latch, With Keyless Start / RH / From: EA303660 / To: EA361083 		$164.39 1
<26412 LR063622
LATCH - REAR DOOR
Double Locking Power Lock Latch, Keyless Entry/Start - Passive / LH / From: EA361084 / To: GA631283 		$203.75 1
<26412 LR063611
LATCH - REAR DOOR
Central Locking Power Lock Latch, Keyless Entry/Start - Passive / LH / From: EA361084 / To: GA631283 		$197.45 1
<26412 LR063626
LATCH - REAR DOOR
Double Locking Power Lock Latch, With Keyless Start / LH / From: EA361084 / To: GA631283 		$175.84 1
<26412 LR063621
LATCH - REAR DOOR
Central Locking Power Lock Latch, With Keyless Start / LH / From: EA361084 / To: GA631283 		$167.85 1
<26412 LR063608
LATCH - REAR DOOR
Double Locking Power Lock Latch, Keyless Entry/Start - Passive / RH / From: EA361084 / To: GA631283 		$212.37 1
<26412 LR063628
LATCH - REAR DOOR
Central Locking Power Lock Latch, Keyless Entry/Start - Passive / RH / From: EA361084 / To: GA631283 		$176.05 1
<26412 LR063623
LATCH - REAR DOOR
Double Locking Power Lock Latch, With Keyless Start / RH / From: EA361084 / To: GA631283 		$172.41 1
<26412 LR063612
LATCH - REAR DOOR
Central Locking Power Lock Latch, With Keyless Start / RH / From: EA361084 / To: GA631283 		$162.93 1
<26412 LR078742
LATCH - REAR DOOR
Double Locking + Soft Close, Keyless Entry/Start - Passive / RH / From: EA361085 / To: GA631283 		$305.70 1
<26412 LR064804
LOCK - DOOR
Central Door Locking + Soft Close, Keyless Entry/Start - Passive / RH / From: EA361085 / To: GA631283 		$274.85 1
<26412 LR064805
LATCH - REAR DOOR
Double Locking + Soft Close, Keyless Entry/Start - Passive / LH / From: EA361085 / To: GA631283 		$323.34 1
<26412 LR064806
LOCK - DOOR
Central Door Locking + Soft Close, Keyless Entry/Start - Passive / LH / From: EA361085 / To: GA631283 		$316.71 1
<26412 LR078742
LATCH - REAR DOOR
Double Locking Power Lock Latch, Keyless Entry/Start - Passive, Soft Door Close / RH / From: GA631284 		$305.70 1
<26412 LR078743
LATCH - REAR DOOR
Central Locking Power Lock Latch, Keyless Entry/Start - Passive, Soft Door Close / RH / From: GA631284 		$236.76 1
<26412 LR078744
LATCH - REAR DOOR
Double Locking Power Lock Latch, Keyless Entry/Start - Passive, Less Side Door Power / RH / From: GA631284 		$224.31 1
<26412 LR078745
LATCH - REAR DOOR
Central Locking Power Lock Latch, Keyless Entry/Start - Passive, Less Side Door Power / RH / From: GA631284 		$236.76 1
<26412 LR078746
LATCH - REAR DOOR
Double Locking Power Lock Latch, Less Side Door Power, With Keyless Start / RH / From: GA631284 		$183.83 1
<26412 LR078747
LATCH - REAR DOOR
Central Locking Power Lock Latch, Less Side Door Power, With Keyless Start / RH / From: GA631284 		$167.01 1
<26412 LR078748
LATCH - REAR DOOR
Double Locking Power Lock Latch, Keyless Entry/Start - Passive, Soft Door Close / LH / From: GA631284 		$305.70 1
<26412 LR078749
LATCH - REAR DOOR
Central Locking Power Lock Latch, Keyless Entry/Start - Passive, Soft Door Close / LH / From: GA631284
IN STOCK 		$236.76 1
<26412 LR078750
LATCH - REAR DOOR
Double Locking Power Lock Latch, Keyless Entry/Start - Passive, Less Side Door Power / LH / From: GA631284 		$224.31 1
<26412 LR078752
LATCH - REAR DOOR
Central Locking Power Lock Latch, Keyless Entry/Start - Passive, Less Side Door Power / LH / From: GA631284 		$236.76 1
<26412 LR078753
LATCH - REAR DOOR
Double Locking Power Lock Latch, Less Side Door Power, With Keyless Start / LH / From: GA631284 		$183.83 1
<26412 LR078755
LATCH - REAR DOOR
Central Locking Power Lock Latch, Less Side Door Power, With Keyless Start / LH / From: GA631284 		$159.73 1
HB1 LR038526
BOLT
M6 X 11MM 		$1.35 3
HP1 LR037473
PLUG - BLANKING
Access Hole Cover, RH/LH 		$1.05 2
HP2 LR036842
PLUG - BLANKING
Access Hole Cover, On Door, RH/LH 		$1.94 2
HP3 LR058114
PLUG - BLANKING
Seal 		$8.40 1
HS1 LR049323
SCREW
M5 x 22MM, Reinforcement / To: GA568271 		$1.01 2
HS1 LR083297
SCREW
M5 x 22MM, Reinforcement / From: GA568272
IN STOCK 		$2.46 4
HS2 LR042467
BOLT
M8 X 25MM, Striker 		$1.86 2
