Find Your Part

View All

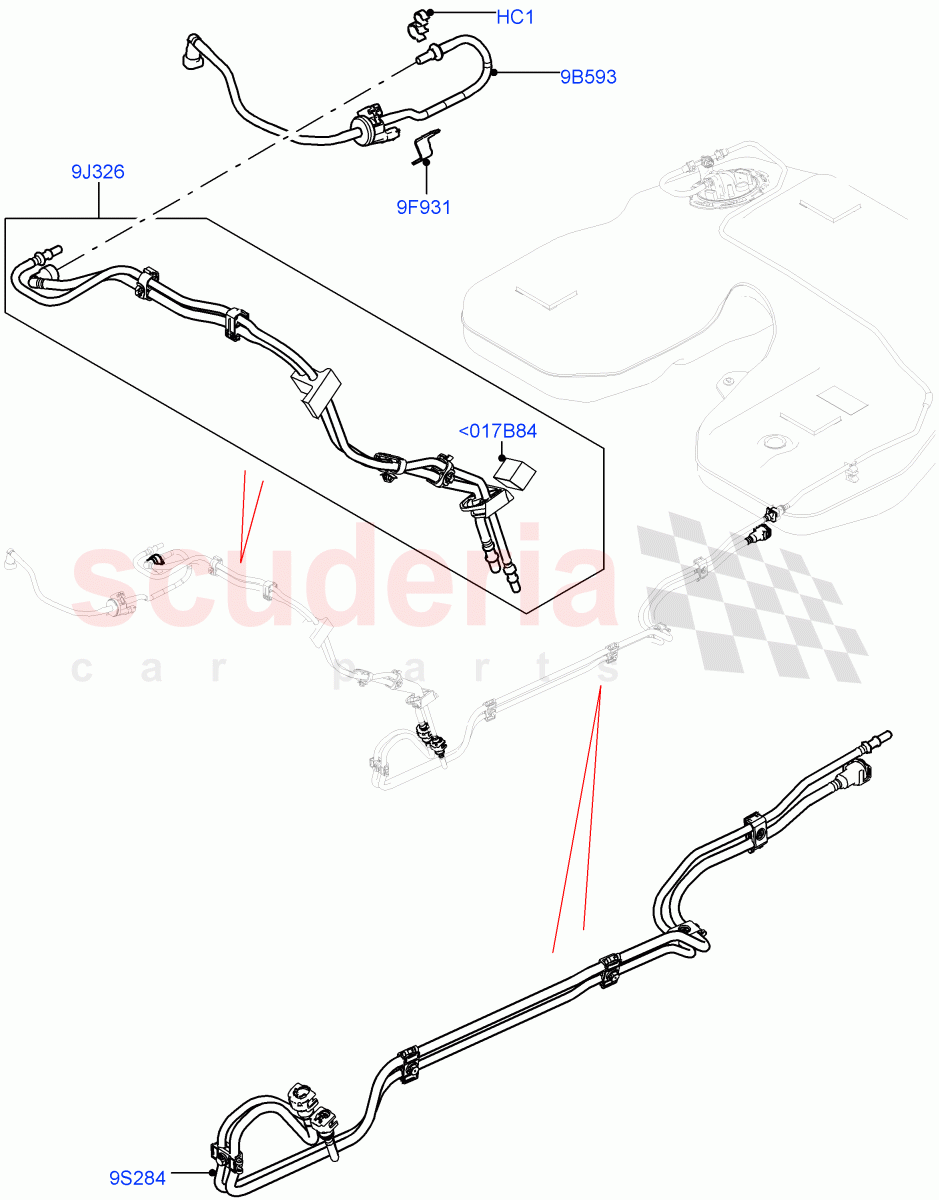

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR014474	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011563	BRACKET - FUEL VAPOUR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044464	PAD - FOAM	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84	LR044464	PAD - FOAM	LR044464 PAD - FOAM	-	1	Enquire
HC1	LR014474	CLIP	LR014474 CLIP Double	-	1	Enquire
9B593	LR010749	VALVE - FUEL VAPOUR	LR010749 VALVE - FUEL VAPOUR To: NA222994	-	1	Enquire
9B593	LR172648	Valve - Fuel Vapour	LR172648 Valve - Fuel Vapour From: NA222995	-	1	Enquire
9F931	LR011563	BRACKET - FUEL VAPOUR VALVE	LR011563 BRACKET - FUEL VAPOUR VALVE Fuel Vapour Valve	-	1	Enquire
9J326	LR048109	PIPE - FUEL	LR048109 PIPE - FUEL Return, Set Of 2 Pieces, Supply / To: GA112867	-	1	Enquire
9J326	LR088540	PIPE - FUEL	LR088540 PIPE - FUEL Return, Set Of 2 Pieces, Supply / From: GA112868	-	1	Enquire
9S284	LR048110	TUBE - FUEL SUPPLY AND VAPOUR	LR048110 TUBE - FUEL SUPPLY AND VAPOUR Rear, Set Of 2 Pieces / To: EA314013	-	1	Enquire
9S284	LR055691	TUBE - FUEL SUPPLY AND VAPOUR	LR055691 TUBE - FUEL SUPPLY AND VAPOUR Rear, Set Of 2 Pieces / From: EA314014 / To: GA123596	-	1	Enquire
9S284	LR086375	TUBE - FUEL SUPPLY AND VAPOUR	LR086375 TUBE - FUEL SUPPLY AND VAPOUR Rear, Set Of 2 Pieces / From: GA123597	-	1	Enquire
