Name: Fuel Lines (Front) (5.0L OHC SGDI SC V8 Petrol - AJ133, (+) "KOR", Flex Fuel - E100, (+) "CDN/USA") ((V) FROMEA000001)
Rating: 5.0 (1 reviews)

Fuel Lines (Front) (5.0L OHC SGDI SC V8 Petrol - AJ133, (+) "KOR", Flex Fuel - E100, (+) "CDN/USA") ((V) FROMEA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Fuel Lines (Front) (5.0L OHC SGDI SC V8 Petrol - AJ133, (+) "KOR", Flex Fuel - E100, (+) "CDN/USA")...

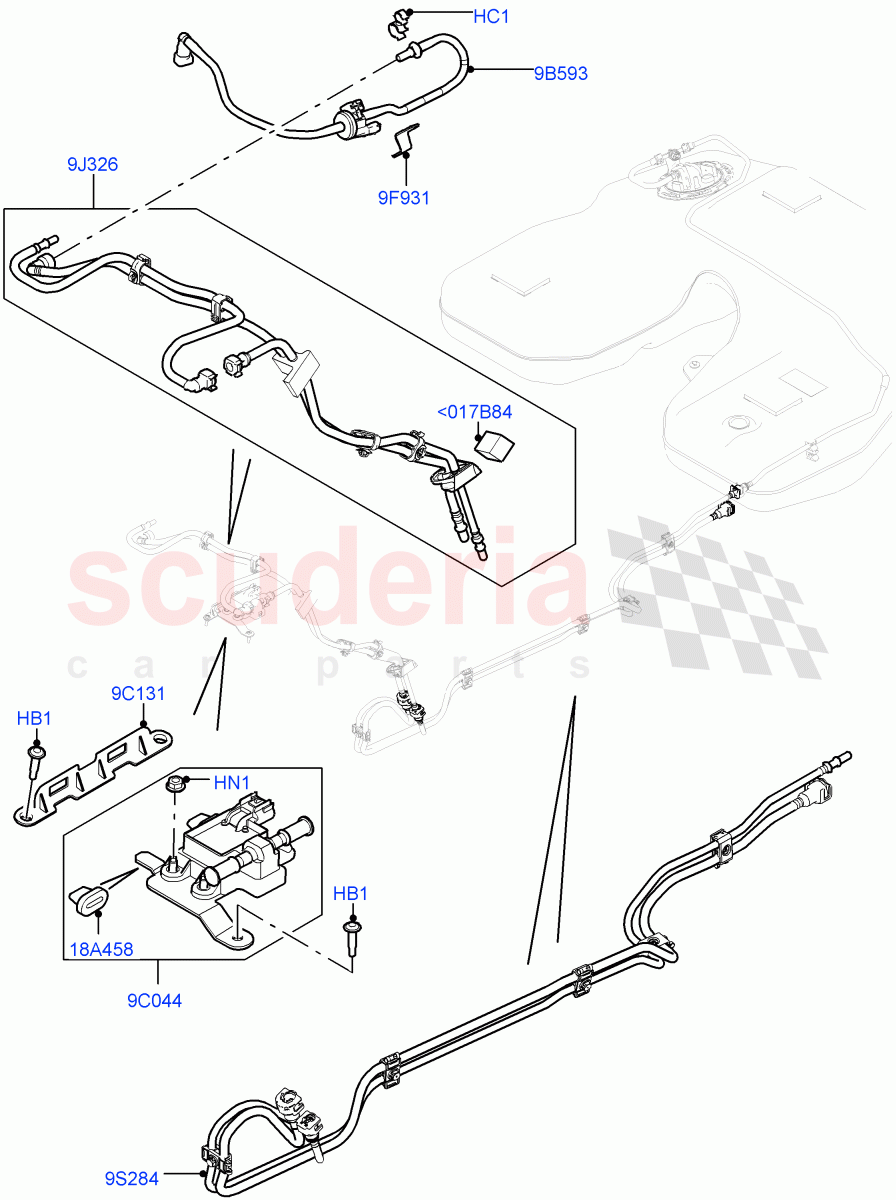

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014474	CLIP	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010749	VALVE - FUEL VAPOUR	$166.29	To Order
	LR172648	Valve - Fuel Vapour	$173.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042488	SENSOR - FUEL QUALITY	$291.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042509	BRACKET - FUEL COOLER	$19.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011563	BRACKET - FUEL VAPOUR VALVE	$12.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042476	TUBE - FUEL FEED	$124.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048110	TUBE - FUEL SUPPLY AND VAPOUR	$94.30	To Order
	LR055691	TUBE - FUEL SUPPLY AND VAPOUR	$98.98	To Order
	LR086375	TUBE - FUEL SUPPLY AND VAPOUR	$128.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044591	GROMMET - ADAPTOR TO BRACKET	$9.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044464	PAD - FOAM	$28.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017B84	LR044464	PAD - FOAM	LR044464 PAD - FOAM	$28.18	1
HB1	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX M6 x 19MM, Torx	$1.01	3
HC1	LR014474	CLIP	LR014474 CLIP Double	$1.09	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	3
9B593	LR010749	VALVE - FUEL VAPOUR	LR010749 VALVE - FUEL VAPOUR To: NA222994	$166.29	1
9B593	LR172648	Valve - Fuel Vapour	LR172648 Valve - Fuel Vapour From: NA222995	$173.01	1
9C044	LR042488	SENSOR - FUEL QUALITY	LR042488 SENSOR - FUEL QUALITY Sensor - Fuel Quality	$291.60	1
9C131	LR042509	BRACKET - FUEL COOLER	LR042509 BRACKET - FUEL COOLER Sensor - Fuel Quality	$19.79	1
9F931	LR011563	BRACKET - FUEL VAPOUR VALVE	LR011563 BRACKET - FUEL VAPOUR VALVE Fuel Vapour Valve	$12.22	1
9J326	LR042476	TUBE - FUEL FEED	LR042476 TUBE - FUEL FEED Return, Set Of 2 Pieces, Supply	$124.01	1
9S284	LR048110	TUBE - FUEL SUPPLY AND VAPOUR	LR048110 TUBE - FUEL SUPPLY AND VAPOUR Rear, Set Of 2 Pieces / To: EA314013	$94.30	1
9S284	LR055691	TUBE - FUEL SUPPLY AND VAPOUR	LR055691 TUBE - FUEL SUPPLY AND VAPOUR Rear, Set Of 2 Pieces / From: EA314014 / To: GA123596	$98.98	1
9S284	LR086375	TUBE - FUEL SUPPLY AND VAPOUR	LR086375 TUBE - FUEL SUPPLY AND VAPOUR Rear, Set Of 2 Pieces / From: GA123597	$128.76	1
18A458	LR044591	GROMMET - ADAPTOR TO BRACKET	LR044591 GROMMET - ADAPTOR TO BRACKET Sensor - Fuel Quality	$9.77	1

Fuel Lines (Front) (5.0L Ohc Sgdi Sc V8 Petrol - Aj133, (+) "Kor", Flex Fuel - E100, (+) "Cdn/Usa")...

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Fuel Lines (Front) (5.0L OHC SGDI SC V8 Petrol - AJ133, (+) "KOR", Flex Fuel - E100, (+) "CDN/USA")...
