Rear Exhaust System (5.0 Petrol AJ133 DOHC CDA) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Rear Exhaust System (5.0 Petrol AJ133 DOHC CDA) ((V) FROMJA000001)

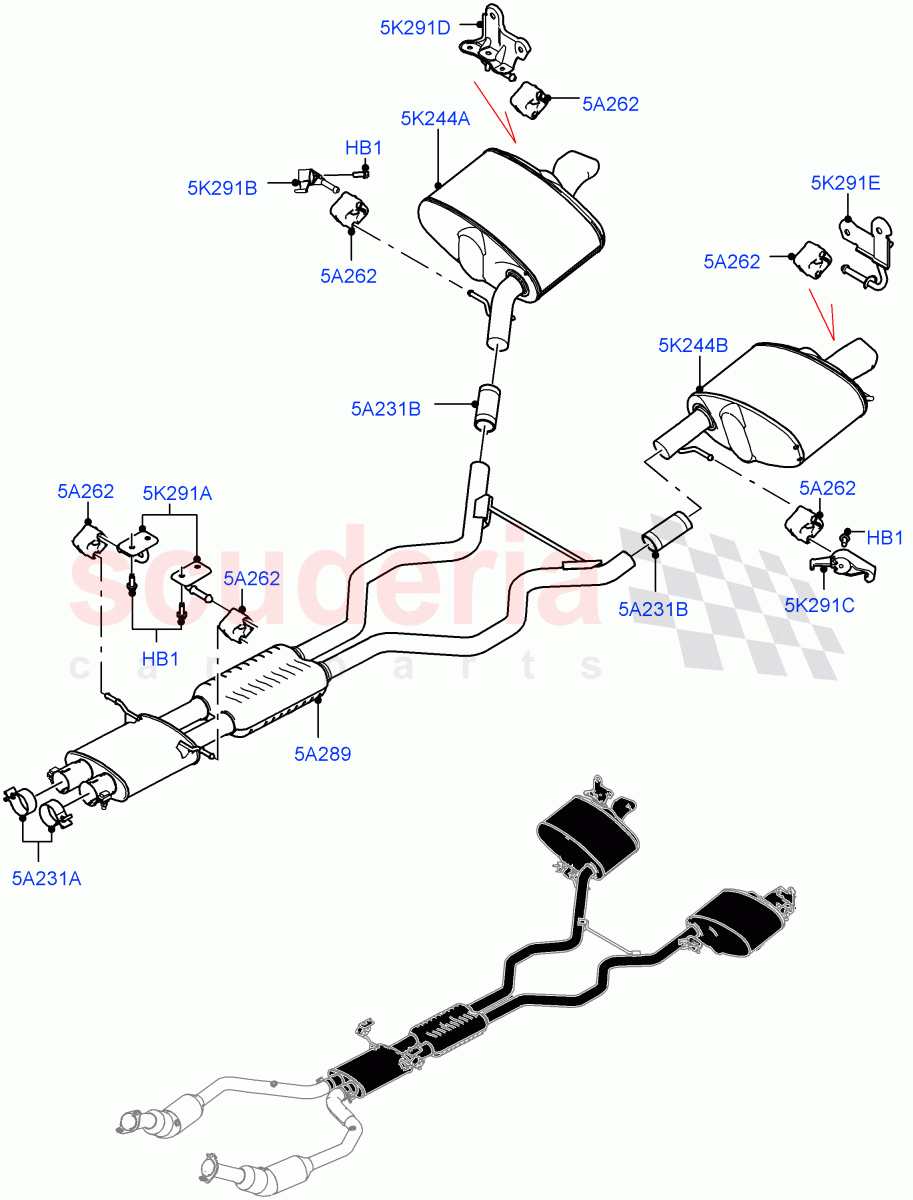

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106790	RESONATOR - EXHAUST SYSTEM	Enquire	To Order
	LR120471	RESONATOR - EXHAUST SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036438	EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500020	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105232	MUFFLER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105237	MUFFLER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035765	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110251	BRACKET - REAR MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110252	BRACKET - REAR MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101087	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101088	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: JA000001	-	6	Enquire
5A231A	LR036438	EXHAUST	LR036438 EXHAUST 60MM, Front, RESONATOR / From: JA000001	-	2	Enquire
5A231B	WCL500020	CLAMP - EXHAUST	WCL500020 CLAMP - EXHAUST 50MM, For Rear Muffler / From: JA000001	-	2	Enquire
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: JA000001	-	6	Enquire
5A289	LR106790	RESONATOR - EXHAUST SYSTEM	LR106790 RESONATOR - EXHAUST SYSTEM From: JA000001 / To: KA818121	-	1	Enquire
5A289	LR120471	RESONATOR - EXHAUST SYSTEM	LR120471 RESONATOR - EXHAUST SYSTEM From: KA818122	-	1	Enquire
5K244A	LR105232	MUFFLER - REAR	LR105232 MUFFLER - REAR RH / From: JA000001	-	1	Enquire
5K244B	LR105237	MUFFLER - REAR	LR105237 MUFFLER - REAR LH / From: JA000001	-	1	Enquire
5K291A	LR035765	BRACKET - EXHAUST PIPE MOUNTING	LR035765 BRACKET - EXHAUST PIPE MOUNTING RESONATOR / From: JA000001	-	2	Enquire
5K291B	LR110251	BRACKET - REAR MUFFLER	LR110251 BRACKET - REAR MUFFLER For Rear Muffler, RH Front / From: JA000001	-	1	Enquire
5K291C	LR110252	BRACKET - REAR MUFFLER	LR110252 BRACKET - REAR MUFFLER For Rear Muffler, LH Front / From: JA000001	-	1	Enquire
5K291D	LR101087	BRACKET - EXHAUST PIPE MOUNTING	LR101087 BRACKET - EXHAUST PIPE MOUNTING For Rear Muffler, RH Rear / From: JA000001	-	1	Enquire
5K291E	LR101088	BRACKET - EXHAUST PIPE MOUNTING	LR101088 BRACKET - EXHAUST PIPE MOUNTING For Rear Muffler, LH Rear / From: JA000001	-	1	Enquire
