Exhaust System of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Exhaust System

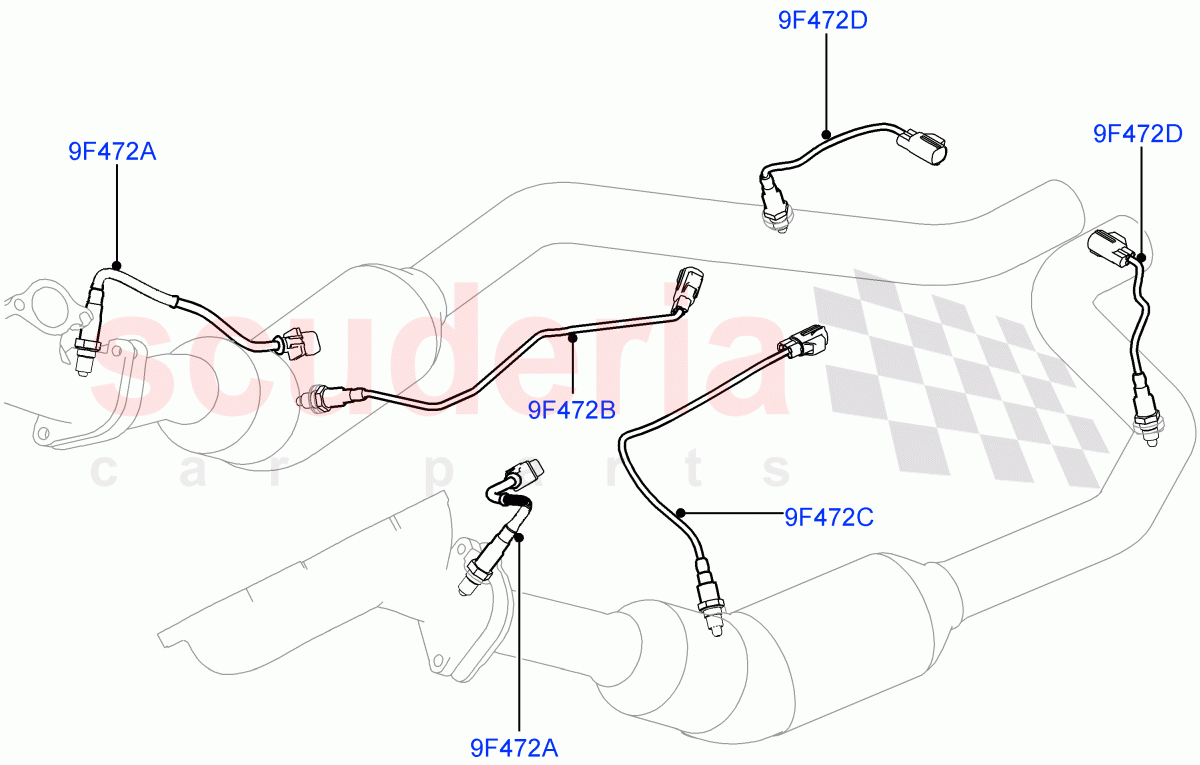

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR035750	SENSOR - LAMBDA	Enquire	To Order
	LR116745	SENSOR - LAMBDA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035747	SENSOR - LAMBDA	Enquire	To Order
	LR140073	SENSOR - LAMBDA	Enquire	To Order
	LR098287	SENSOR - LAMBDA	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR140077	SENSOR - EXHAUST GAS - OXYGEN	Enquire	To Order
	LR113309	SENSOR - LAMBDA	Enquire	To Order
	LR035746	SENSOR - LAMBDA	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR136928	SENSOR - LAMBDA	Enquire	To Order
	LR098290	SENSOR - LAMBDA	Enquire	To Order
	LR136928	SENSOR - LAMBDA	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
9F472A	LR035750	SENSOR - LAMBDA	LR035750 SENSOR - LAMBDA Exhaust Gas Oxygen, Front, RH/LH / To: JA999999	-	2	Enquire
9F472A	LR116745	SENSOR - LAMBDA	LR116745 SENSOR - LAMBDA Exhaust Gas Oxygen, Front, RH/LH / From: KA000001	-	2	Enquire
9F472B	LR035747	SENSOR - LAMBDA	LR035747 SENSOR - LAMBDA Less SULEV Requirements / RH, Exhaust Gas Oxygen, Middle / To: HA145835	-	1	Enquire
9F472B	LR140073	SENSOR - LAMBDA	LR140073 SENSOR - LAMBDA SULEV Requirements / RH, Exhaust Gas Oxygen, Middle / From: FA000001 / To: HA147706	-	1	Enquire
9F472B	LR098287	SENSOR - LAMBDA	LR098287 SENSOR - LAMBDA SULEV Requirements / RH, Exhaust Gas Oxygen, Middle / From: HA147707 / To: LA738938	-	1	Enquire
9F472B	LR098287	SENSOR - LAMBDA	LR098287 SENSOR - LAMBDA ULEV II Requirements / RH, Exhaust Gas Oxygen, Middle / To: HA170516	-	1	Enquire
9F472B	LR098291	SENSOR - EXHAUST GAS - OXYGEN	LR098291 SENSOR - EXHAUST GAS - OXYGEN Less SULEV Requirements / RH, Exhaust Gas Oxygen, Middle / From: HA145836 / To: JA989997	-	1	Enquire
9F472B	LR098291	SENSOR - EXHAUST GAS - OXYGEN	LR098291 SENSOR - EXHAUST GAS - OXYGEN ULEV II Requirements / RH, Exhaust Gas Oxygen, Middle / From: HA170517 / To: JA989997	-	1	Enquire
9F472B	LR140073	SENSOR - LAMBDA	LR140073 SENSOR - LAMBDA SULEV Requirements / RH, Centre, Exhaust Gas Oxygen / From: LA738939	-	1	Enquire
9F472B	LR140079	SENSOR - EXHAUST GAS - OXYGEN	LR140079 SENSOR - EXHAUST GAS - OXYGEN Less SULEV Requirements / RH, Exhaust Gas Oxygen, Middle / From: JA989998	-	1	Enquire
9F472C	LR140077	SENSOR - EXHAUST GAS - OXYGEN	LR140077 SENSOR - EXHAUST GAS - OXYGEN SULEV Requirements / LH, Exhaust Gas Oxygen, Middle / From: JA989999 / To: JA999999	-	1	Enquire
9F472C	LR113309	SENSOR - LAMBDA	LR113309 SENSOR - LAMBDA LH, Exhaust Gas Oxygen, Middle / From: KA000001 / To: LA721167	-	1	Enquire
9F472C	LR035746	SENSOR - LAMBDA	LR035746 SENSOR - LAMBDA Less SULEV Requirements / LH, Exhaust Gas Oxygen, Middle / To: HA145835	-	1	Enquire
9F472C	LR140078	SENSOR - EXHAUST GAS - OXYGEN	LR140078 SENSOR - EXHAUST GAS - OXYGEN Less SULEV Requirements / LH, Exhaust Gas Oxygen, Middle / From: JA989999 / To: JA999999	-	1	Enquire
9F472C	LR140077	SENSOR - EXHAUST GAS - OXYGEN	LR140077 SENSOR - EXHAUST GAS - OXYGEN SULEV Requirements / LH, Exhaust Gas Oxygen, Middle / From: FA000001 / To: HA145762	-	1	Enquire
9F472C	LR098293	SENSOR - LAMBDA	LR098293 SENSOR - LAMBDA SULEV Requirements / LH, Exhaust Gas Oxygen, Middle / From: HA145763 / To: JA989998	-	1	Enquire
9F472C	LR098285	SENSOR - LAMBDA	LR098285 SENSOR - LAMBDA Less SULEV Requirements / LH, Exhaust Gas Oxygen, Middle / From: HA145836 / To: JA989998	-	1	Enquire
9F472C	LR140082	SENSOR - LAMBDA	LR140082 SENSOR - LAMBDA LH, Exhaust Gas Oxygen, Middle / From: LA721168	-	1	Enquire
9F472D	LR136928	SENSOR - LAMBDA	LR136928 SENSOR - LAMBDA Exhaust Gas Oxygen, Rear, RH/LH / To: HA145835	-	2	Enquire
9F472D	LR098290	SENSOR - LAMBDA	LR098290 SENSOR - LAMBDA Exhaust Gas Oxygen, Rear, RH/LH / From: HA145836 / To: LA892680	-	2	Enquire
9F472D	LR136928	SENSOR - LAMBDA	LR136928 SENSOR - LAMBDA Exhaust Gas Oxygen, Rear, RH/LH / From: LA892681	-	2	Enquire
