Thermostat/Housing & Related Parts (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Thermostat/Housing & Related Parts (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMJA000001)

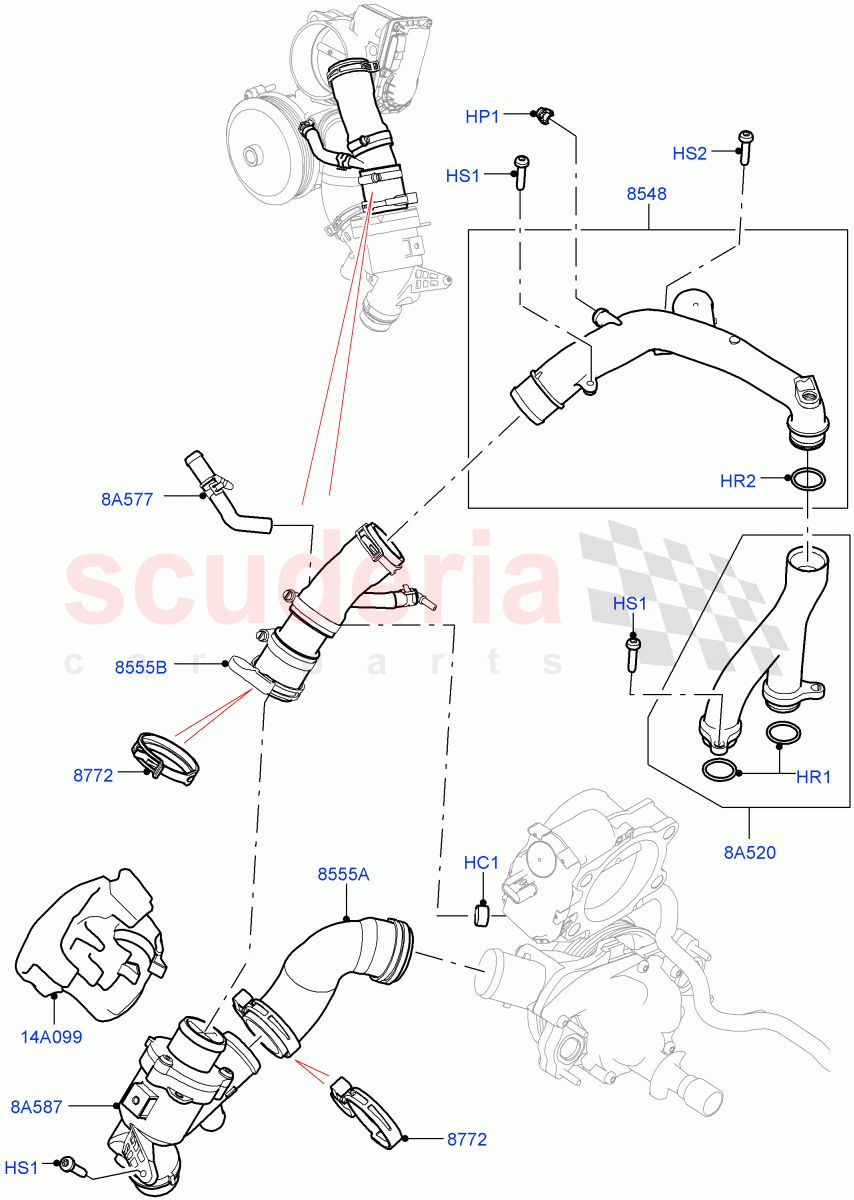

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011158	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011038	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010800	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100353	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011272	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090630	TUBE - WATER INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034109	CLAMP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033994	TUBE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049990	TUBE - THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092992	TUBE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045239	HOSE - THROTTLE BODY HEATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032135	THERMOSTAT AND HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051007	SHIELD - PROTECTION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR011158	CLIP - HOSE	LR011158 CLIP - HOSE 13-14 X 8, Hose - Throttle Body Heater / From: JA000001	-	1	Enquire
HP1	LR011038	PLUG - BLANKING	LR011038 PLUG - BLANKING Blanking, Cooling System Bleed / From: JA000001	-	1	Enquire
HR1	LR010800	O-RING	LR010800 O-RING Ring - Sealing - Tube Water Outlet From Cylinder Block / From: JA000001	-	2	Enquire
HR2	LR100353	O-RING	LR100353 O-RING Upper / From: JA000001	-	1	Enquire
HS1	LR011270	SCREW	LR011270 SCREW M6 x 25MM, Torx / From: JA000001	-	5	Enquire
HS2	LR011272	SCREW	LR011272 SCREW M6 X 40MM, Torx / From: JA000001	-	1	Enquire
8A520	LR092992	TUBE - WATER OUTLET	LR092992 TUBE - WATER OUTLET Includes O-Ring, Tube Water Outlet To Cylinder Block / From: JA000001	-	1	Enquire
8A577	LR045239	HOSE - THROTTLE BODY HEATER OUTLET	LR045239 HOSE - THROTTLE BODY HEATER OUTLET Hose - Throttle Body Heater, Outlet / From: JA000001	-	1	Enquire
8A587	LR032135	THERMOSTAT AND HOUSING	LR032135 THERMOSTAT AND HOUSING Thermostat And Housing Assy / From: JA000001	-	1	Enquire
14A099	LR051007	SHIELD - PROTECTION	LR051007 SHIELD - PROTECTION Engine Air Deflector / From: JA000001	-	1	Enquire
8548	LR090630	TUBE - WATER INLET	LR090630 TUBE - WATER INLET Water Connector - Thermostat To Top Coolant Hose / From: JA000001	-	1	Enquire
8555A	LR033994	TUBE - WATER OUTLET	LR033994 TUBE - WATER OUTLET From Water Pump To Thermostat, With Clamps / From: JA000001	-	1	Enquire
8555B	LR049990	TUBE - THERMOSTAT	LR049990 TUBE - THERMOSTAT Thermostat To Engine, With Clamps / From: JA000001	-	1	Enquire
8772	LR034109	CLAMP - HOSE	LR034109 CLAMP - HOSE 49MM / From: JA000001	-	2	Enquire
