Name: Cooling System Pipes And Hoses (5.0L P AJ133 DOHC CDA S/C Enhanced, Active Tranmission Warming, 5.0 Petrol AJ133 DOHC CDA) ((V) FROMKA000001)
Rating: 4.5 (1 reviews)

Cooling System Pipes And Hoses (5.0L P AJ133 DOHC CDA S/C Enhanced, Active Tranmission Warming, 5.0 Petrol AJ133 DOHC CDA) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Cooling System Pipes And Hoses (5.0L P AJ133 DOHC CDA S/C Enhanced, Active Tranmission Warming, 5.0...

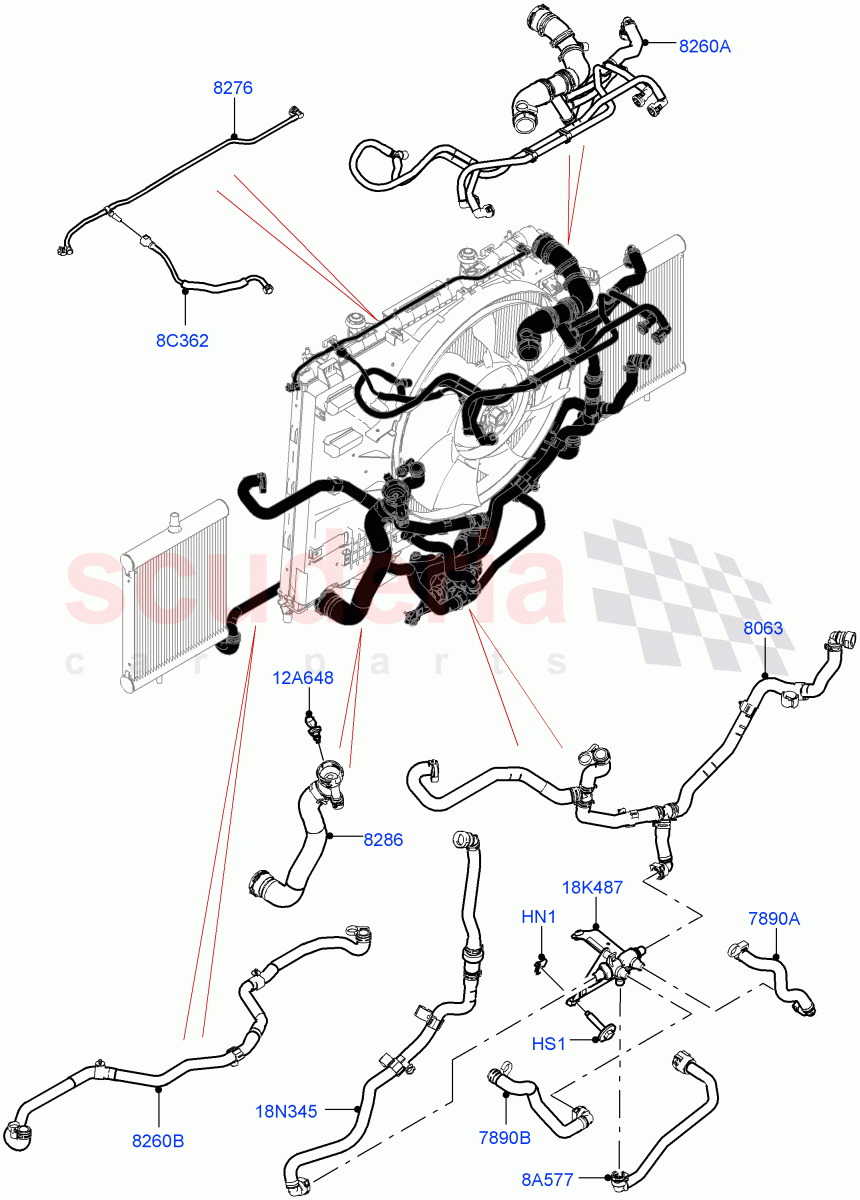

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100080	HOSE - WATER	$148.83	To Order
	LR126010	HOSE - WATER	$161.28	To Order
	LR126010	HOSE - WATER	$161.28	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR146301	HOSE - RADIATOR TO ENGINE VENT ELBOW	$21.73	IN STOCK
	LR146301	HOSE - RADIATOR TO ENGINE VENT ELBOW	$21.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR100082	HOSE - RADIATOR	$128.18	To Order
	LR166363	HOSE - RADIATOR	$125.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100074	HOSE - OIL COOLER	$89.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100076	HOSE - OIL COOLER	$86.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113132	HOSE - RADIATOR	$115.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100131	HOSE - WATER	$62.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099967	HOSE - HEATER WATER	$61.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035630	HOSE - RADIATOR VENTILATION	$12.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$47.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113144	VALVE - COOLANT FLOW CONTROL	$157.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139053	HOSE - WATER	$242.42	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: KA000001 IN STOCK	$1.57	2
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: KA000001	$4.03	3
8A577	LR099967	HOSE - HEATER WATER	LR099967 HOSE - HEATER WATER Valve To Low Temperature Radiator / From: KA000001	$61.31	1
8C362	LR035630	HOSE - RADIATOR VENTILATION IN STOCK	LR035630 HOSE - RADIATOR VENTILATION Engine Degas Line / From: KA000001 IN STOCK	$12.67	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: KA000001	$47.02	1
18K487	LR113144	VALVE - COOLANT FLOW CONTROL	LR113144 VALVE - COOLANT FLOW CONTROL From: KA000001	$157.23	1
18N345	LR139053	HOSE - WATER	LR139053 HOSE - WATER Heater Water Control / From: KA000001	$242.42	1
7890A	LR100074	HOSE - OIL COOLER	LR100074 HOSE - OIL COOLER Inlet / From: KA000001	$89.71	1
7890B	LR100076	HOSE - OIL COOLER	LR100076 HOSE - OIL COOLER Outlet / From: KA000001	$86.20	1
8063	LR100080	HOSE - WATER	LR100080 HOSE - WATER Engine To Radiator Supply Tank / From: KA000001 / To: KA853467	$148.83	1
8063	LR126010	HOSE - WATER	LR126010 HOSE - WATER Engine To Radiator Supply Tank / From: KA853468 / To: KA999999	$161.28	1
8063	LR126010	HOSE - WATER	LR126010 HOSE - WATER Engine To Radiator Supply Tank / From: LA800000 / To: LA899999	$161.28	1
8063	LR126010	HOSE - WATER	LR126010 HOSE - WATER Engine To Radiator Supply Tank / From: LA700000 / To: LA730713	$161.28	1
8063	LR139053	HOSE - WATER	LR139053 HOSE - WATER Engine To Radiator Supply Tank / From: LA730714 / To: LA799999	$242.42	1
8063	LR139053	HOSE - WATER	LR139053 HOSE - WATER Engine To Radiator Supply Tank / From: MA000001	$242.42	1
8260A	LR113132	HOSE - RADIATOR	LR113132 HOSE - RADIATOR Radiator, Upper / From: KA000001	$115.73	1
8260B	LR100131	HOSE - WATER	LR100131 HOSE - WATER Auxiliary Radiator / From: KA000001	$62.02	1
8276	LR146301	HOSE - RADIATOR TO ENGINE VENT ELBOW IN STOCK	LR146301 HOSE - RADIATOR TO ENGINE VENT ELBOW Radiator Degas Line / From: KA000001 / To: MA788678 IN STOCK	$21.73	1
8276	LR146301	HOSE - RADIATOR TO ENGINE VENT ELBOW IN STOCK	LR146301 HOSE - RADIATOR TO ENGINE VENT ELBOW Radiator Degas Line / From: MA788679 IN STOCK	$21.73	1
8286	LR100082	HOSE - RADIATOR	LR100082 HOSE - RADIATOR Lower, Radiator / From: KA000001 / To: NA235787	$128.18	1
8286	LR166363	HOSE - RADIATOR	LR166363 HOSE - RADIATOR Lower, Radiator / From: NA235788	$125.91	1
