Fuel Lines (Front) (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Fuel Lines (Front) (4.4L DOHC DITC V8 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB106066 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
LR106271 FILTER - FUEL - PRIMARY $322.45 To Order
Photo Part No Description Price (each) Stock
LR036725 BRACKET - FUEL FILTER $31.70 To Order
LR072566 BRACKET - FUEL FILTER $34.67 To Order
Photo Part No Description Price (each) Stock
LR023060 GASKET - EGR COOLER $3.46 To Order
Photo Part No Description Price (each) Stock
LR023066 BRACKET - FUEL PUMP $6.74 To Order
Photo Part No Description Price (each) Stock
LR040126 TUBE - DRAIN $49.15 To Order
Photo Part No Description Price (each) Stock
LR072610 ELEMENT - FUEL FILTER $119.36 To Order
LR072610 ELEMENT - FUEL FILTER $119.36 To Order
Photo Part No Description Price (each) Stock
LR023057 HEATER - FUEL $144.79 To Order
Photo Part No Description Price (each) Stock
LR036751 TUBE - FUEL RETURN $68.34 To Order
Photo Part No Description Price (each) Stock
LR036718 TUBE - FUEL RETURN $46.88 To Order
Photo Part No Description Price (each) Stock
LR036752 TUBE - FUEL FILTER TO FUEL PUMP $146.36 To Order
Photo Part No Description Price (each) Stock
LR081537 GROMMET - ADAPTOR TO BRACKET $8.85 To Order
Photo Part No Description Price (each) Stock
LR045807 FILTER - FUEL - PRIMARY $583.72 To Order
LR072565 FILTER - FUEL - PRIMARY $661.23 To Order
LR072684 FILTER - FUEL - PRIMARY $606.78 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR023046 CLIP - FUEL PIPE SECURING $7.74 To Order
Photo Part No Description Price (each) Stock
LR040124 CLIP $3.90 To Order
Photo Part No Description Price (each) Stock
LR040125 CLIP - FUEL PIPE SECURING $4.47 To Order
Photo Part No Description Price (each) Stock
LR037447 TUBE - FUEL FEED $47.33 To Order
Photo Part No Description Price (each) Stock
LR040244 TUBE - FUEL FEED $41.37 To Order
View All

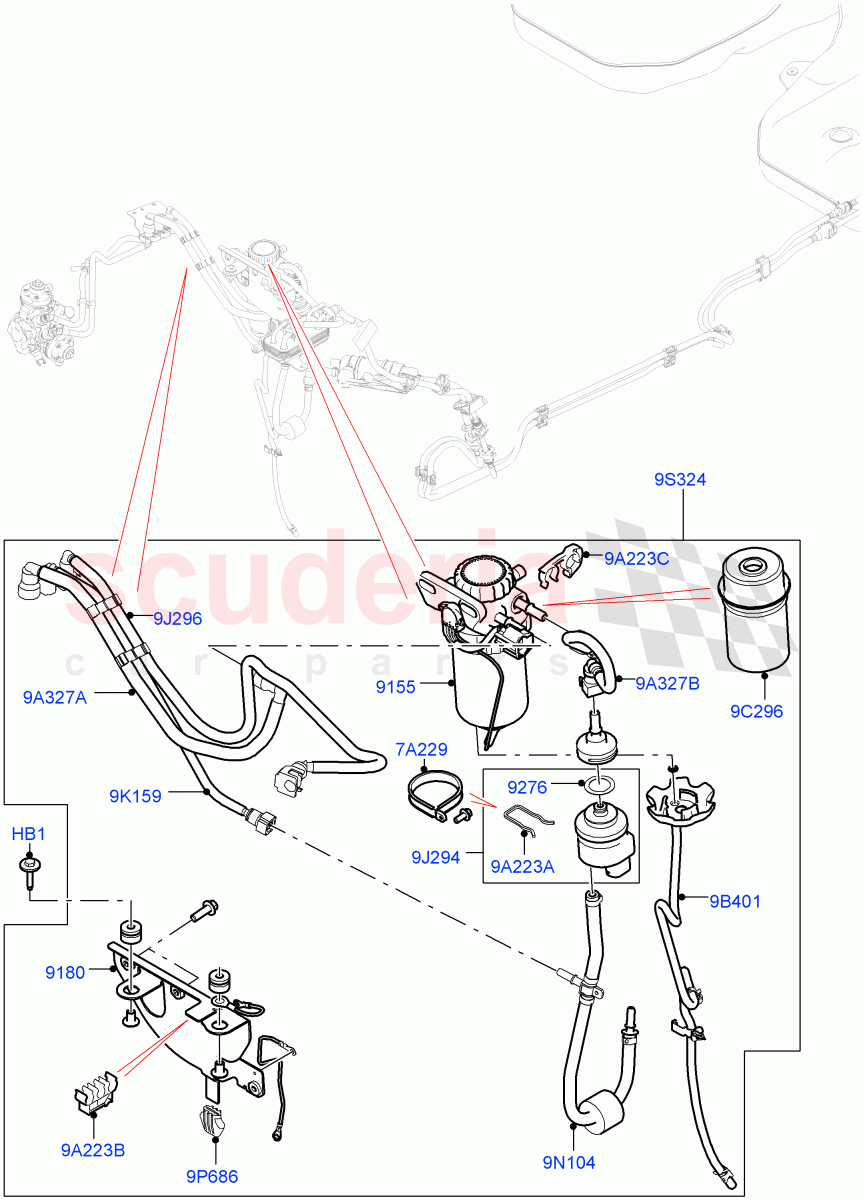

Fuel Lines (Front) (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB106066
BOLT
M6 x 30MM
IN STOCK 		$0.63 2
7A229 LR023066
BRACKET - FUEL PUMP
Heater 		$6.74 1
9A223A LR023046
CLIP - FUEL PIPE SECURING
Heater 		$7.74 1
9A223B LR040124
CLIP
Triple 		$3.90 1
9A223C LR040125
CLIP - FUEL PIPE SECURING
For Fuel Tube 		$4.47 1
9A327A LR037447
TUBE - FUEL FEED
Fuel Filter To High Pressure Pump 		$47.33 1
9A327B LR040244
TUBE - FUEL FEED
From Heater To Fuel Filter 		$41.37 1
9B401 LR040126
TUBE - DRAIN
Drain, Less Sensor 		$49.15 1
9C296 LR072610
ELEMENT - FUEL FILTER
For Fuel Filter, Includes O-Ring / To: FA627930 		$119.36 1
9C296 LR072610
ELEMENT - FUEL FILTER
For Fuel Filter, Includes O-Ring / From: FA627931 		$119.36 1
9J294 LR023057
HEATER - FUEL 		$144.79 1
9J296 LR036751
TUBE - FUEL RETURN
From Engine To Fuel Cooler, Return 		$68.34 1
9K159 LR036718
TUBE - FUEL RETURN 		$46.88 1
9N104 LR036752
TUBE - FUEL FILTER TO FUEL PUMP 		$146.36 1
9P686 LR081537
GROMMET - ADAPTOR TO BRACKET 		$8.85 1
9S324 LR045807
FILTER - FUEL - PRIMARY
Complete Assembly, Primary / To: FA520953 		$583.72 1
9S324 LR072565
FILTER - FUEL - PRIMARY
Complete Assembly, Primary / From: GA000001 / To: GA566419 		$661.23 1
9S324 LR072684
FILTER - FUEL - PRIMARY
Complete Assembly, Primary / From: FA520954 / To: FA999999 		$606.78 1
9S324 LR081086
FILTER - FUEL - PRIMARY
Complete Assembly, Primary / From: GA566420 		$668.58 1
9155 LR106271
FILTER - FUEL - PRIMARY
4.4L DOHC DITC V8 Diesel 		$322.45 1
9180 LR036725
BRACKET - FUEL FILTER
To: FA999999 		$31.70 1
9180 LR072566
BRACKET - FUEL FILTER
From: GA000001 		$34.67 1
9276 LR023060
GASKET - EGR COOLER
Heater 		$3.46 1
