Find Your Part

View All

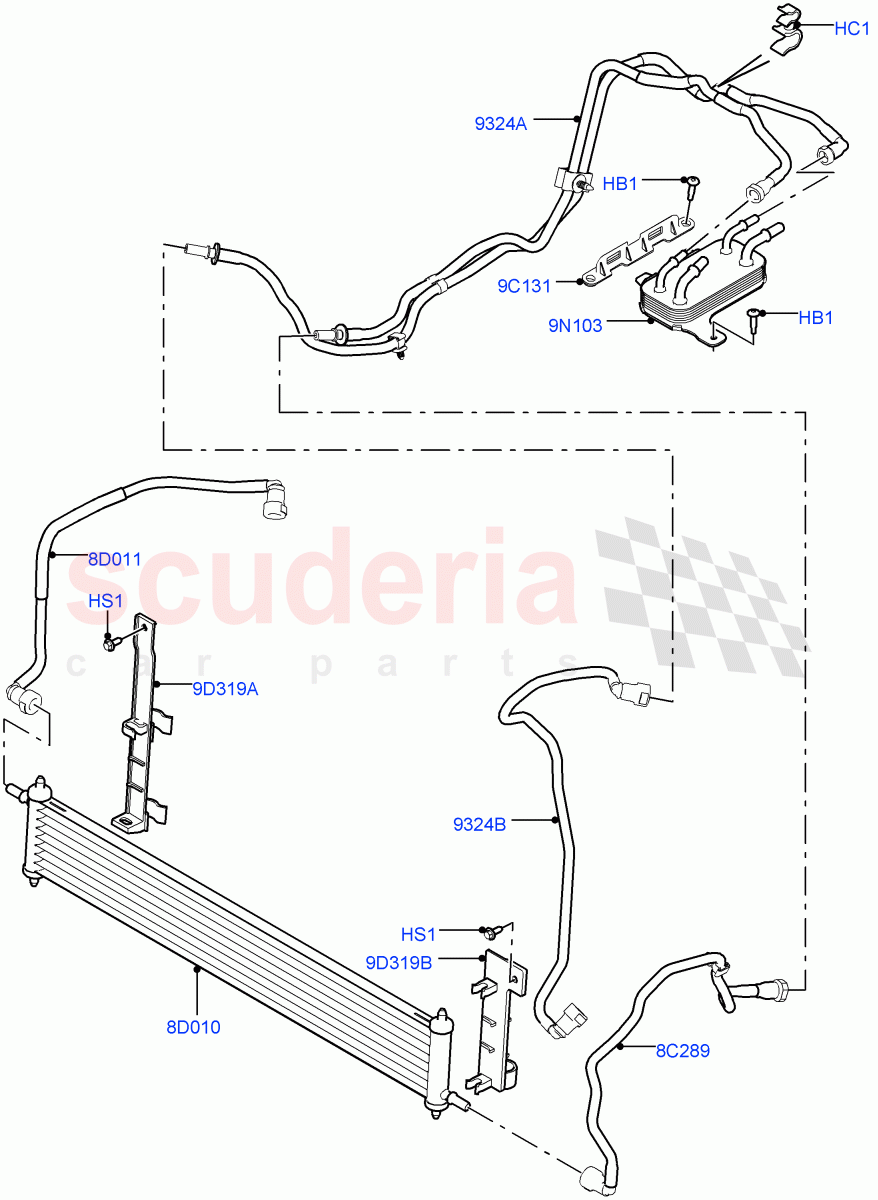

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024832	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP500070	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035628	HOSE - ENGINE COOLANT RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034575	RADIATOR - AUXILIARY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035634	HOSE - FUEL COOLER INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036520	HOSE - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036521	HOSE - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042509	BRACKET - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038811	COOLER - FUEL	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX M6 x 19MM, Torx	-	3	Enquire
HC1	LR024832	CLIP	LR024832 CLIP 6-6.5 + 9.5-10.5 Pipe Swivel Plastic, Double	-	1	Enquire
HS1	PYP500070	SCREW	PYP500070 SCREW 6 x 16MM, Hexagonal Head	-	2	Enquire
8C289	LR035628	HOSE - ENGINE COOLANT RETURN	LR035628 HOSE - ENGINE COOLANT RETURN Fuel Coolant Cooler, Outlet	-	1	Enquire
8D010	LR034575	RADIATOR - AUXILIARY	LR034575 RADIATOR - AUXILIARY Fuel Coolant Cooler	-	1	Enquire
8D011	LR035634	HOSE - FUEL COOLER INLET	LR035634 HOSE - FUEL COOLER INLET Fuel Coolant Cooler, Inlet	-	1	Enquire
9C131	LR042509	BRACKET - FUEL COOLER	LR042509 BRACKET - FUEL COOLER For Fuel Cooler	-	1	Enquire
9D319A	LR034561	BRACKET - RADIATOR	LR034561 BRACKET - RADIATOR RH, Radiator Mounting / To: KA849406	-	1	Enquire
9D319A	LR126009	BRACKET	LR126009 BRACKET RH, Radiator Mounting / From: KA849407	-	1	Enquire
9D319B	LR034559	BRACKET - RADIATOR	LR034559 BRACKET - RADIATOR LH, Radiator Mounting / To: KA849406	-	1	Enquire
9D319B	LR126008	BRACKET - RADIATOR	LR126008 BRACKET - RADIATOR LH, Radiator Mounting / From: KA849407	-	1	Enquire
9N103	LR038811	COOLER - FUEL	LR038811 COOLER - FUEL Main	-	1	Enquire
9324A	LR036520	HOSE - FUEL COOLER	LR036520 HOSE - FUEL COOLER Fuel Cooler Inlet, Outlet, Set Of 2 Pieces	-	1	Enquire
9324B	LR036521	HOSE - FUEL COOLER	LR036521 HOSE - FUEL COOLER	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Fuel Cooler Assembly (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]
