Oil Pan/Oil Level Indicator (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Oil Pan/Oil Level Indicator (4.4L DOHC DITC V8 Diesel)

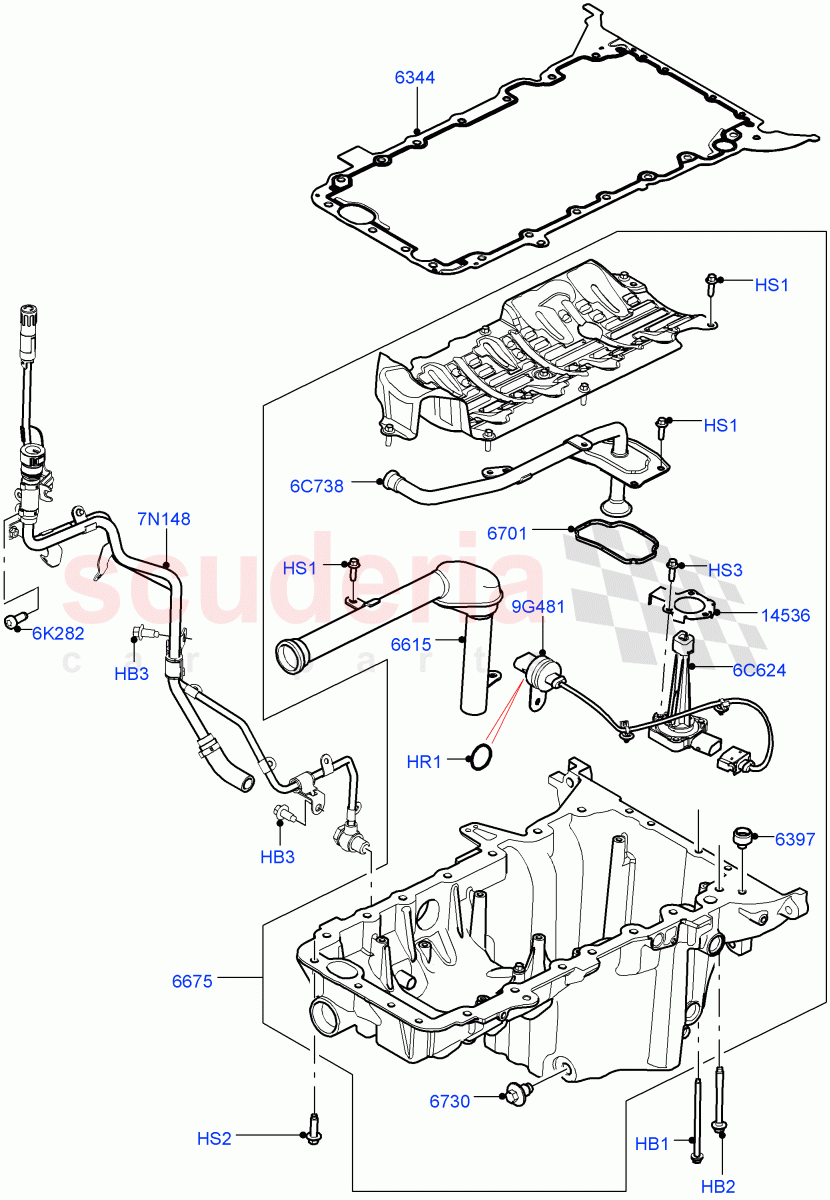

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1225745	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1419374	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1310106	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096214	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500360	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4540794	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYP500070	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094141	GASKET - OIL PAN	Enquire	To Order
	LR094141	GASKET - OIL PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022900	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035120	TUBE - OIL PUMP INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096523	PAN - ENGINE OIL	Enquire	To Order
	LR082698	PAN - ENGINE OIL	Enquire	To Order
	LR088997	PAN - ENGINE OIL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR035122	GASKET - SCAVENGER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4594914	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086422	RETAINER - OIL PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012640	SENSOR - OIL LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038621	COVER AND TUBE - SCAVENGE RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023016	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052352	TUBE - OIL	Enquire	To Order
	LR125945	TUBE - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035123	WIRE - OIL LEVEL SENSOR	Enquire	To Order
	LR088999	LEAD - OIL LEVEL SENSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1225745	BOLT AND WASHER - HEX.HEAD	1225745 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M6 X 105MM	-	4	Enquire
HB2	1419374	BOLT	1419374 BOLT M8 X 75MM	-	1	Enquire
HB3	1310106	BOLT - HEX.HEAD	1310106 BOLT - HEX.HEAD HEX Flange, M8 X 14MM	-	2	Enquire
HR1	LR096214	RING - SEALING	LR096214 RING - SEALING Wiring Connector	-	2	Enquire
HS1	KYP500360	SCREW	KYP500360 SCREW M6 X 20MM	-	19	Enquire
HS2	4540794	SCREW	4540794 SCREW M8 X 25MM, Oil Pan	-	15	Enquire
HS3	SYP500070	BOLT - FLANGED HEX.	SYP500070 BOLT - FLANGED HEX. HEX Flange, M6 x 30MM, Sensor - Oil Level	-	3	Enquire
6C624	LR012640	SENSOR - OIL LEVEL	LR012640 SENSOR - OIL LEVEL	-	1	Enquire
6C738	LR038621	COVER AND TUBE - SCAVENGE RESERVOIR	LR038621 COVER AND TUBE - SCAVENGE RESERVOIR	-	1	Enquire
6K282	LR023016	BOLT	LR023016 BOLT M10 X 20MM	-	1	Enquire
7N148	LR052352	TUBE - OIL	LR052352 TUBE - OIL Scavenger Pipe, Tube - Oil Extraction / To: KA833748	-	1	Enquire
7N148	LR125945	TUBE - OIL	LR125945 TUBE - OIL Scavenger Pipe, Tube - Oil Extraction / From: KA833749	-	1	Enquire
9G481	LR035123	WIRE - OIL LEVEL SENSOR	LR035123 WIRE - OIL LEVEL SENSOR Sensor - Oil Level / To: FA541964	-	1	Enquire
9G481	LR088999	LEAD - OIL LEVEL SENSOR	LR088999 LEAD - OIL LEVEL SENSOR Sensor - Oil Level / From: FA541965	-	1	Enquire
6344	LR094141	GASKET - OIL PAN	LR094141 GASKET - OIL PAN Oil Pan / To: FA999999	-	1	Enquire
6344	LR094141	GASKET - OIL PAN	LR094141 GASKET - OIL PAN Oil Pan / From: GA000001	-	1	Enquire
6397	LR022900	DOWEL	LR022900 DOWEL Oil Pan	-	2	Enquire
6615	LR035120	TUBE - OIL PUMP INLET	LR035120 TUBE - OIL PUMP INLET	-	1	Enquire
6675	LR096523	PAN - ENGINE OIL	LR096523 PAN - ENGINE OIL To: FA541942	-	1	Enquire
6675	LR082698	PAN - ENGINE OIL	LR082698 PAN - ENGINE OIL From: FA541943 / To: GA555399	-	1	Enquire
6675	LR088997	PAN - ENGINE OIL	LR088997 PAN - ENGINE OIL From: GA555400 / To: HA138489	-	1	Enquire
6675	LR096523	PAN - ENGINE OIL	LR096523 PAN - ENGINE OIL From: HA138490	-	1	Enquire
6701	LR035122	GASKET - SCAVENGER PIPE	LR035122 GASKET - SCAVENGER PIPE Cover Scavenge Reservoir	-	1	Enquire
6730	4594914	PLUG - OIL DRAIN	4594914 PLUG - OIL DRAIN M14 X 1.5	-	1	Enquire
14536	LR086422	RETAINER - OIL PAN	LR086422 RETAINER - OIL PAN Sensor - Oil Level	-	1	Enquire
