Find Your Part

View All

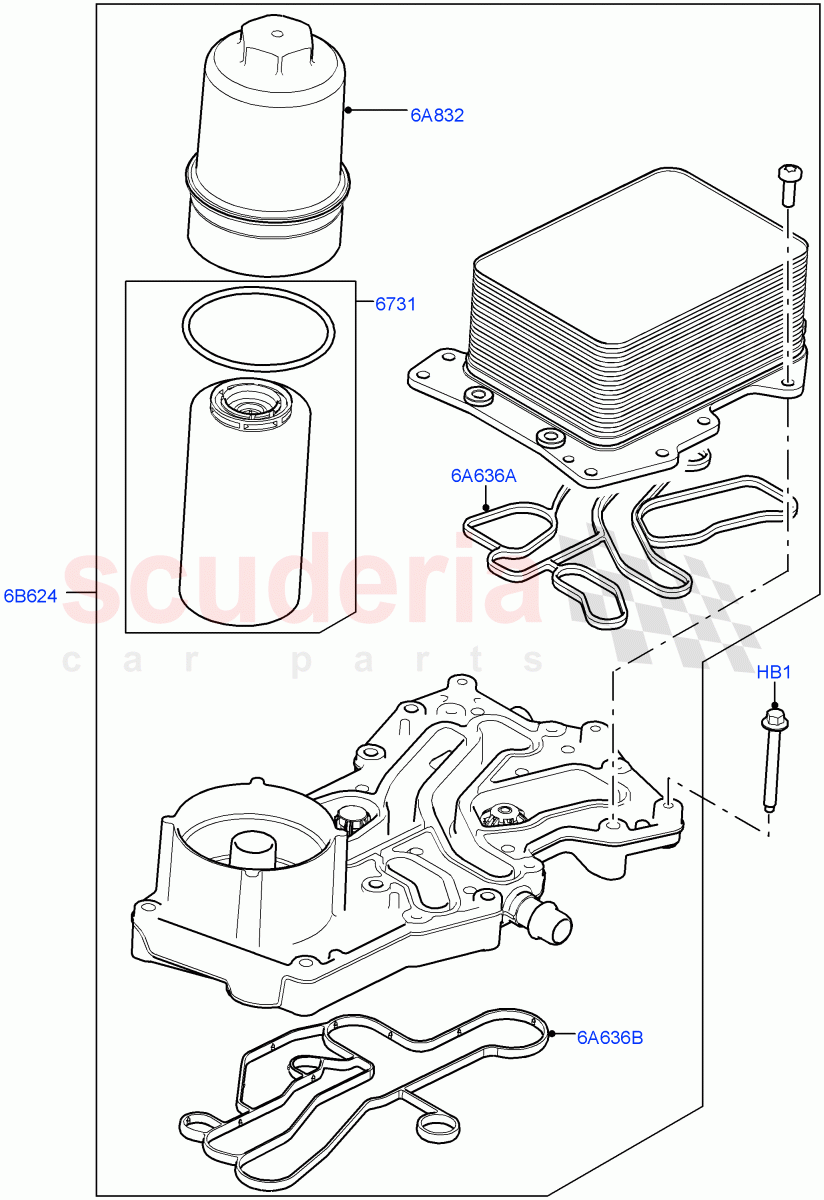

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4537592	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022896	FILTER - OIL - ELEMENT AND SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023041	COVER - OIL FILTER HOUSING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	4537592	BOLT - HEX.HEAD	4537592 BOLT - HEX.HEAD M6 x 50MM	-	10	Enquire
6A636A	LR113004	GASKET - OIL COOLER	LR113004 GASKET - OIL COOLER From Oil Filter Housing To Oil Cooler / From: LA000001	-	1	Enquire
6A636A	LR113004	GASKET - OIL COOLER	LR113004 GASKET - OIL COOLER From Oil Filter Housing To Oil Cooler / To: KA999999	-	1	Enquire
6A636B	LR113003	GASKET - OIL FILTER	LR113003 GASKET - OIL FILTER Oil Filter Housing / From: LA000001	-	1	Enquire
6A636B	LR113003	GASKET - OIL FILTER	LR113003 GASKET - OIL FILTER Oil Filter Housing / To: KA999999	-	1	Enquire
6A832	LR023041	COVER - OIL FILTER HOUSING	LR023041 COVER - OIL FILTER HOUSING Oil Filter Housing	-	1	Enquire
6B624	LR022895	OIL FILTER AND COOLER	LR022895 OIL FILTER AND COOLER Includes Oil Filter And Oil Cooler / To: KA999999	-	1	Enquire
6B624	LR113200	OIL FILTER AND COOLER	LR113200 OIL FILTER AND COOLER Includes Oil Filter And Oil Cooler, Includes Upgraded Gaskets / From: LA000001	-	1	Enquire
6731	LR022896	FILTER - OIL - ELEMENT AND SEAL	LR022896 FILTER - OIL - ELEMENT AND SEAL Includes "O" Ring	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Oil Cooler And Filter (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]
