Vacuum Control And Air Injection (4.4L DOHC DITC V8 Diesel, LHD) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Vacuum Control And Air Injection (4.4L DOHC DITC V8 Diesel, LHD) ((V) FROMHA000001)

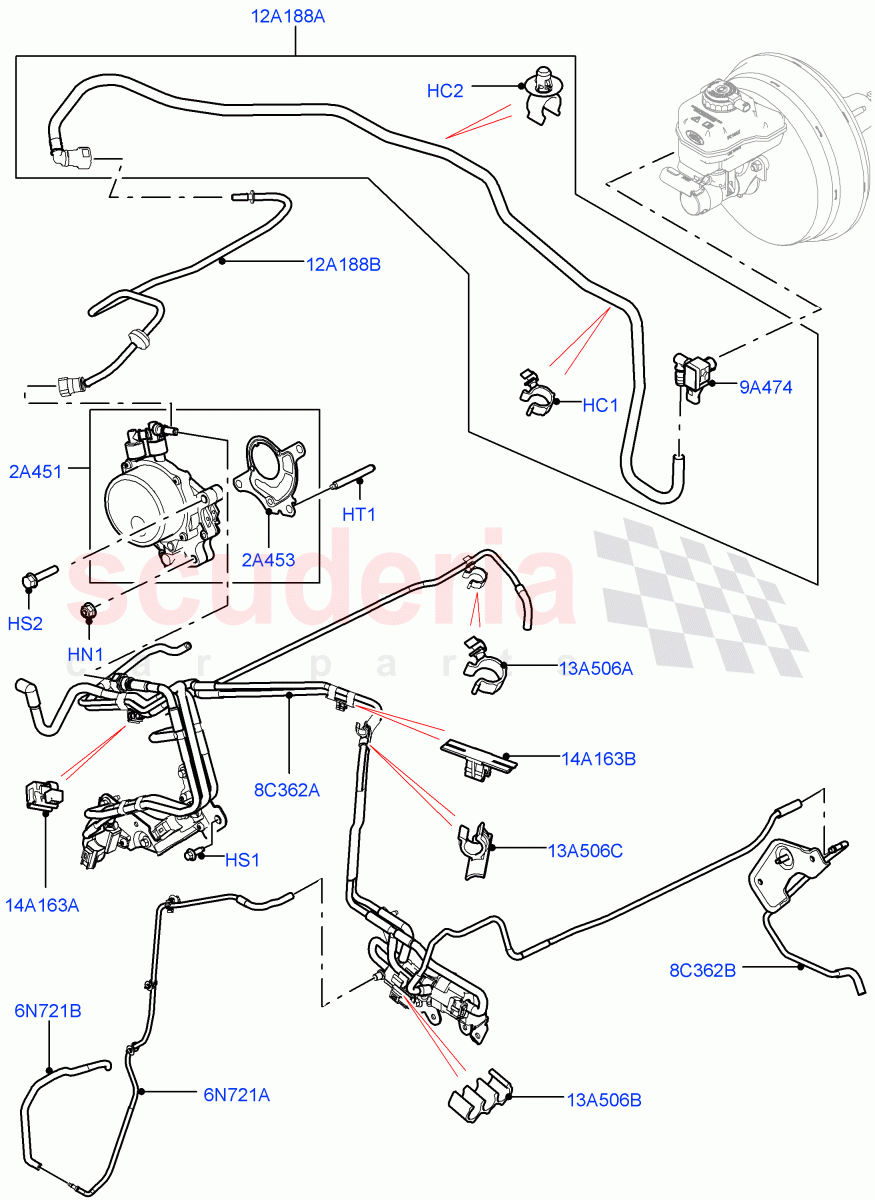

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000395	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087667	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020696	NUT - ADJUSTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020697	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022998	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083155	LR083155	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082928	GASKET - VACUUM PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081631	SENSOR - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036071	PIPE - VAC CONTROL TO TURBO VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036072	PIPE - VAC CONTROL TO TURBO VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076025	HOSE - VACUUM CONTROL HARNESS	Enquire	To Order
	LR114561	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022849	HOSE - VACUUM CONTROL HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081608	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048195	MANIFOLD - VACUUM SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022843	CLIP - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022844	CLIP - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021921	CLIP - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022964	RETAINER - VACUUM HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022966	RETAINER - VACUUM HOSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR000395	CLIP - DOUBLE	LR000395 CLIP - DOUBLE To Vacuum Hose / From: HA000001	-	1	Enquire
HC2	LR087667	CLIP - SPECIAL	LR087667 CLIP - SPECIAL To Vacuum Hose / From: HA000001	-	1	Enquire
HN1	LR020696	NUT - ADJUSTING	LR020696 NUT - ADJUSTING M8, To Vacuum Pump / From: HA000001	-	1	Enquire
HS1	RYG500190	SCREW	RYG500190 SCREW Bracket, Hexagonal Head, M6 X 16MM, Main Vacuum Harness / From: HA000001	-	8	Enquire
HS2	LR020697	SCREW	LR020697 SCREW M8 x 40MM, To Vacuum Pump / From: HA000001	-	2	Enquire
HT1	LR022998	STUD	LR022998 STUD To Vacuum Pump / From: HA000001	-	1	Enquire
2A451	LR083155	LR083155	LR083155 LR083155 From: HA000001	-	1	Enquire
2A453	LR082928	GASKET - VACUUM PUMP	LR082928 GASKET - VACUUM PUMP To Vacuum Pump / From: HA000001	-	1	Enquire
6N721A	LR036071	PIPE - VAC CONTROL TO TURBO VALVE	LR036071 PIPE - VAC CONTROL TO TURBO VALVE Compressed Air Recirculation And Shut Off Valve, Upper, Vacuum Control / From: HA000001	-	1	Enquire
6N721B	LR036072	PIPE - VAC CONTROL TO TURBO VALVE	LR036072 PIPE - VAC CONTROL TO TURBO VALVE Compressed Air Recirculation And Shut Off Valve, Lower, Vacuum Control / From: HA000001	-	1	Enquire
8C362A	LR076025	HOSE - VACUUM CONTROL HARNESS	LR076025 HOSE - VACUUM CONTROL HARNESS Engine Vacuum Harness, Includes Valves, Vacuum Control Harness / From: HA000001 / To: JA188025	-	1	Enquire
8C362A	LR114561	HOSE	LR114561 HOSE Engine Vacuum Harness, Includes Valves, Vacuum Control Harness / From: JA188026	-	1	Enquire
8C362B	LR022849	HOSE - VACUUM CONTROL HARNESS	LR022849 HOSE - VACUUM CONTROL HARNESS Turbocharger, Vacuum / From: HA000001	-	1	Enquire
9A474	LR081631	SENSOR - VACUUM	LR081631 SENSOR - VACUUM From: HA000001	-	1	Enquire
12A188A	LR081608	HOSE - VACUUM	LR081608 HOSE - VACUUM To Brake Booster / From: HA000001	-	1	Enquire
12A188B	LR048195	MANIFOLD - VACUUM SUPPLY	LR048195 MANIFOLD - VACUUM SUPPLY To Vacuum Pump / From: HA000001	-	1	Enquire
13A506A	LR022843	CLIP - WIRING	LR022843 CLIP - WIRING To Vacuum Hose / From: HA000001	-	1	Enquire
13A506B	LR022844	CLIP - WIRING	LR022844 CLIP - WIRING Valve - Vacuum Control / From: HA000001	-	1	Enquire
13A506C	LR021921	CLIP - WIRING	LR021921 CLIP - WIRING Main Vacuum Harness / From: HA000001	-	1	Enquire
14A163A	LR022964	RETAINER - VACUUM HOSE	LR022964 RETAINER - VACUUM HOSE Main Vacuum Harness / From: HA000001	-	1	Enquire
14A163B	LR022966	RETAINER - VACUUM HOSE	LR022966 RETAINER - VACUUM HOSE Main Vacuum Harness / From: HA000001	-	1	Enquire
