Emission Control - Crankcase (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Emission Control - Crankcase (4.4L DOHC DITC V8 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR023103 CLAMP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
4558527 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR023353 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR037749 TUBE - CRANKCASE VENTILATION Enquire To Order
LR042466 TUBE - CRANKCASE VENTILATION Enquire To Order
Photo Part No Description Price (each) Stock
LR022907 SEPARATOR - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR043719 HOSE - OIL SEPARATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR022761 RESERVOIR - OIL SEPARATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR042450 COVER - INSULATOR Enquire To Order
View All

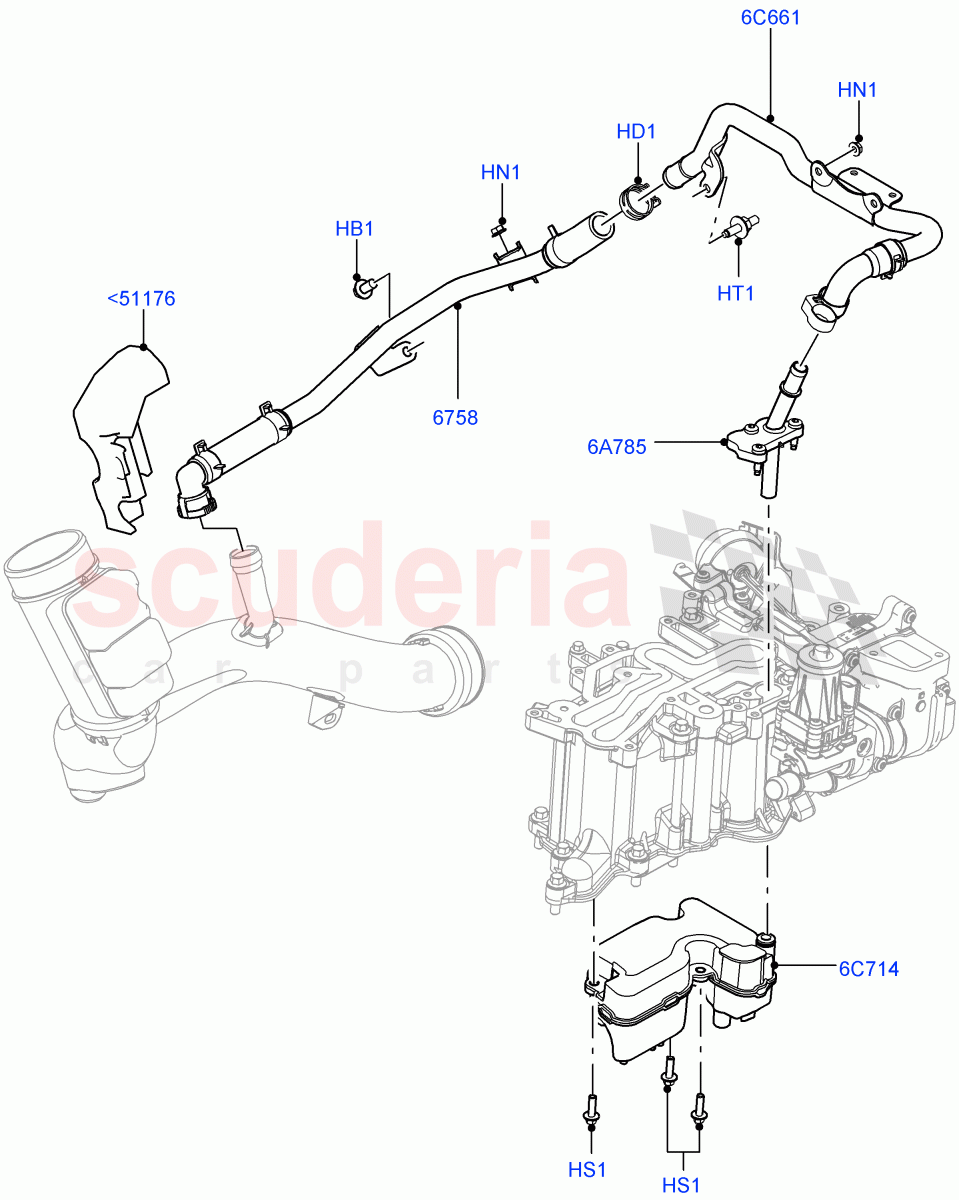

Emission Control - Crankcase (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<51176 LR042450
COVER - INSULATOR
Engine Vent Hose - Insulated Extrem 		- 1 Enquire
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM, Ventilation Tube 		- 1 Enquire
HD1 LR023103
CLAMP - HOSE
Ventilation Tube 		- 1 Enquire
HN1 FN106042
NUT
Hexagonal Head, M6, Ventilation Tube 		- 3 Enquire
HS1 4558527
SCREW
M6 X 20MM, Reservoir 		- 3 Enquire
HT1 LR023353
STUD
Ventilation Tube 		- 1 Enquire
6A785 LR022907
SEPARATOR - OIL
Outlet Tube, With Fixing Parts, With Gasket 		- 1 Enquire
6C661 LR043719
HOSE - OIL SEPARATOR
Engine Ventilation, From Separator To Inlet Hose 		- 1 Enquire
6C714 LR022761
RESERVOIR - OIL SEPARATOR
Oil Separator 		- 1 Enquire
6758 LR037749
TUBE - CRANKCASE VENTILATION
Engine Vent Hose / Engine Ventilation, To Turbocharger Inlet Hose 		- 1 Enquire
6758 LR042466
TUBE - CRANKCASE VENTILATION
Engine Vent Hose - Insulated Extrem / Engine Ventilation, To Turbocharger Inlet Hose 		- 1 Enquire
