Name: Cooling System Pipes And Hoses (4.4L DOHC DITC V8 Diesel, Active Tranmission Warming) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (4.4L DOHC DITC V8 Diesel, Active Tranmission Warming) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Cooling System Pipes And Hoses (4.4L DOHC DITC V8 Diesel, Active Tranmission Warming) ((V)...

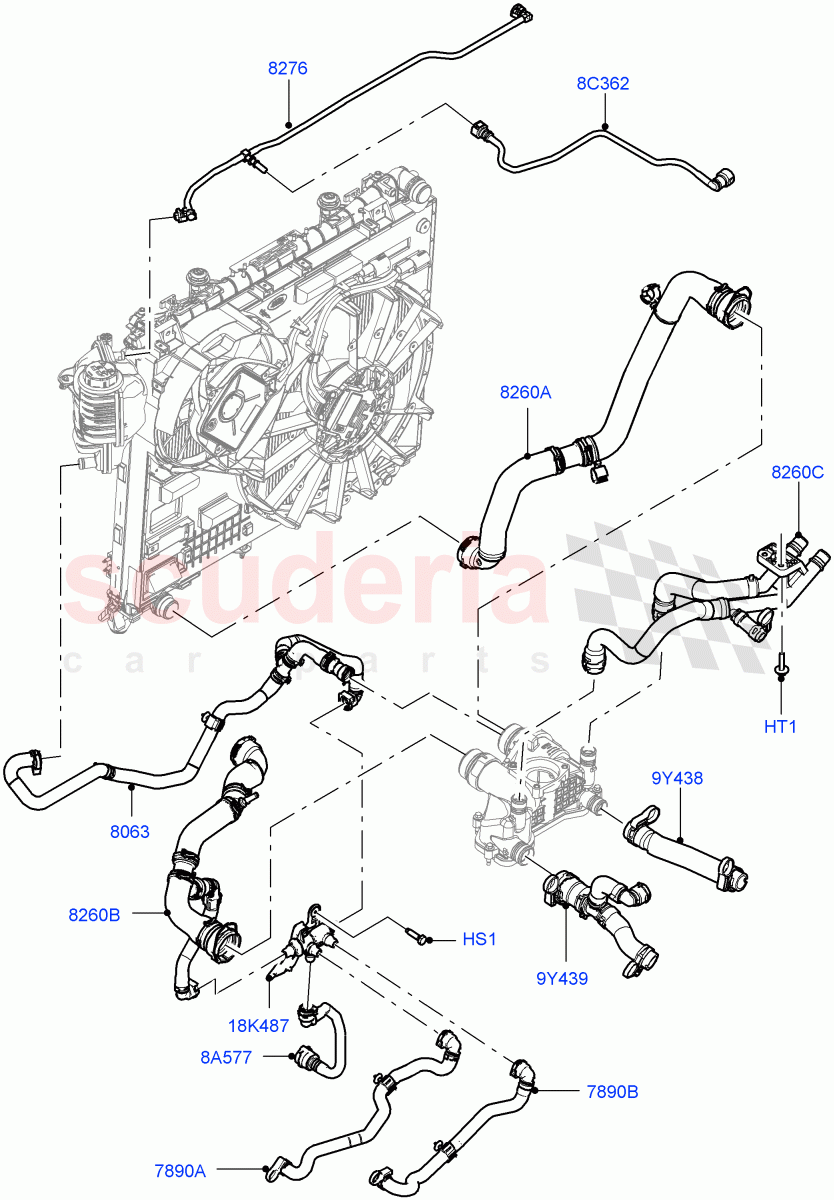

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR087572	STUD	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113241	HOSE - WATER	$198.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146301	HOSE - RADIATOR TO ENGINE VENT ELBOW	$21.73	IN STOCK
	LR146301	HOSE - RADIATOR TO ENGINE VENT ELBOW	$21.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR113145	HOSE - OIL COOLER	$103.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113146	TUBE - OIL COOLER	$103.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113143	HOSE - RADIATOR	$157.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113134	HOSE - RADIATOR	$237.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022730	HOSE WITH CONNECTOR - HEATER LINE	$51.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR113150	HOSE - COOLING SYSTEM	$107.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035632	HOSE - RADIATOR VENTILATION	$12.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022717	HOSE - EGR COOLER	$24.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022718	HOSE - EGR COOLER	$37.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR116650	VALVE - COOLANT FLOW CONTROL	$114.13	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$0.92	1
HT1	LR087572	STUD	LR087572 STUD M6 X 25 + M6 X 10 / From: KA000001	$2.39	2
8A577	LR113150	HOSE - COOLING SYSTEM	LR113150 HOSE - COOLING SYSTEM Valve To Low Temperature Radiator / From: KA000001	$107.80	1
8C362	LR035632	HOSE - RADIATOR VENTILATION	LR035632 HOSE - RADIATOR VENTILATION Engine Degas Line / From: KA000001	$12.67	1
9Y438	LR022717	HOSE - EGR COOLER	LR022717 HOSE - EGR COOLER EGR Cooler Inlet / From: KA000001	$24.76	1
9Y439	LR022718	HOSE - EGR COOLER IN STOCK	LR022718 HOSE - EGR COOLER EGR Cooler Outlet / From: KA000001 IN STOCK	$37.64	1
18K487	LR116650	VALVE - COOLANT FLOW CONTROL	LR116650 VALVE - COOLANT FLOW CONTROL From: KA000001	$114.13	1
7890A	LR113145	HOSE - OIL COOLER	LR113145 HOSE - OIL COOLER Hose Transmission Oil Cooler Inlet / From: KA000001	$103.97	1
7890B	LR113146	TUBE - OIL COOLER	LR113146 TUBE - OIL COOLER Oil Cooler Outlet Pipe / From: KA000001	$103.97	1
8063	LR113241	HOSE - WATER	LR113241 HOSE - WATER Engine To Radiator Supply Tank / From: KA000001	$198.87	1
8260A	LR113143	HOSE - RADIATOR	LR113143 HOSE - RADIATOR Bottom, Radiator / From: KA000001	$157.79	1
8260B	LR113134	HOSE - RADIATOR	LR113134 HOSE - RADIATOR Radiator, Top / From: KA000001	$237.84	1
8260C	LR022730	HOSE WITH CONNECTOR - HEATER LINE IN STOCK	LR022730 HOSE WITH CONNECTOR - HEATER LINE Hose With Connector - Heater Line, Matrix Heater Supply And Return / From: KA000001 IN STOCK	$51.03	1
8276	LR146301	HOSE - RADIATOR TO ENGINE VENT ELBOW IN STOCK	LR146301 HOSE - RADIATOR TO ENGINE VENT ELBOW Radiator Degas Line / From: KA000001 / To: MA788678 IN STOCK	$21.73	1
8276	LR146301	HOSE - RADIATOR TO ENGINE VENT ELBOW IN STOCK	LR146301 HOSE - RADIATOR TO ENGINE VENT ELBOW Radiator Degas Line / From: MA788679 IN STOCK	$21.73	1
