Cooling System Pipes And Hoses (4.4L Dohc Ditc V8 Diesel) ((V) Toja999999)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Cooling System Pipes And Hoses (4.4L DOHC DITC V8 Diesel) ((V) TOJA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR087572 STUD $2.39 To Order
Photo Part No Description Price (each) Stock
LR146301 HOSE - RADIATOR TO ENGINE VENT ELBOW $21.73 IN STOCK
Photo Part No Description Price (each) Stock
LR080120 HOSE - RADIATOR $224.32 IN STOCK
Photo Part No Description Price (each) Stock
LR034626 HOSE - HEATER WATER $25.33 To Order
Photo Part No Description Price (each) Stock
LR034643 HOSE - RADIATOR $30.55 To Order
LR080119 HOSE - RADIATOR $68.86 ARRIVING SOON
Photo Part No Description Price (each) Stock
LR034629 HOSE - WATER $17.26 To Order
LR072668 HOSE - WATER $55.99 To Order
LR080118 HOSE - WATER $205.56 IN STOCK
Photo Part No Description Price (each) Stock
LR022730 HOSE WITH CONNECTOR - HEATER LINE $51.03 IN STOCK
Photo Part No Description Price (each) Stock
LR035632 HOSE - RADIATOR VENTILATION $12.67 To Order
Photo Part No Description Price (each) Stock
LR022717 HOSE - EGR COOLER $24.76 To Order
Photo Part No Description Price (each) Stock
LR022718 HOSE - EGR COOLER $37.64 IN STOCK
Photo Part No Description Price (each) Stock
LR026206 STRAP - CABLE $0.58 To Order
View All

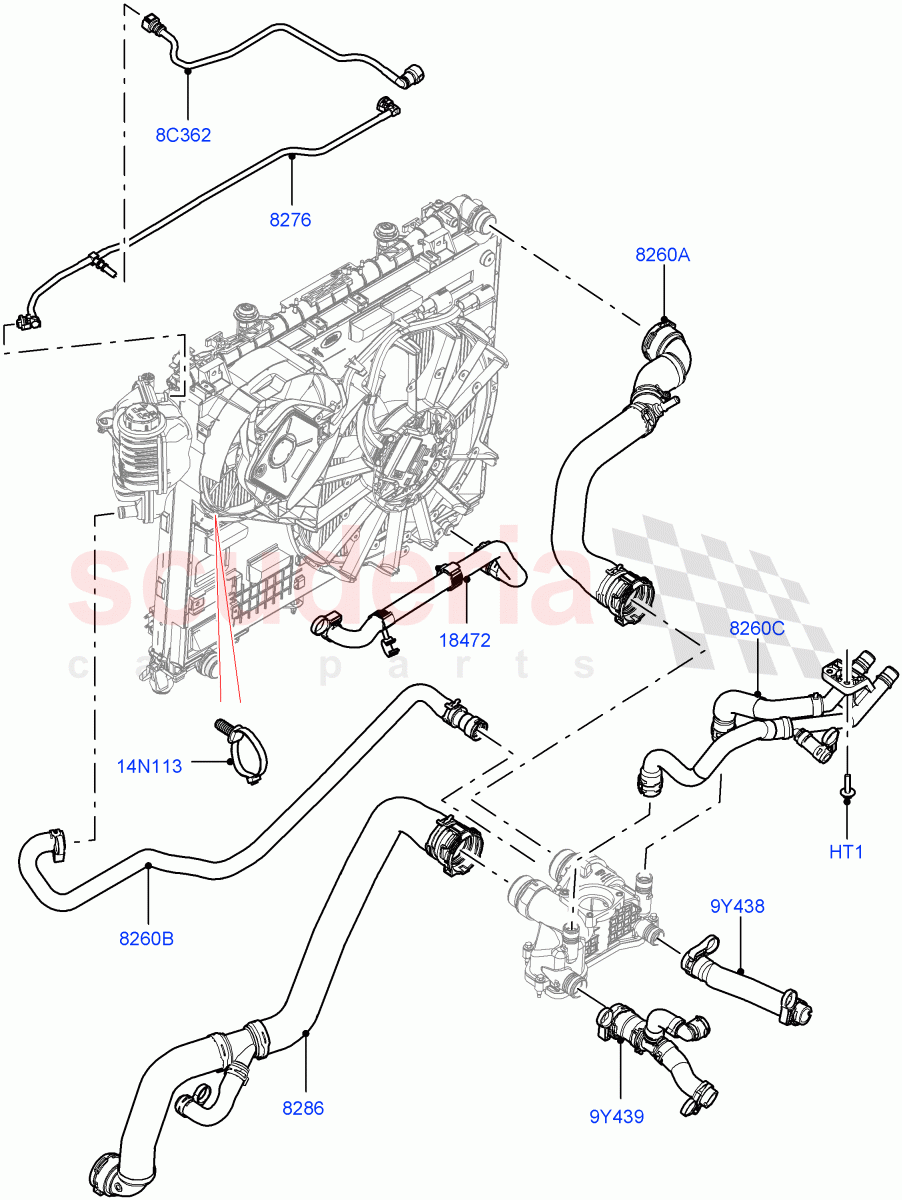

Cooling System Pipes And Hoses (4.4L DOHC DITC V8 Diesel) ((V) TOJA999999) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HT1 LR087572
STUD
M6 X 25 + M6 X 10 		$2.39 2
8C362 LR035632
HOSE - RADIATOR VENTILATION
Engine Degas Line 		$12.67 1
9Y438 LR022717
HOSE - EGR COOLER
EGR Cooler Inlet 		$24.76 1
9Y439 LR022718
HOSE - EGR COOLER
EGR Cooler Outlet
IN STOCK 		$37.64 1
14N113 LR026206
STRAP - CABLE 		$0.58 1
8260A LR034643
HOSE - RADIATOR
Radiator, Top / To: GA566160 		$30.55 1
8260A LR080119
HOSE - RADIATOR
Radiator, Top / From: GA566161
ARRIVING SOON 		$68.86 1
8260B LR034629
HOSE - WATER
Expansion Reservoir To Thermostat / To: FA537236 		$17.26 1
8260B LR072668
HOSE - WATER
Expansion Reservoir To Thermostat / From: FA537237 / To: GA566160 		$55.99 1
8260B LR080118
HOSE - WATER
Expansion Reservoir To Thermostat / From: GA566161
IN STOCK 		$205.56 1
8260C LR022730
HOSE WITH CONNECTOR - HEATER LINE
Hose With Connector - Heater Line, Matrix Heater Supply And Return
IN STOCK 		$51.03 1
8276 LR146301
HOSE - RADIATOR TO ENGINE VENT ELBOW
Radiator Degas Line
IN STOCK 		$21.73 1
8286 LR080120
HOSE - RADIATOR
Bottom, Radiator
IN STOCK 		$224.32 1
18472 LR034626
HOSE - HEATER WATER
From Transmission Oil Cooler To Radiator 		$25.33 1
