Exhaust Manifold (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Exhaust Manifold (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

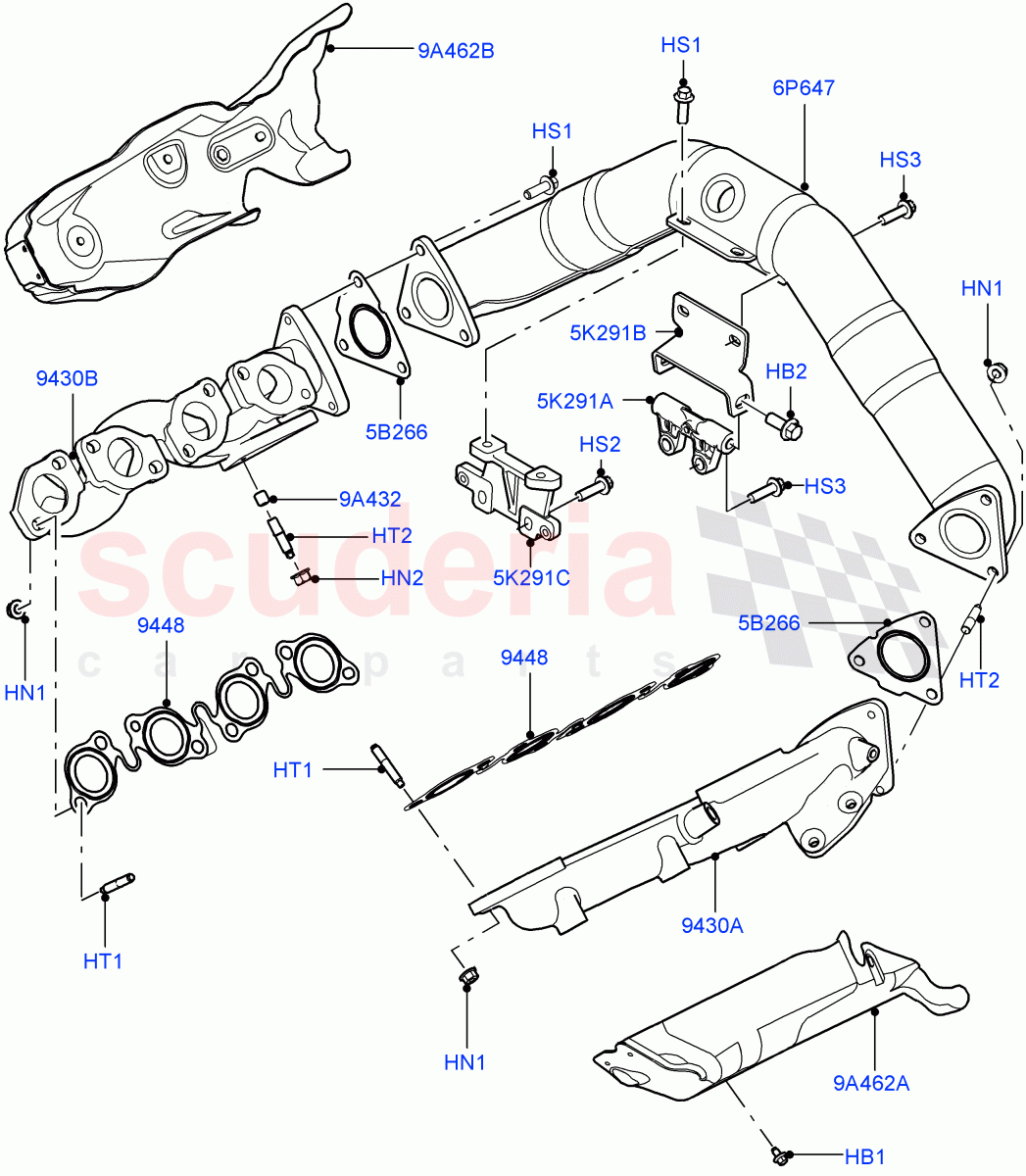

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR014200	BOLT - HEX.HEAD	Enquire	To Order
	LR113015	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110256	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038607	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122427	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4540794	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108306	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020695	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113358	STUD	Enquire	To Order
	LR113358	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022802	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022724	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034006	PIPE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038334	MANIFOLD - EXHAUST	Enquire	To Order
	LR112871	MANIFOLD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022722	MANIFOLD - EXHAUST	Enquire	To Order
	LR112869	MANIFOLD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022800	SPACER - EXHAUST MANIFOLD FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022785	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022786	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022753	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036055	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038177	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR014200	BOLT - HEX.HEAD	LR014200 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 10MM / To: JA188022	-	4	Enquire
HB1	LR113015	BOLT - HEX.HEAD	LR113015 BOLT - HEX.HEAD Bolt And Washer, Heat Shield, M6 x 8mm / From: JA188023	-	4	Enquire
HB2	FS110256	BOLT - FLANGED HEX.	FS110256 BOLT - FLANGED HEX. Bracket, Crossover, M10 X 25MM	-	2	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8 / To: JA193550	-	17	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8 / From: JA193551	-	17	Enquire
HN2	LR038607	NUT	LR038607 NUT M8, Turbocharger Inlet	-	3	Enquire
HS1	LR122427	BOLT	LR122427 BOLT Crossover, Exhaust pipe, M8 X 25MM	-	7	Enquire
HS2	4540794	SCREW	4540794 SCREW Bracket, Crossover, M8 X 25MM	-	2	Enquire
HS3	FS108306	SCREW	FS108306 SCREW Bracket, Crossover, M8 x 30MM	-	4	Enquire
HT1	LR020695	STUD	LR020695 STUD M8 x 19 + M8 x 21.7 Hex Point	-	16	Enquire
HT2	LR113358	STUD	LR113358 STUD M8 X 16MM, M8 x 8MM / To: GA999999	-	1	Enquire
HT2	LR113358	STUD	LR113358 STUD M8 X 16MM, M8 x 8MM / From: HA000001	-	1	Enquire
5B266	LR022724	GASKET - EXHAUST MANIFOLD	LR022724 GASKET - EXHAUST MANIFOLD Cross Over Pipe To Exhaust Manifold	-	2	Enquire
5K291A	LR022785	BRACKET - EXHAUST PIPE MOUNTING	LR022785 BRACKET - EXHAUST PIPE MOUNTING Crossover, Lower	-	1	Enquire
5K291B	LR022786	BRACKET - EXHAUST PIPE MOUNTING	LR022786 BRACKET - EXHAUST PIPE MOUNTING Crossover, Upper	-	1	Enquire
5K291C	LR022753	BRACKET - EXHAUST PIPE MOUNTING	LR022753 BRACKET - EXHAUST PIPE MOUNTING For Exhaust Crossover Pipe	-	1	Enquire
6P647	LR034006	PIPE - EXHAUST	LR034006 PIPE - EXHAUST Crossover	-	1	Enquire
9A432	LR022800	SPACER - EXHAUST MANIFOLD FIXING	LR022800 SPACER - EXHAUST MANIFOLD FIXING Manifold To Turbocharger	-	4	Enquire
9A462A	LR036055	HEAT SHIELD - EXHAUST MANIFOLD	LR036055 HEAT SHIELD - EXHAUST MANIFOLD LH	-	1	Enquire
9A462B	LR038177	HEAT SHIELD - EXHAUST MANIFOLD	LR038177 HEAT SHIELD - EXHAUST MANIFOLD RH	-	1	Enquire
9430A	LR038334	MANIFOLD - EXHAUST	LR038334 MANIFOLD - EXHAUST LH / To: HA179681	-	1	Enquire
9430A	LR112871	MANIFOLD - EXHAUST	LR112871 MANIFOLD - EXHAUST LH / From: HA179682	-	1	Enquire
9430B	LR022722	MANIFOLD - EXHAUST	LR022722 MANIFOLD - EXHAUST RH / To: HA179681	-	1	Enquire
9430B	LR112869	MANIFOLD - EXHAUST	LR112869 MANIFOLD - EXHAUST RH / From: HA179682	-	1	Enquire
9448	LR022802	GASKET - EXHAUST MANIFOLD	LR022802 GASKET - EXHAUST MANIFOLD Exhaust Manifold	-	2	Enquire
