Cylinder Head (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Cylinder Head (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

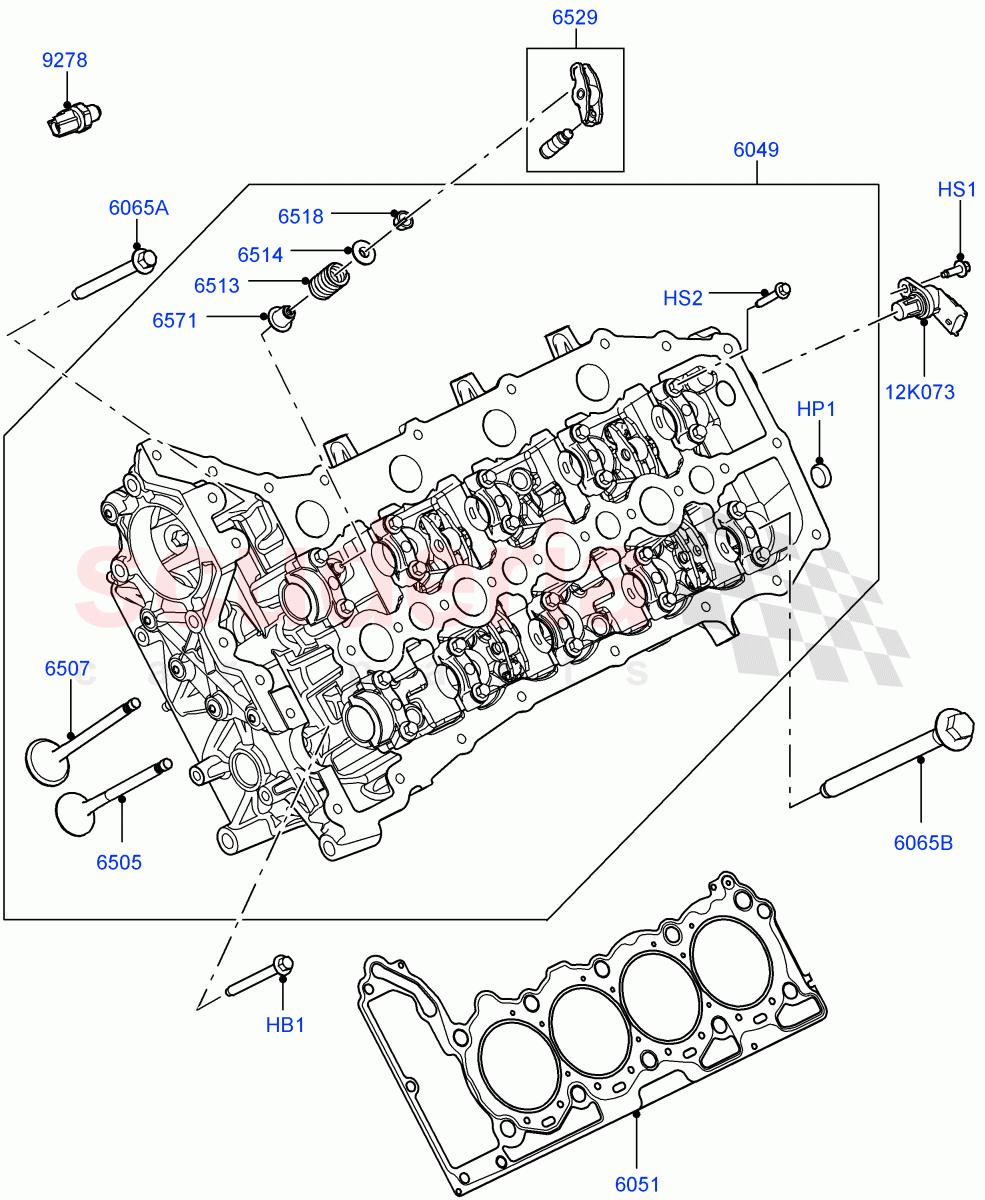

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1419374	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1102774	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4556038	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023009	CYLINDER HEAD	Enquire	To Order
	LR023010	CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022899	GASKET-CYLINDER HEAD	Enquire	To Order
	LR022897	GASKET - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008130	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311281	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006720	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022880	RETAINER - VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022959	COLLET - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1336545	ARM - FOLLOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311285	SEAL - VALVE STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000633	SWITCH - OIL PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022735	BOLT - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1331316	BOLT - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058405	SENSOR - CAMSHAFT POSITION	Enquire	To Order
	LR087352	SENSOR - CAMSHAFT POSITION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1419374	BOLT	1419374 BOLT 2 Per Head, Cylinder Head Chaincase To Block, M8 X 75MM	-	4	Enquire
HP1	1102774	PLUG - ENGINE	1102774 PLUG - ENGINE 22MM	-	6	Enquire
HS1	4364422	SCREW	4364422 SCREW Camshaft Position Sensor, M6 X 16MM	-	1	Enquire
HS2	4556038	BOLT	4556038 BOLT M6 x 35MM	-	-	Enquire
12K073	LR058405	SENSOR - CAMSHAFT POSITION	LR058405 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / To: GA102289	-	1	Enquire
12K073	LR087352	SENSOR - CAMSHAFT POSITION	LR087352 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: GA102290	-	1	Enquire
6049	LR023009	CYLINDER HEAD	LR023009 CYLINDER HEAD RH	-	1	Enquire
6049	LR023010	CYLINDER HEAD	LR023010 CYLINDER HEAD LH	-	1	Enquire
6051	LR022899	GASKET-CYLINDER HEAD	LR022899 GASKET-CYLINDER HEAD RH	-	1	Enquire
6051	LR022897	GASKET - CYLINDER HEAD	LR022897 GASKET - CYLINDER HEAD LH	-	1	Enquire
6065A	LR022735	BOLT - CYLINDER HEAD	LR022735 BOLT - CYLINDER HEAD Cylinder Head Chaincase To Block, M8 X 82MM	-	2	Enquire
6065B	1331316	BOLT - CYLINDER HEAD	1331316 BOLT - CYLINDER HEAD 10 Per Head, M13 X 155	-	20	Enquire
6505	LR008130	VALVE - EXHAUST	LR008130 VALVE - EXHAUST 8 Per Head	-	16	Enquire
6507	1311281	VALVE - INLET	1311281 VALVE - INLET 8 Per Head	-	16	Enquire
6513	LR006720	SPRING - VALVE	LR006720 SPRING - VALVE 16 Per Head	-	32	Enquire
6514	LR022880	RETAINER - VALVE SPRING	LR022880 RETAINER - VALVE SPRING 16 Per Head	-	32	Enquire
6518	LR022959	COLLET - VALVE SPRING RETAINER	LR022959 COLLET - VALVE SPRING RETAINER 32 Per Head	-	64	Enquire
6529	1336545	ARM - FOLLOWER	1336545 ARM - FOLLOWER 16 Per Head	-	32	Enquire
6571	1311285	SEAL - VALVE STEM	1311285 SEAL - VALVE STEM 16 Per Head	-	32	Enquire
9278	LR000633	SWITCH - OIL PRESSURE	LR000633 SWITCH - OIL PRESSURE	-	1	Enquire
