Load Compartment Trim (Floor) (Load Retainer Luggage Rails, Load Retainer Lugg Rail With Ret Kt) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Load Compartment Trim (Floor) (Load Retainer Luggage Rails, Load Retainer Lugg Rail With Ret Kt)

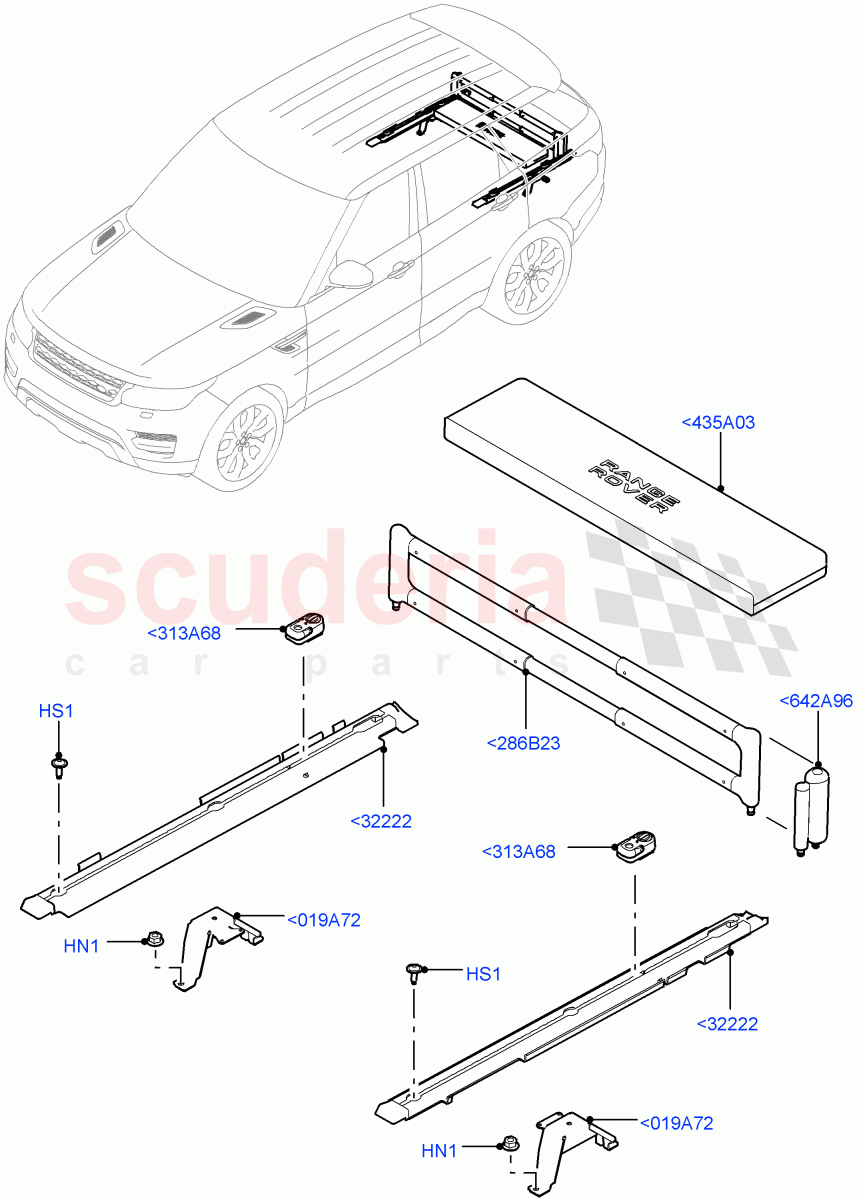

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN110046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028301	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041626	RAIL - LUGGAGE COMPARTMENT - INSERT	Enquire	To Order
	LR041627	RAIL - LUGGAGE COMPARTMENT - INSERT	Enquire	To Order
	LR041624	RAIL - LUGGAGE COMPARTMENT - INSERT	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR041622	BRACKET - LUGGAGE RAILS SUPPORT	Enquire	To Order
	LR041623	BRACKET - LUGGAGE RAILS SUPPORT	Enquire	To Order
	LR041622	BRACKET - LUGGAGE RAILS SUPPORT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR038146	SUPPORT - LUGGAGE NET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038108	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	Enquire	To Order
	LR038108	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038144	BAG - LUGGAGE HOLD DOWN	Enquire	To Order
	LR095903	BAG - LUGGAGE HOLD DOWN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038145	STRAP - LUGGAGE HOLD DOWN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<019A72	LR041622	BRACKET - LUGGAGE RAILS SUPPORT	LR041622 BRACKET - LUGGAGE RAILS SUPPORT With 5 Seat Configuration / RH / To: HA999999	-	1	Enquire
<019A72	LR041623	BRACKET - LUGGAGE RAILS SUPPORT	LR041623 BRACKET - LUGGAGE RAILS SUPPORT With 5 Seat Configuration / LH / To: HA999999	-	1	Enquire
<019A72	LR041622	BRACKET - LUGGAGE RAILS SUPPORT	LR041622 BRACKET - LUGGAGE RAILS SUPPORT For Unleaded Fuel, With 5 Seat Configuration / RH / From: JA000001	-	1	Enquire
<019A72	LR041623	BRACKET - LUGGAGE RAILS SUPPORT	LR041623 BRACKET - LUGGAGE RAILS SUPPORT Diesel/Electric - Hybrid, With 7 Seat Configuration / LH / From: JA000001	-	1	Enquire
<286B23	LR038146	SUPPORT - LUGGAGE NET	LR038146 SUPPORT - LUGGAGE NET Luggage Hold Down	-	1	Enquire
<313A68	LR038108	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR038108 HOOK-LUGGAGE COMPARTMENT-TIE DOWN To: HA999999	-	1	Enquire
<313A68	LR038108	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR038108 HOOK-LUGGAGE COMPARTMENT-TIE DOWN Diesel/Electric - Hybrid / From: JA000001	-	1	Enquire
<435A03	LR038144	BAG - LUGGAGE HOLD DOWN	LR038144 BAG - LUGGAGE HOLD DOWN Luggage Hold Down / To: HA143649	-	1	Enquire
<435A03	LR095903	BAG - LUGGAGE HOLD DOWN	LR095903 BAG - LUGGAGE HOLD DOWN Luggage Hold Down / From: HA143650	-	1	Enquire
<642A96	LR038145	STRAP - LUGGAGE HOLD DOWN	LR038145 STRAP - LUGGAGE HOLD DOWN Luggage Hold Down	-	1	Enquire
<32222	LR041626	RAIL - LUGGAGE COMPARTMENT - INSERT	LR041626 RAIL - LUGGAGE COMPARTMENT - INSERT With 5 Seat Configuration / LH / To: HA999999	-	1	Enquire
<32222	LR041627	RAIL - LUGGAGE COMPARTMENT - INSERT	LR041627 RAIL - LUGGAGE COMPARTMENT - INSERT With 7 Seat Configuration / LH / To: HA999999	-	1	Enquire
<32222	LR041624	RAIL - LUGGAGE COMPARTMENT - INSERT	LR041624 RAIL - LUGGAGE COMPARTMENT - INSERT With 5 Seat Configuration / RH / To: HA999999	-	1	Enquire
<32222	LR041625	RAIL - LUGGAGE COMPARTMENT - INSERT	LR041625 RAIL - LUGGAGE COMPARTMENT - INSERT With 7 Seat Configuration / RH / To: HA999999	-	1	Enquire
<32222	LR041624	RAIL - LUGGAGE COMPARTMENT - INSERT	LR041624 RAIL - LUGGAGE COMPARTMENT - INSERT For Unleaded Fuel, With 5 Seat Configuration / RH / From: JA000001	-	1	Enquire
<32222	LR041625	RAIL - LUGGAGE COMPARTMENT - INSERT	LR041625 RAIL - LUGGAGE COMPARTMENT - INSERT Diesel/Electric - Hybrid, With 7 Seat Configuration / RH / From: JA000001	-	1	Enquire
<32222	LR041626	RAIL - LUGGAGE COMPARTMENT - INSERT	LR041626 RAIL - LUGGAGE COMPARTMENT - INSERT For Unleaded Fuel, With 5 Seat Configuration / LH / From: JA000001	-	1	Enquire
<32222	LR041627	RAIL - LUGGAGE COMPARTMENT - INSERT	LR041627 RAIL - LUGGAGE COMPARTMENT - INSERT Diesel/Electric - Hybrid, With 7 Seat Configuration / LH / From: JA000001	-	1	Enquire
HN1	FN110046	NUT - HEX.	FN110046 NUT - HEX. M10, Support Bracket	-	4	Enquire
HS1	LR028301	SCREW	LR028301 SCREW Luggage Rail, M8 X 21MM, Pan Head	-	4	Enquire
