Instrument Panel (Internal Components)

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Instrument Panel (Internal Components)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DYG000052 BOLT $2.24 To Order
LR118182 SCREW AND WASHER $3.16 To Order
Photo Part No Description Price (each) Stock
DBP6286 Hardware - Miscellaneous Enquire To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $2.97 IN STOCK
Photo Part No Description Price (each) Stock
LR036724 NUT - SPRING $0.41 To Order
Photo Part No Description Price (each) Stock
LR027995 NUT $0.97 IN STOCK
Photo Part No Description Price (each) Stock
AYP500031 SCREW $1.59 To Order
Photo Part No Description Price (each) Stock
LR036723 SCREW - OVAL HEAD $2.47 To Order
LR036723 SCREW - OVAL HEAD $2.47 To Order
LR036723 SCREW - OVAL HEAD $2.47 To Order
Photo Part No Description Price (each) Stock
LR036722 SCREW - FLAT ROUND HEAD $4.94 To Order
Photo Part No Description Price (each) Stock
LR025172 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR044593 BRACKET - SUPPORT $44.09 To Order
Photo Part No Description Price (each) Stock
LR036717 BRACKET - ENERGY ABSORBER $54.92 To Order
Photo Part No Description Price (each) Stock
LR036716 BRACKET - INSTRUMENT PANEL $24.53 To Order
Photo Part No Description Price (each) Stock
LR044596 MOULDING - INSTRUMENT PANEL $218.65 To Order
LR088429 MOULDING - INSTRUMENT PANEL $174.13 To Order
LR100278 MOULDING - INSTRUMENT PANEL $158.30 To Order
Photo Part No Description Price (each) Stock
LR044887 BEZEL - INSTRUMENT PANEL $53.35 To Order
LR088529 BEZEL - INSTRUMENT PANEL $239.08 To Order
LR100282 MOULDING - INSTRUMENT PANEL $88.46 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036719 REINFORCEMENT - INSTRUMENT PANEL $529.67 To Order
LR036720 REINFORCEMENT - INSTRUMENT PANEL $472.07 To Order
LR104046 REINFORCEMENT - INSTRUMENT PANEL $529.67 To Order
...and 3 more part variants. See table on right for more details.
View All

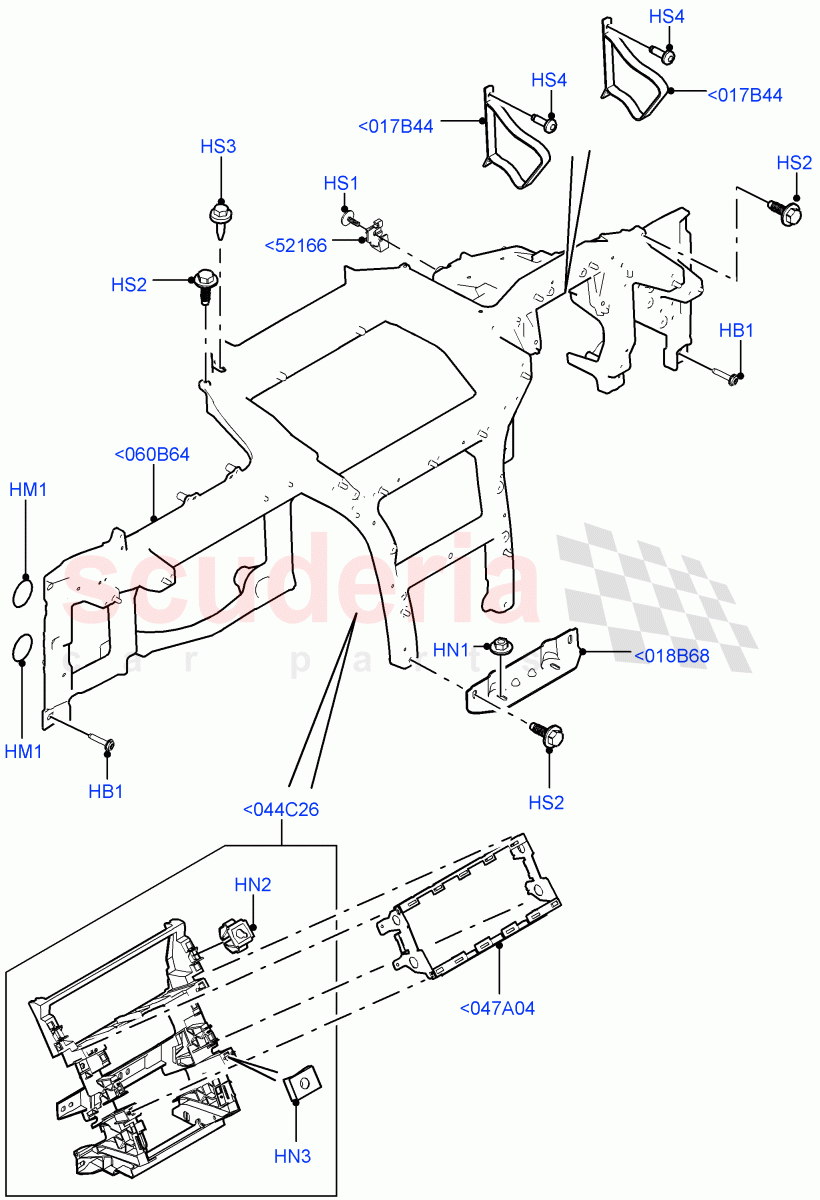

Instrument Panel (Internal Components) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B44 LR036717
BRACKET - ENERGY ABSORBER
(+)"CDN/MEX/USA" 		$54.92 2
<018B68 LR036716
BRACKET - INSTRUMENT PANEL
Lower 		$24.53 1
<044C26 LR044596
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / To: GA999999 		$218.65 1
<044C26 LR088429
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: HA000001 / To: HA999999 		$174.13 1
<044C26 LR100278
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: JA000001 		$158.30 1
<047A04 LR044887
BEZEL - INSTRUMENT PANEL
Centre Stack Bracket / To: GA999999 		$53.35 1
<047A04 LR088529
BEZEL - INSTRUMENT PANEL
Centre Stack Bracket / From: HA000001 / To: HA287832 		$239.08 1
<047A04 LR100282
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: JA000001 / To: JA411726 		$88.46 1
<047A04 LR116753
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: JA411727 		$80.41 1
<047A04 LR121144
BEZEL - INSTRUMENT PANEL
Centre Stack Bracket / From: HA287833 / To: HA999999 		$265.99 1
<060B64 LR036719
REINFORCEMENT - INSTRUMENT PANEL
LHD / To: HA138476 		$529.67 1
<060B64 LR036720
REINFORCEMENT - INSTRUMENT PANEL
RHD / To: HA138476 		$472.07 1
<060B64 LR104046
REINFORCEMENT - INSTRUMENT PANEL
LHD / From: HA138477 / To: JA413623 		$529.67 1
<060B64 LR104045
REINFORCEMENT - INSTRUMENT PANEL
RHD / From: HA138477 / To: JA413623 		$529.67 1
<060B64 LR117225
REINFORCEMENT - INSTRUMENT PANEL
LHD / From: JA413624 		$529.67 1
<060B64 LR117224
REINFORCEMENT - INSTRUMENT PANEL
RHD / From: JA413624 		$529.67 1
<52166 LR044593
BRACKET - SUPPORT
Spacer 		$44.09 1
HB1 DYG000052
BOLT
Frame To Body, M8 X 45MM, Rear, RH And LH, Side, Torx / To: LA732037 		$2.24 4
HB1 LR118182
SCREW AND WASHER
Frame To Body, M8 x 41.5MM, Rear, RH And LH, Side / From: LA732038 		$3.16 4
HM1 DBP6286
Hardware - Miscellaneous 		- 4 Enquire
HN1 RYH500310
NUT AND WASHER - HEX.
Bracket, Hexagonal Head, Lower, M6, Nut And Washer
IN STOCK 		$2.97 2
HN2 LR036724
NUT - SPRING
Attaches Moulding, Centre Stack Bracket, Inner, M4.2 		$0.41 14
HN3 LR027995
NUT
Attaches Moulding, Centre Stack Bracket, M6 X 0.7 - 4, Nut "U" Spring, Outer
IN STOCK 		$0.97 4
HS1 AYP500031
SCREW
Centre, Frame To Body, M8 X 25MM, Rear 		$1.59 1
HS2 LR036723
SCREW - OVAL HEAD
6 X 1.42 X 16, Bracket to frame, Lower 		$2.47 2
HS2 LR036723
SCREW - OVAL HEAD
6 X 1.42 X 16, Attaches Moulding, Centre Stack Bracket 		$2.47 5
HS2 LR036723
SCREW - OVAL HEAD
6 X 1.42 X 16, Glove Compartment, Lower 		$2.47 3
HS3 LR036722
SCREW - FLAT ROUND HEAD
Frame To Body, HEX Flange, M8 X 30, Rear, Upper 		$4.94 2
HS4 LR025172
SCREW
Bracket to frame, Energy Absorber, M6 X 16MM
IN STOCK 		$1.19 4
