Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

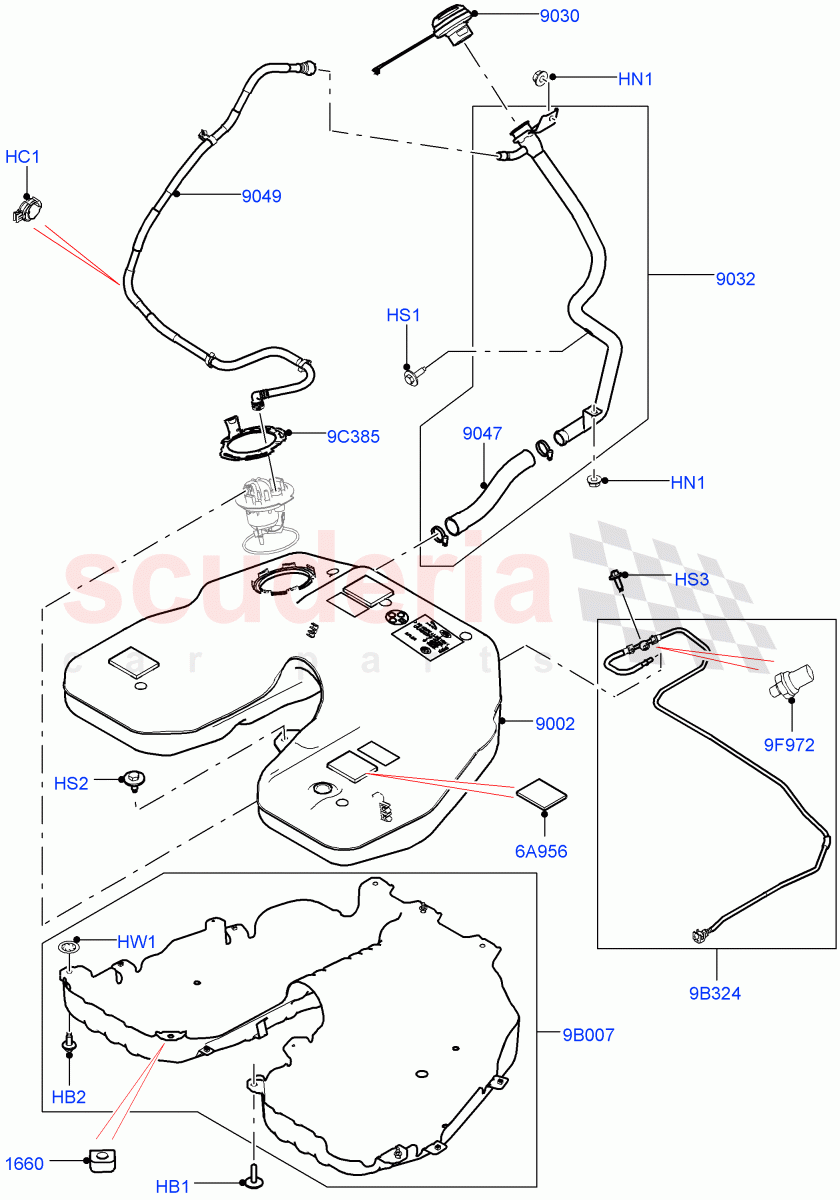

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034249	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037935	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044902	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500820	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ110007L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086524	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053665	CAP - FUEL TANK FILLER	Enquire	To Order
	202123475	CAP - FUEL TANK FILLER	Enquire	To Order
	LR138720	CAP - FUEL TANK FILLER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR095804	PIPE - FUEL FILLER	Enquire	To Order
	LR051671	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051675	HOSE - FILLER PIPE	Enquire	To Order
	LR051676	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037481	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054812	SHIELD - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086522	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087019	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015356	SENSOR - FUEL INJECTOR PRESSURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR034249	BOLT AND WASHER - HEX.HEAD	LR034249 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 x 37MM / From: KA000001	-	4	Enquire
HB2	LR037935	BOLT AND WASHER - HEX.HEAD	LR037935 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 X 25MM / From: KA000001	-	3	Enquire
HC1	LR044902	CLIP - HOSE	LR044902 CLIP - HOSE 10-25 X 1.5-3, Plastic / From: KA000001	-	1	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: KA000001	-	2	Enquire
HS1	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM / From: KA000001	-	2	Enquire
HS2	RYG500820	SCREW AND WASHER	RYG500820 SCREW AND WASHER Hexagonal Head, M6 X 16MM / From: KA000001	-	2	Enquire
HS3	FS105166	SCREW	FS105166 SCREW HEX Flange, M5 X 16MM / From: KA000001	-	1	Enquire
HW1	WJ110007L	WASHER	WJ110007L WASHER 10MM, Fuel Tank, Shield / From: KA000001	-	3	Enquire
6A956	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING 100mm x 80mm x 10mm / From: KA000001	-	3	Enquire
9B007	LR054812	SHIELD - FUEL TANK	LR054812 SHIELD - FUEL TANK Protective / From: KA000001	-	1	Enquire
9B324	LR086522	TUBE - FUEL	LR086522 TUBE - FUEL Feed / From: KA000001	-	1	Enquire
9C385	LR087019	RING - RETAINING	LR087019 RING - RETAINING From: KA000001	-	1	Enquire
9F972	LR015356	SENSOR - FUEL INJECTOR PRESSURE	LR015356 SENSOR - FUEL INJECTOR PRESSURE From: KA000001	-	1	Enquire
9002	LR086524	TANK - FUEL	LR086524 TANK - FUEL From: KA000001	-	1	Enquire
9030	LR053665	CAP - FUEL TANK FILLER	LR053665 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: KA000001 / To: MA758030	-	1	Enquire
9030	202123475	CAP - FUEL TANK FILLER	202123475 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - DMTL / From: KA000001 / To: MA755911	-	1	Enquire
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER Narrow Filler Neck - Unleaded / From: MA755912	-	1	Enquire
9030	LR138718	CAP - FUEL TANK FILLER	LR138718 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: MA758031	-	1	Enquire
9032	LR095804	PIPE - FUEL FILLER	LR095804 PIPE - FUEL FILLER Narrow Filler Neck - Unleaded / From: KA000001	-	1	Enquire
9032	LR051671	PIPE - FUEL FILLER	LR051671 PIPE - FUEL FILLER Fuel Tank Filler Neck - Unleaded / From: KA000001	-	1	Enquire
9047	LR051675	HOSE - FILLER PIPE	LR051675 HOSE - FILLER PIPE Narrow Filler Neck - Unleaded / From: KA000001	-	1	Enquire
9047	LR051676	HOSE - FILLER PIPE	LR051676 HOSE - FILLER PIPE Fuel Tank Filler Neck - Unleaded / From: KA000001	-	1	Enquire
9049	LR037481	TUBE - FUEL VAPOUR	LR037481 TUBE - FUEL VAPOUR Pet Tank W/O Leak Det - Std Filter / From: KA000001	-	1	Enquire
