Fuel Lines (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Fuel Lines (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.03 To Order
Photo Part No Description Price (each) Stock
LR071705 STUD $3.94 To Order
Photo Part No Description Price (each) Stock
LR130622 PIPE - FUEL $293.72 To Order
LR133741 PIPE - FUEL $293.72 To Order
LR133741 PIPE - FUEL $293.72 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR082760 BRACKET - FUEL TUBE SUPPORT $10.70 To Order
Photo Part No Description Price (each) Stock
LR131898 TUBE - FUEL SUPPLY AND VAPOUR $266.37 To Order
LR137496 TUBE - FUEL SUPPLY AND VAPOUR $266.37 To Order
Photo Part No Description Price (each) Stock
LR044464 PAD - FOAM $28.18 To Order
View All

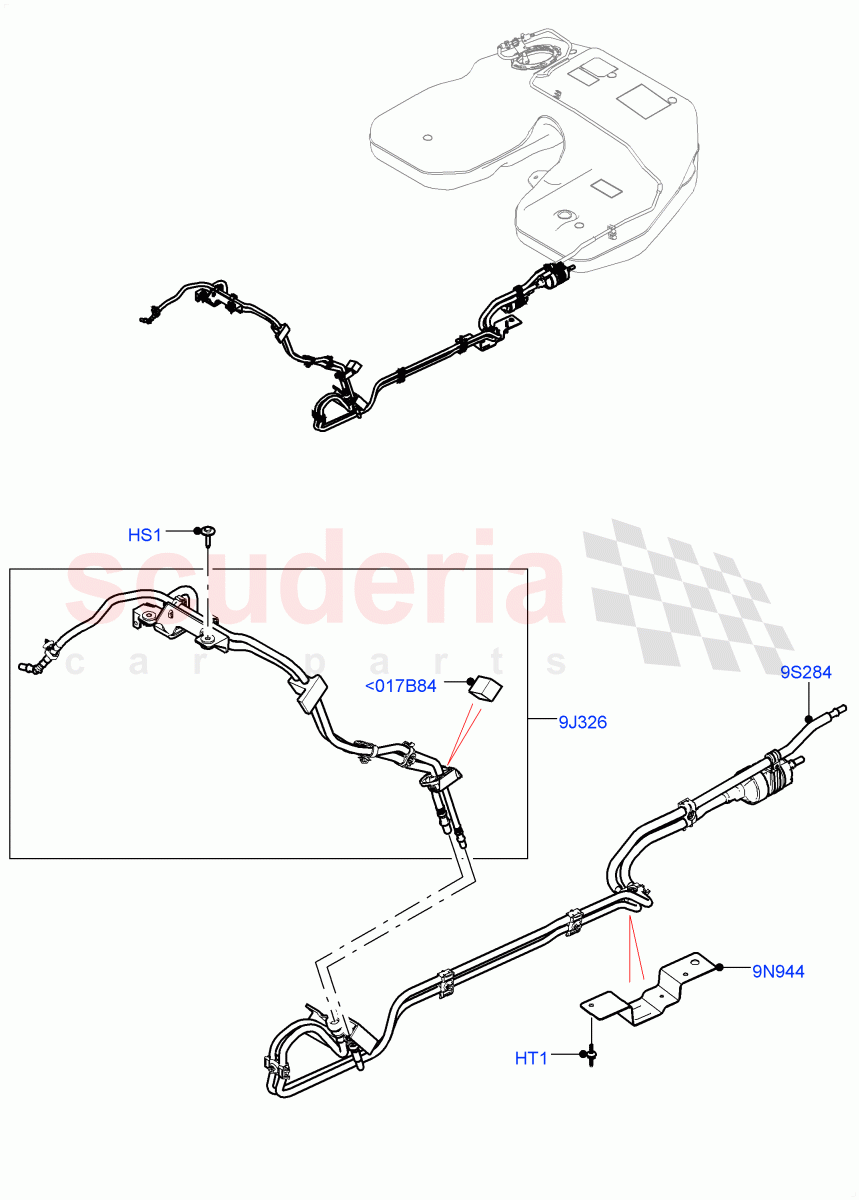

Fuel Lines (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR044464
PAD - FOAM
From: KA000001 		$28.18 1
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: KA000001 		$4.03 2
HT1 LR071705
STUD
M6 X 20 + M6 X 16 / From: KA000001 		$3.94 2
9J326 LR130622
PIPE - FUEL
From: KA000001 / To: KA861465 		$293.72 1
9J326 LR133741
PIPE - FUEL
From: KA861466 / To: KA999999 		$293.72 1
9J326 LR133741
PIPE - FUEL
From: LA800000 / To: LA899999 		$293.72 1
9J326 LR133741
PIPE - FUEL
From: LA700000 / To: LA717244 		$293.72 1
9J326 LR140080
PIPE - FUEL
From: LA717245 / To: LA799999 		$283.78 1
9J326 LR140080
PIPE - FUEL
From: MA000001 		$283.78 1
9N944 LR082760
BRACKET - FUEL TUBE SUPPORT
From: KA000001 		$10.70 1
9S284 LR131898
TUBE - FUEL SUPPLY AND VAPOUR
From: KA000001 / To: LA884859 		$266.37 1
9S284 LR137496
TUBE - FUEL SUPPLY AND VAPOUR
From: LA884860 		$266.37 1
