Front Exhaust System (3.0L AJ20D6 Diesel High, Proconve L6 Emissions, Stage V Plus DPF) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Front Exhaust System (3.0L AJ20D6 Diesel High, Proconve L6 Emissions, Stage V Plus DPF) ((V)...

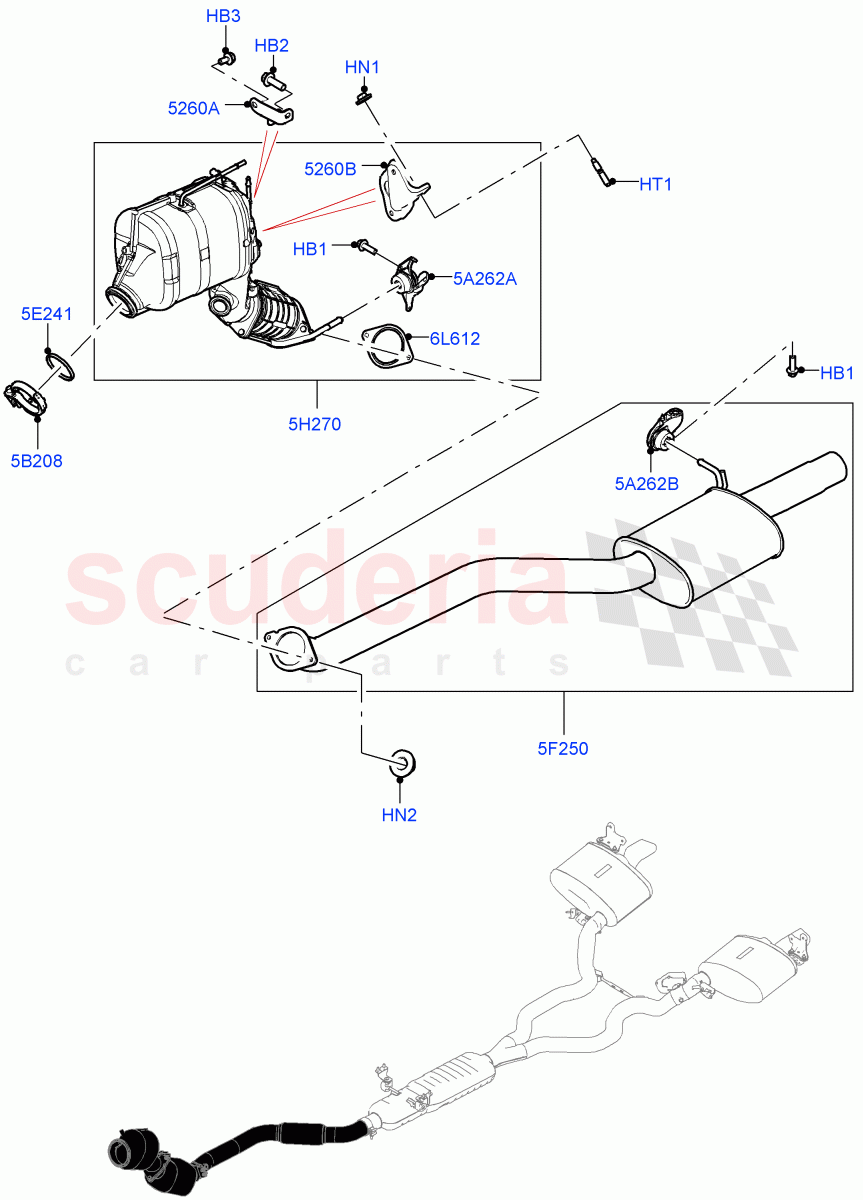

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074133	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138364	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138362	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135801	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125287	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125286	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140966	PIPE - EXHAUST	Enquire	To Order
	LR149620	CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148894	FILTER - DIESEL PARTICLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135804	GASKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135802	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135803	INSULATOR - RUBBER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108256	BOLT	FS108256 BOLT Hexagonal Head, M8 X 25MM / From: LA000001	-	2	Enquire
HB2	LR074133	BOLT	LR074133 BOLT M10 X 30MM / From: LA000001	-	1	Enquire
HB3	LR138364	BOLT	LR138364 BOLT M8 X 16 / From: LA000001	-	1	Enquire
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer / From: LA000001	-	2	Enquire
HN2	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL M8 / From: LA000001	-	2	Enquire
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM / From: LA000001	-	2	Enquire
5A262A	LR135802	INSULATOR - RUBBER	LR135802 INSULATOR - RUBBER Front / From: LA000001	-	1	Enquire
5A262B	LR135803	INSULATOR - RUBBER	LR135803 INSULATOR - RUBBER Rear / From: LA000001	-	1	Enquire
5B208	LR125287	CLAMP - EXHAUST	LR125287 CLAMP - EXHAUST Turbocharger Outlet / From: LA000001	-	1	Enquire
5E241	LR125286	GASKET - EXHAUST PIPE	LR125286 GASKET - EXHAUST PIPE Turbocharger Outlet / From: LA000001	-	1	Enquire
5F250	LR140966	PIPE - EXHAUST	LR140966 PIPE - EXHAUST Proconve L6 Emissions / From: LA000001	-	1	Enquire
5F250	LR149620	CONVERTER	LR149620 CONVERTER Stage V Plus DPF / From: LA000001	-	1	Enquire
5H270	LR148894	FILTER - DIESEL PARTICLE	LR148894 FILTER - DIESEL PARTICLE From: LA000001	-	1	Enquire
6L612	LR135804	GASKET - TURBOCHARGER	LR135804 GASKET - TURBOCHARGER Outlet / From: LA000001	-	1	Enquire
5260A	LR138362	BRACKET	LR138362 BRACKET Upper / From: LA000001	-	1	Enquire
5260B	LR135801	BRACKET - EXHAUST PIPE MOUNTING	LR135801 BRACKET - EXHAUST PIPE MOUNTING Lower / From: LA000001	-	1	Enquire
