Exhaust Sensors And Modules (3.0L AJ20D6 Diesel High, J-WLTP Emission, EU6D - Final (Diesel) Emission, L7 Emission - Brazil) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Exhaust Sensors And Modules (3.0L AJ20D6 Diesel High, J-WLTP Emission, EU6D - Final (Diesel)...

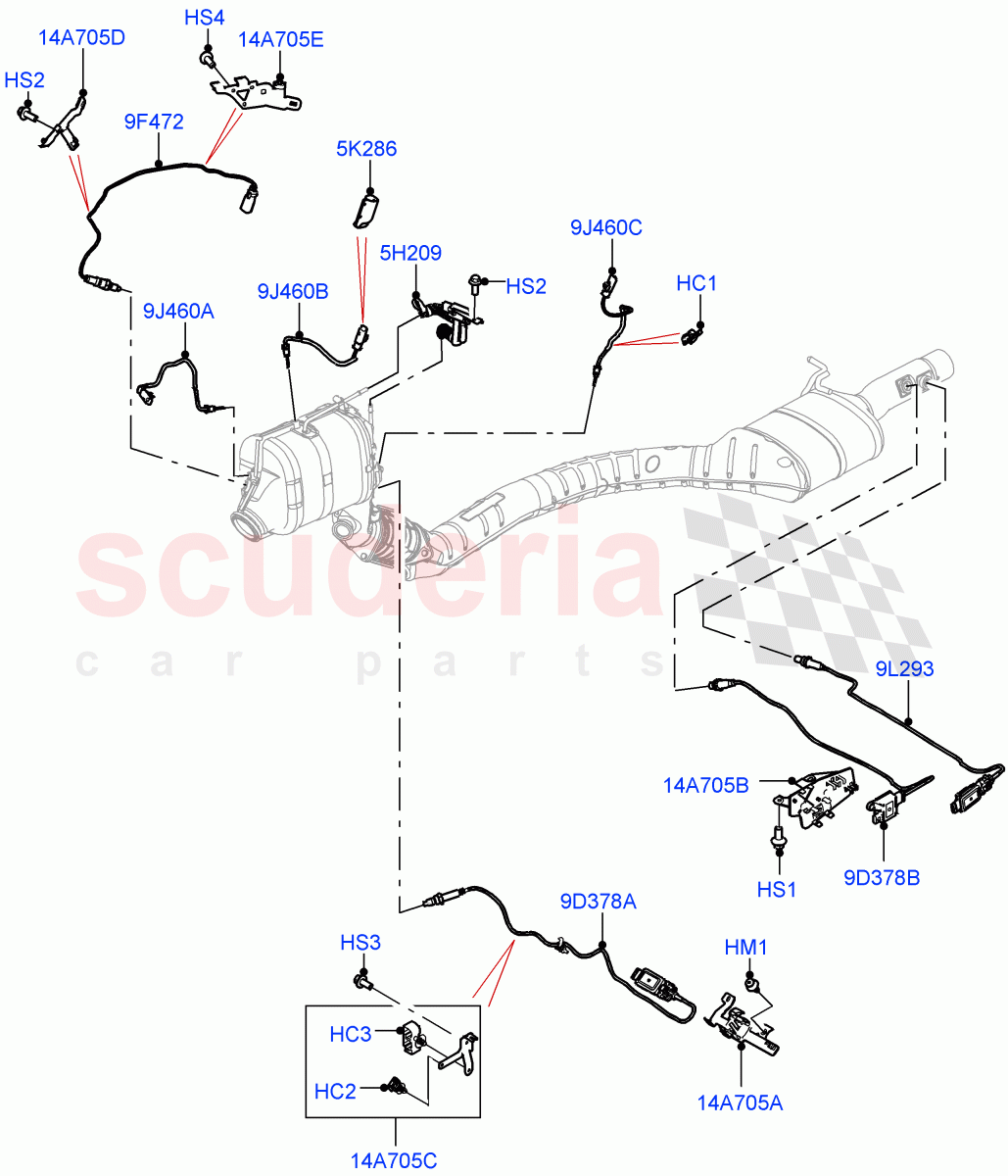

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR063050	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011519	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125423	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108186	SCREW - SOCKET HEAD CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106146	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133155	SENSOR - EXHAUST GAS PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139159	HEAT SHIELD - CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125273	SENSOR - EXHAUST GAS - OXYGEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146856	SENSOR - PARTICULATE MATTER DETECT.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127505	SENSOR - NOX TRAP TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127506	SENSOR - NOX TRAP TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125270	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125271	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125272	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113308	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125269	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134618	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141646	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141647	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR063050	CLIP	LR063050 CLIP 8-9MM X 3-6MM / From: LA000001	-	2	Enquire
HC2	LR011519	CLIP	LR011519 CLIP 9.5 X 6 X 2 / From: LA000001	-	1	Enquire
HC3	LR125423	CLIP - RETAINING	LR125423 CLIP - RETAINING NOX - Sensor / From: LA000001	-	1	Enquire
HM1	RYQ500040	FASTENER	RYQ500040 FASTENER 6.25 x 1.6/6MM / From: LA000001	-	2	Enquire
HS1	FS108186	SCREW - SOCKET HEAD CAP	FS108186 SCREW - SOCKET HEAD CAP M8 x 18MM / From: LA000001	-	2	Enquire
HS2	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: LA000001	-	2	Enquire
HS3	FS106146	SCREW	FS106146 SCREW Hexagonal Head, M6 X 14MM, NOX - Sensor / From: LA000001	-	1	Enquire
HS4	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: LA000001	-	3	Enquire
5H209	LR133155	SENSOR - EXHAUST GAS PRESSURE	LR133155 SENSOR - EXHAUST GAS PRESSURE Exhaust Gas Pressure, Includes Bracket / From: LA000001	-	1	Enquire
5K286	LR139159	HEAT SHIELD - CONNECTOR	LR139159 HEAT SHIELD - CONNECTOR Connector, Sensor / From: LA000001	-	2	Enquire
9D378A	LR127505	SENSOR - NOX TRAP TEMPERATURE	LR127505 SENSOR - NOX TRAP TEMPERATURE Upper / From: LA000001	-	1	Enquire
9D378B	LR127506	SENSOR - NOX TRAP TEMPERATURE	LR127506 SENSOR - NOX TRAP TEMPERATURE Lower / From: LA000001	-	1	Enquire
9F472	LR125273	SENSOR - EXHAUST GAS - OXYGEN	LR125273 SENSOR - EXHAUST GAS - OXYGEN Hego Sensor / From: LA000001	-	1	Enquire
9J460A	LR125270	SENSOR - EXHAUST GAS - TEMPERATURE	LR125270 SENSOR - EXHAUST GAS - TEMPERATURE Front / From: LA000001	-	1	Enquire
9J460B	LR125271	SENSOR - EXHAUST GAS - TEMPERATURE	LR125271 SENSOR - EXHAUST GAS - TEMPERATURE Middle / From: LA000001	-	1	Enquire
9J460C	LR125272	SENSOR - EXHAUST GAS - TEMPERATURE	LR125272 SENSOR - EXHAUST GAS - TEMPERATURE Rear / From: LA000001	-	1	Enquire
9L293	LR146856	SENSOR - PARTICULATE MATTER DETECT.	LR146856 SENSOR - PARTICULATE MATTER DETECT. From: LA000001	-	1	Enquire
14A705A	LR113308	BRACKET	LR113308 BRACKET NOX - Sensor, Upper / From: LA000001	-	1	Enquire
14A705B	LR125269	BRACKET - WIRING	LR125269 BRACKET - WIRING Lower, NOX - Sensor / From: LA000001	-	1	Enquire
14A705C	LR134618	BRACKET	LR134618 BRACKET Front, NOX - Sensor / From: LA000001	-	1	Enquire
14A705D	LR141646	BRACKET	LR141646 BRACKET Front, HEGO Bracket / From: LA000001	-	1	Enquire
14A705E	LR141647	BRACKET	LR141647 BRACKET HEGO Bracket, Rear / From: LA000001	-	1	Enquire
