Timing Gear Covers (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Timing Gear Covers (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

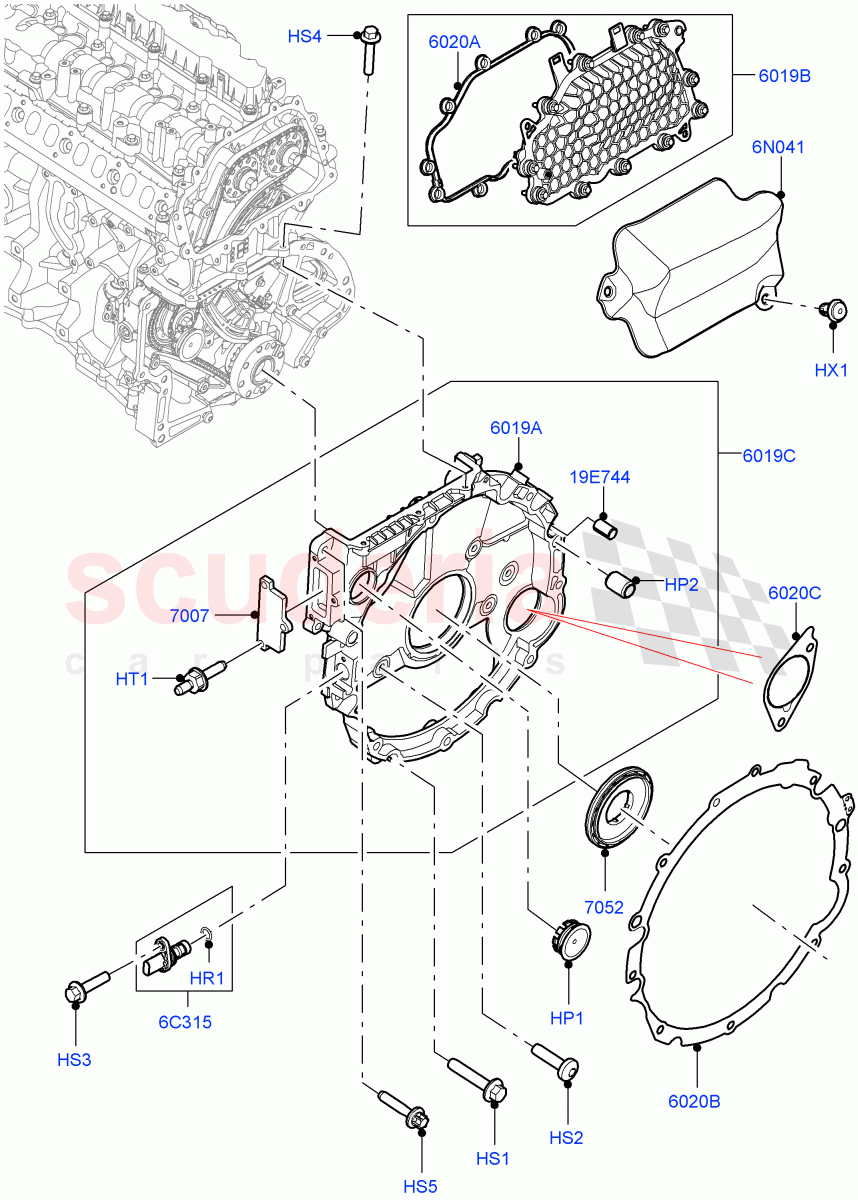

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR128702	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073787	PIN - CENTERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095782	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073786	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089197	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125622	PLATE - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122697	SEAL - CRANKSHAFT OIL - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127937	PLATE - CYLINDER BLOCK REAR	Enquire	To Order
	LR157791	PLATE - CYLINDER BLOCK REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125593	COVER - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162144	RETAINER - CRANKSHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125594	GASKET - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123925	SEAL - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123926	SEAL - STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125262	INSULATOR - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122990	DOWEL - PIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HP1	LR128702	PLUG - ENGINE	LR128702 PLUG - ENGINE Includes O-Ring / From: LA000001	-	1	Enquire
HP2	LR073787	PIN - CENTERING	LR073787 PIN - CENTERING 15.7MM, Pin - Dowell / From: LA000001	-	2	Enquire
HR1	LR095782	O-RING	LR095782 O-RING 17.0MM, Crankshaft Position Sensor(CKP) / From: LA000001	-	1	Enquire
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM / From: LA000001	-	10	Enquire
HS2	LR073786	SCREW	LR073786 SCREW M8 X 30MM / From: LA000001	-	4	Enquire
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Crankshaft Position Sensor(CKP), Hexagonal Head, M6 X 25MM / From: LA000001	-	1	Enquire
HS4	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: LA000001	-	3	Enquire
HS5	LR158170	SCREW	LR158170 SCREW M8 x 40MM / From: LA000001	-	1	Enquire
HT1	LR089197	STUD	LR089197 STUD M6 x 22 mm + M6 x 12 mm / From: LA000001	-	3	Enquire
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator / From: LA000001	-	2	Enquire
6C315	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	LR126181 SENSOR - CRANKSHAFT POSITION - CPS From: LA000001	-	1	Enquire
6N041	LR125262	INSULATOR - FUEL SUPPLY	LR125262 INSULATOR - FUEL SUPPLY From: LA000001	-	1	Enquire
19E744	LR122990	DOWEL - PIN	LR122990 DOWEL - PIN	-	2	Enquire
6019A	LR127937	PLATE - CYLINDER BLOCK REAR	LR127937 PLATE - CYLINDER BLOCK REAR Lower, Timing Chain Cover / From: LA000001 / To: MA787084	-	1	Enquire
6019A	LR157791	PLATE - CYLINDER BLOCK REAR	LR157791 PLATE - CYLINDER BLOCK REAR Lower, Timing Chain Cover / From: MA787085	-	1	Enquire
6019B	LR125593	COVER - CYLINDER HEAD	LR125593 COVER - CYLINDER HEAD Timing Chain Cover, Upper, With Fixing Parts / From: LA000001	-	1	Enquire
6019C	LR162144	RETAINER - CRANKSHAFT OIL SEAL	LR162144 RETAINER - CRANKSHAFT OIL SEAL Assembly, Lower, Timing Chain Cover / From: LA000001	-	1	Enquire
6020A	LR125594	GASKET - COVER	LR125594 GASKET - COVER Timing Chain Cover / From: LA000001	-	1	Enquire
6020B	LR123925	SEAL - TRANSMISSION	LR123925 SEAL - TRANSMISSION Transmission To Engine / From: LA000001	-	1	Enquire
6020C	LR123926	SEAL - STARTER MOTOR	LR123926 SEAL - STARTER MOTOR Starter Motor / From: LA000001	-	1	Enquire
7007	LR125622	PLATE - BLANKING	LR125622 PLATE - BLANKING Access Hole Cover, With Gasket / From: LA000001	-	1	Enquire
7052	LR122697	SEAL - CRANKSHAFT OIL - REAR	LR122697 SEAL - CRANKSHAFT OIL - REAR Crankshaft Oil Seal, Rear / From: LA000001	-	1	Enquire
