Cylinder Head Cover (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Cylinder Head Cover (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

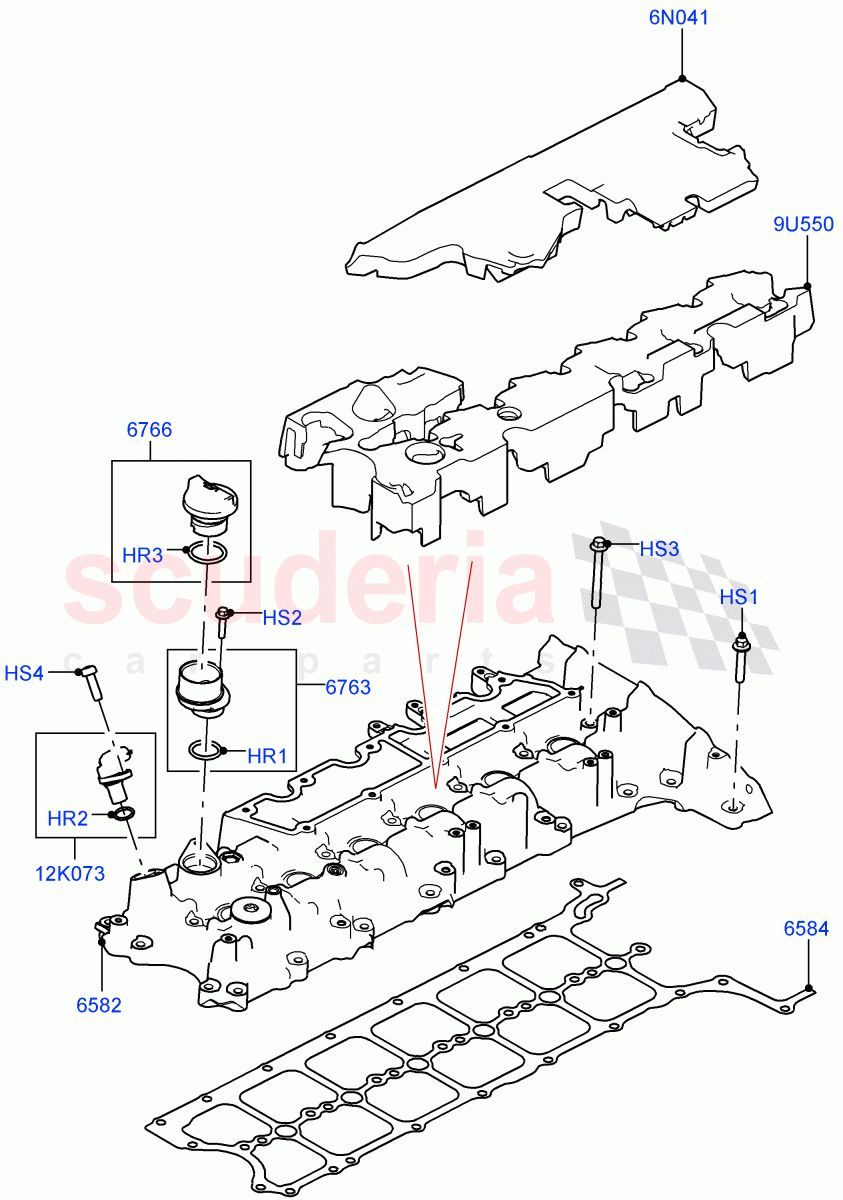

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR133542	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095781	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073781	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125323	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125322	COVER - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125592	GASKET - CAMSHAFT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121749	PIPE - OIL INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125595	CAP - OIL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125600	INSULATOR - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125528	COVER - INSULATOR	Enquire	To Order
	LR154867	COVER - INSULATOR	Enquire	To Order
	LR154867	COVER - INSULATOR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR074065	SENSOR - CAMSHAFT POSITION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR133542	RING - SEALING	LR133542 RING - SEALING FILLER,	-	1	Enquire
HR2	LR095781	O-RING	LR095781 O-RING 17.0MM, Camshaft Position Sensor / From: LA000001	-	1	Enquire
HR3	LR073781	O-RING	LR073781 O-RING Filler Cap,	-	1	Enquire
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM / From: LA000001	-	19	Enquire
HS2	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: LA000001	-	1	Enquire
HS3	LR125323	SCREW	LR125323 SCREW M8 x 70MM / From: LA000001	-	7	Enquire
HS4	LR073720	SCREW	LR073720 SCREW Camshaft Position Sensor, M6 X 20MM / From: LA000001	-	1	Enquire
6N041	LR125600	INSULATOR - INTAKE MANIFOLD	LR125600 INSULATOR - INTAKE MANIFOLD Top / From: LA000001	-	1	Enquire
9U550	LR125528	COVER - INSULATOR	LR125528 COVER - INSULATOR Lower / From: LA000001 / To: MA776488	-	1	Enquire
9U550	LR154867	COVER - INSULATOR	LR154867 COVER - INSULATOR Lower / From: MA776489 / To: MA999999	-	1	Enquire
9U550	LR154867	COVER - INSULATOR	LR154867 COVER - INSULATOR Lower / From: NA700000 / To: NA799999	-	1	Enquire
9U550	LR154867	COVER - INSULATOR	LR154867 COVER - INSULATOR Lower / From: NA200000 / To: NA208021	-	1	Enquire
9U550	LR163151	COVER - INSULATOR	LR163151 COVER - INSULATOR Lower / From: NA208022 / To: NA699999	-	1	Enquire
9U550	LR163151	COVER - INSULATOR	LR163151 COVER - INSULATOR Lower / From: PA000001	-	1	Enquire
12K073	LR074065	SENSOR - CAMSHAFT POSITION	LR074065 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: LA000001	-	1	Enquire
6582	LR125322	COVER - CYLINDER HEAD	LR125322 COVER - CYLINDER HEAD From: LA000001	-	1	Enquire
6584	LR125592	GASKET - CAMSHAFT COVER	LR125592 GASKET - CAMSHAFT COVER Camshaft Cover / From: LA000001	-	1	Enquire
6763	LR121749	PIPE - OIL INLET	LR121749 PIPE - OIL INLET From: LA000001	-	1	Enquire
6766	LR125595	CAP - OIL FILLER	LR125595 CAP - OIL FILLER From: LA000001	-	1	Enquire
