Vacuum Control And Air Injection (Engine Vacuum Harness, Solihull Plant Build) (3.0 V6 Diesel) ((V)...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (Engine Vacuum Harness, Solihull Plant Build) (3.0 V6 Diesel) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4364422 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR009320 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR015439 BRACKET - HOSE Enquire To Order
LR073587 BRACKET - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR042666 BRACKET - AIR DUCT SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR116598 SOLENOID - CSOV Enquire To Order
Photo Part No Description Price (each) Stock
LR041270 HOSE - VACUUM CONTROL HARNESS Enquire To Order
LR061348 HOSE - VACUUM CONTROL HARNESS Enquire To Order
LR063126 HOSE - VACUUM CONTROL HARNESS Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013570 RESERVOIR - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR029415 CONNECTOR - 3-WAY Enquire To Order
Photo Part No Description Price (each) Stock
LR116599 SOLENOID - EGR Enquire To Order
Photo Part No Description Price (each) Stock
LR076235 SOLENOID - TURBO CONTROL Enquire To Order
LR076235 SOLENOID - TURBO CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR037779 HOSE - VACUUM Enquire To Order
LR071242 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR075844 HOSE - VACUUM Enquire To Order
View All

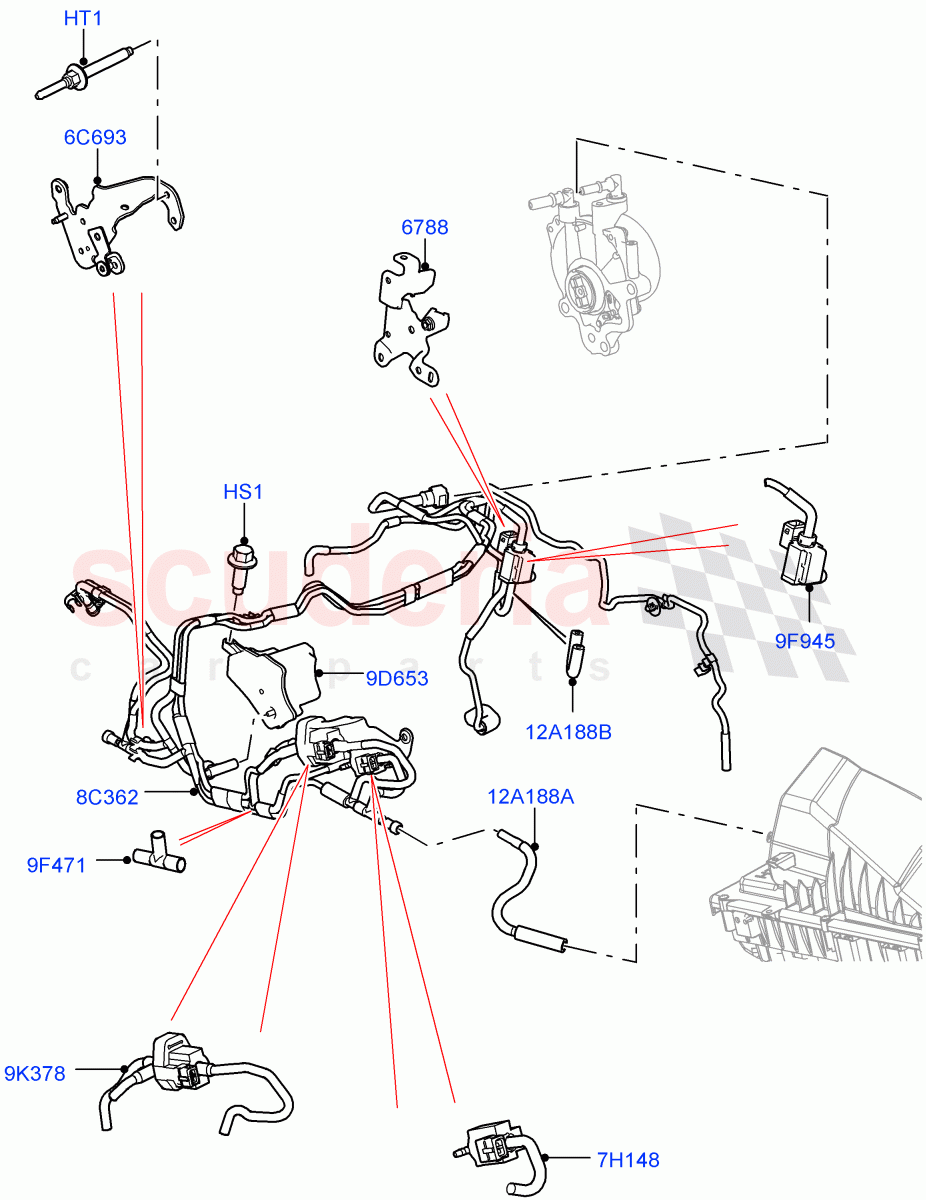

Vacuum Control And Air Injection (Engine Vacuum Harness, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 4364422
SCREW
M6 X 16MM, Reservoir 		- 1 Enquire
HT1 LR009320
STUD
Bracket, M6 X 39 / 4.5 X 24.5 		- 3 Enquire
6C693 LR042666
BRACKET - AIR DUCT SUPPORT
Vacuum Control Harness 		- 1 Enquire
7H148 LR116598
SOLENOID - CSOV
From: JA000001 		- 1 Enquire
8C362 LR041270
HOSE - VACUUM CONTROL HARNESS
3.0L 24V V6 Turbo Diesel Std Flow / Includes Valves, Vacuum Control Harness / To: EA308270 		- 1 Enquire
8C362 LR061348
HOSE - VACUUM CONTROL HARNESS
3.0L 24V DOHC V6 TC Diesel / Includes Valves, Vacuum Control Harness / From: EA308271 / To: FA512614 		- 1 Enquire
8C362 LR063126
HOSE - VACUUM CONTROL HARNESS
3.0 V6 D Gen2 Mono Turbo / Includes Valves, Vacuum Control Harness / From: FA000001 / To: FA516687 		- 1 Enquire
8C362 LR063124
HOSE - VACUUM CONTROL HARNESS
3.0 V6 D Gen2 Twin Turbo / Includes Valves, Vacuum Control Harness / From: FA000001 / To: GA660650 		- 1 Enquire
8C362 LR078895
HOSE - VACUUM CONTROL HARNESS
3.0 V6 D Gen2 Twin Turbo / Includes Valves, Vacuum Control Harness / From: GA660651 / To: GA670650 		- 1 Enquire
8C362 LR078841
HOSE - VACUUM CONTROL HARNESS
3.0 V6 D Gen2 Mono Turbo / Includes Valves, Vacuum Control Harness / From: FA516688 		- 1 Enquire
8C362 LR082318
HOSE - VACUUM CONTROL HARNESS
3.0 V6 D Low MT ROW / Includes Valves, Vacuum Control Harness / From: HA000001 		- 1 Enquire
8C362 LR104352
HOSE
3.0L 24V V6 Turbo Diesel Std Flow / Includes Valves, Vacuum Control Harness / From: GA568375 		- 1 Enquire
8C362 LR076236
HOSE - VACUUM CONTROL HARNESS
3.0 V6 Diesel Electric Hybrid Eng / Includes Valves, Vacuum Control Harness / From: FA512615 / To: GA568374 		- 1 Enquire
8C362 LR095366
HOSE - VACUUM CONTROL HARNESS
3.0 V6 D Gen2 Twin Turbo / Includes Valves, Vacuum Control Harness / From: GA670651 		- 1 Enquire
9D653 LR013570
RESERVOIR - VACUUM
To Vacuum 		- 1 Enquire
9F471 LR029415
CONNECTOR - 3-WAY
To Vacuum Hose 		- 5 Enquire
9F945 LR116599
SOLENOID - EGR
From: JA000001 		- 1 Enquire
9K378 LR076235
SOLENOID - TURBO CONTROL
To: FA999999 		- 1 Enquire
9K378 LR076235
SOLENOID - TURBO CONTROL
From: GA000001 		- 1 Enquire
12A188A LR037779
HOSE - VACUUM
To Air Cleaner Box / To: FA999999 		- 1 Enquire
12A188A LR071242
HOSE - VACUUM
To Air Cleaner Box / From: GA000001 		- 1 Enquire
12A188B LR075844
HOSE - VACUUM
U-Type 		- 1 Enquire
6788 LR015439
BRACKET - HOSE
To Vacuum Hose / To: EA999999 		- 1 Enquire
6788 LR073587
BRACKET - HOSE
To Vacuum Hose / From: FA000001 		- 1 Enquire
