Name: Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0L 24V V6 Turbo Diesel Std Flow, 8 Speed Auto Trans ZF 8HP70 4WD, LHD, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo) ((V) TOGA999999)
Rating: 5.0 (1 reviews)

Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0L 24V V6 Turbo Diesel Std Flow, 8 Speed Auto Trans ZF 8HP70 4WD, LHD, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo) ((V) TOGA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0L 24V V6 Turbo Diesel Std Flow, 8...

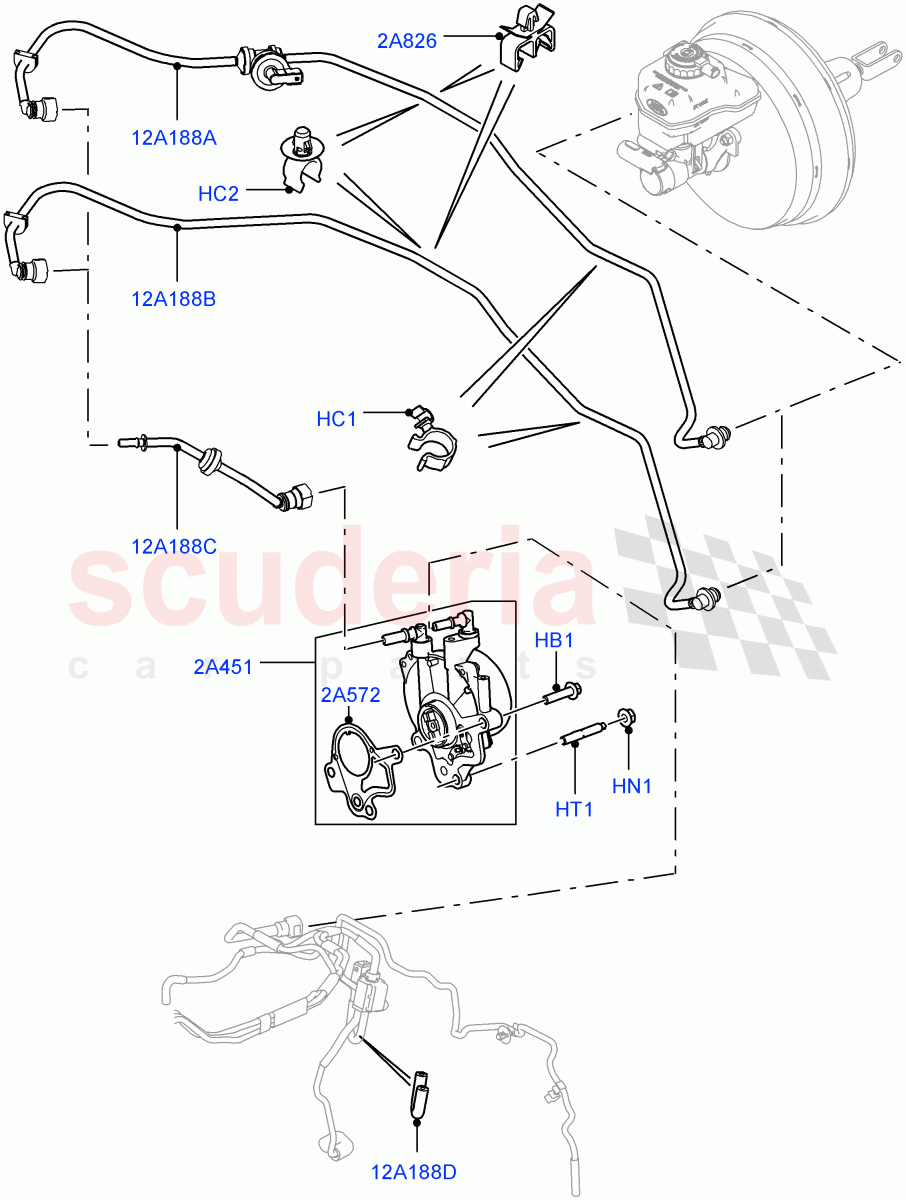

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006708	BOLT	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049401	CLIP - DOUBLE	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049404	CLIP - SPECIAL	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	1331241	STUD	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044962	PUMP - VACUUM	$403.96	To Order
	LR077839	PUMP - VACUUM	$435.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013619	GASKET - VACUUM PUMP	$45.41	To Order
	LR096060	GASKET - VACUUM PUMP	$13.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR048199	HOSE - VACUUM	$156.69	To Order
	LR067250	HOSE - VACUUM	$87.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048198	HOSE - VACUUM	$82.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048196	HOSE - VACUUM	$66.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075844	HOSE - VACUUM	$25.95	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR006708	BOLT	LR006708 BOLT M8 x 55MM, Pump - Vacuum	$0.63	2
HC1	LR049401	CLIP - DOUBLE	LR049401 CLIP - DOUBLE Double, To Vacuum Hose	$2.27	1
HC2	LR049404	CLIP - SPECIAL	LR049404 CLIP - SPECIAL To Vacuum Hose	$1.00	1
HN1	FN108046	NUT - HEX.	FN108046 NUT - HEX. Hexagonal Head, M8	$2.00	1
HT1	1331241	STUD	1331241 STUD M8 X 15 + M8 X 35	$1.05	1
2A451	LR044962	PUMP - VACUUM	LR044962 PUMP - VACUUM To: FA542149	$403.96	1
2A451	LR077839	PUMP - VACUUM	LR077839 PUMP - VACUUM From: FA542150	$435.44	1
2A572	LR013619	GASKET - VACUUM PUMP	LR013619 GASKET - VACUUM PUMP To: FA999999	$45.41	1
2A572	LR096060	GASKET - VACUUM PUMP IN STOCK	LR096060 GASKET - VACUUM PUMP From: GA000001 IN STOCK	$13.99	1
12A188A	LR048199	HOSE - VACUUM	LR048199 HOSE - VACUUM Starter - Stop/Start System / Includes Vacuum Sensor, To Brake Booster / To: EA389110	$156.69	1
12A188A	LR067250	HOSE - VACUUM	LR067250 HOSE - VACUUM Starter - Stop/Start System / Includes Vacuum Sensor, To Brake Booster / From: EA389111	$87.23	1
12A188B	LR048198	HOSE - VACUUM	LR048198 HOSE - VACUUM Standard Electric Starter Motor / To Brake Booster	$82.77	1
12A188C	LR048196	HOSE - VACUUM	LR048196 HOSE - VACUUM To Vacuum Pump	$66.93	1
12A188D	LR075844	HOSE - VACUUM	LR075844 HOSE - VACUUM U-Type	$25.95	1
