Water Pump (Auxiliary) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMGA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Water Pump (Auxiliary) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6 D...

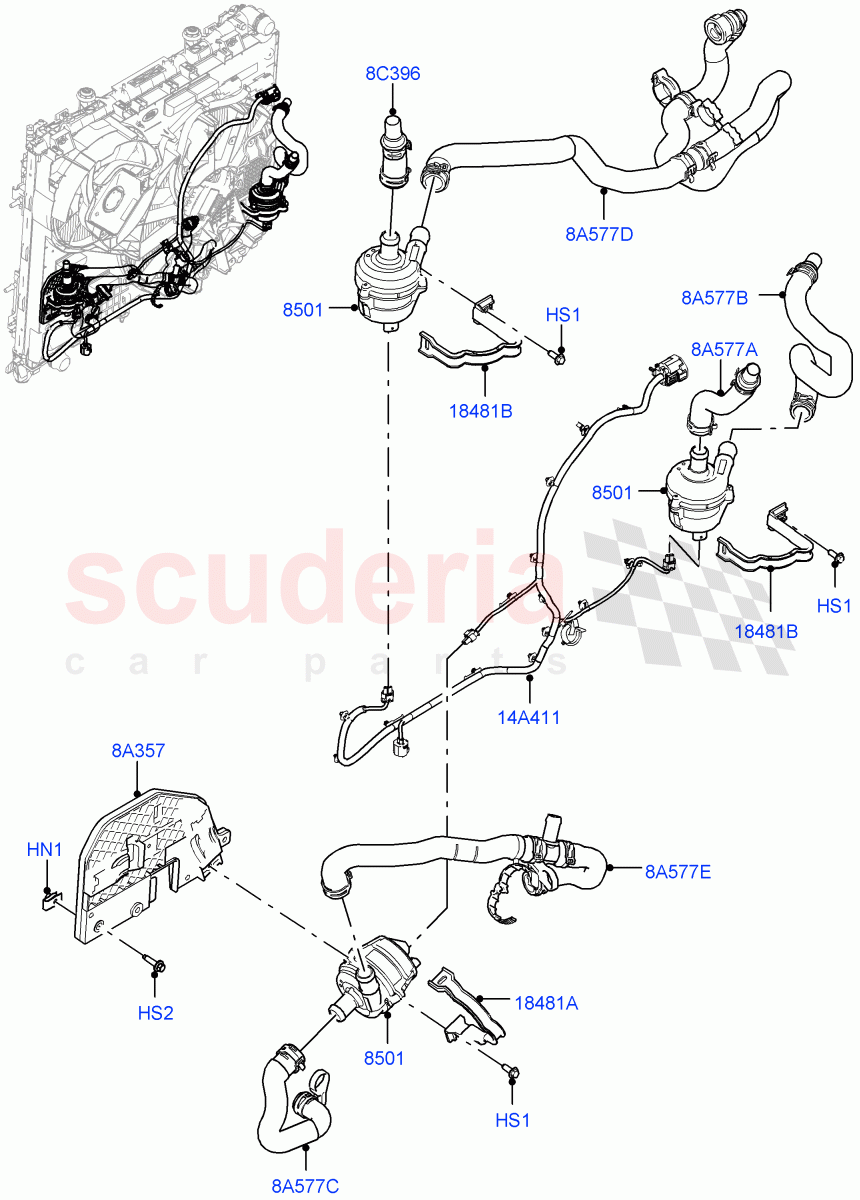

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048864	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061983	PUMP - WATER	Enquire	To Order
	LR088318	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR064178	BRACKET - PUMP SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062457	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075637	WIRING - WATER PUMP	Enquire	To Order
	LR075638	WIRING - WATER PUMP	Enquire	To Order
	LR089628	WIRING - TRACTION BATTERY	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR048857	CLAMP - WATER PUMP MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048860	CLAMP - WATER PUMP MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071088	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071718	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077956	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071041	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077955	HOSE - WATER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED M6 / From: GA000001	-	1	Enquire
HS1	LR048864	SCREW	LR048864 SCREW 6 x 16MM, Hexagonal Head / From: GA000001	-	3	Enquire
HS2	RYG500220	SCREW	RYG500220 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: GA000001	-	2	Enquire
8A357	LR064178	BRACKET - PUMP SUPPORT	LR064178 BRACKET - PUMP SUPPORT Water Pump / From: GA000001	-	1	Enquire
8A577A	LR071088	HOSE - WATER	LR071088 HOSE - WATER Inlet, Water Pump / From: GA000001	-	1	Enquire
8A577B	LR071718	HOSE - WATER	LR071718 HOSE - WATER Outlet, Water Pump / From: GA000001	-	1	Enquire
8A577C	LR077956	HOSE - WATER	LR077956 HOSE - WATER Inlet, Oil Cooler, Water Pump / From: GA000001	-	1	Enquire
8A577D	LR071041	HOSE	LR071041 HOSE Outlet / From: GA000001	-	1	Enquire
8A577E	LR077955	HOSE - WATER	LR077955 HOSE - WATER From Water Pump To Thermostat / From: GA000001	-	1	Enquire
8C396	LR062457	HOSE - WATER	LR062457 HOSE - WATER Outlet, Water Charge Air Cooler / From: GA000001	-	1	Enquire
14A411	LR075637	WIRING - WATER PUMP	LR075637 WIRING - WATER PUMP With Colour Nav. System NAS / From: GA000001 / To: GA599282	-	1	Enquire
14A411	LR075638	WIRING - WATER PUMP	LR075638 WIRING - WATER PUMP Nav System/Dynmc Route Guide-VICS / From: GA000001 / To: GA599282	-	1	Enquire
14A411	LR089628	WIRING - TRACTION BATTERY	LR089628 WIRING - TRACTION BATTERY With Colour Nav. System NAS / From: GA599283	-	1	Enquire
14A411	LR089629	WIRING - TRACTION BATTERY	LR089629 WIRING - TRACTION BATTERY With Navigation Preparation / From: GA599283 / To: GA999999	-	1	Enquire
14A411	LR088363	WIRING - WATER PUMP	LR088363 WIRING - WATER PUMP 3.0 V6 D Gen2 Twin Turbo, EU6 + DPF Emissions / From: HA000001	-	1	Enquire
14A411	LR088362	WIRING - WATER PUMP	LR088362 WIRING - WATER PUMP LEV 160 / From: HA000001	-	1	Enquire
8501	LR061983	PUMP - WATER	LR061983 PUMP - WATER From: GA000001 / To: GA543654	-	3	Enquire
8501	LR088318	PUMP - WATER	LR088318 PUMP - WATER From: GA543655	-	1	Enquire
18481A	LR048857	CLAMP - WATER PUMP MOUNTING	LR048857 CLAMP - WATER PUMP MOUNTING Water Pump / From: GA000001	-	1	Enquire
18481B	LR048860	CLAMP - WATER PUMP MOUNTING	LR048860 CLAMP - WATER PUMP MOUNTING Water Pump / From: GA000001	-	2	Enquire
