Cooling System Pipes And Hoses (Engine) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V Dohc V6 Tc...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (Engine) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4147433 BOLT Enquire To Order
LR105435 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
1336551 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR077702 HOSE - RADIATOR TO ENG. VENT ELBOW Enquire To Order
LR077702 HOSE - RADIATOR TO ENG. VENT ELBOW Enquire To Order
Photo Part No Description Price (each) Stock
LR073372 CONNECTION - WATER OUTLET Enquire To Order
LR073372 CONNECTION - WATER OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR034626 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR034641 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR039250 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR039253 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR039251 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR039258 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR039260 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR034653 THERMOSTAT AND HOUSING Enquire To Order
LR072669 THERMOSTAT Enquire To Order
LR082870 THERMOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
LR033675 THERMOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
LR013165 TUBE - CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
LR039254 THERMOSTAT AND HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR039256 BRACKET - THERMOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
LR035627 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR035631 HOSE - RADIATOR VENTILATION Enquire To Order
Photo Part No Description Price (each) Stock
LR018829 GASKET - THERMOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
LR026206 STRAP - CABLE Enquire To Order
View All

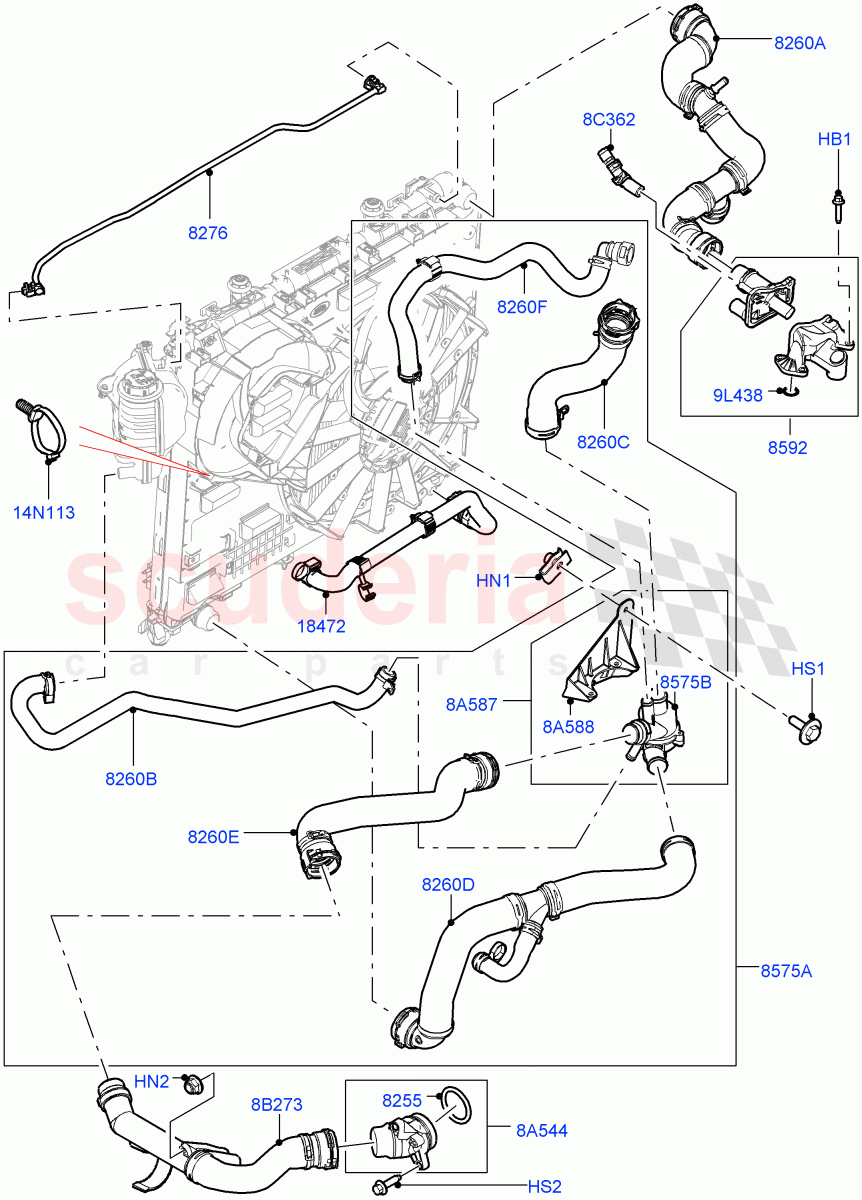

Cooling System Pipes And Hoses (Engine) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4147433
BOLT
M6 X 25MM / To: HA159759 		- 4 Enquire
HB1 LR105435
BOLT
M6 x 27MM / From: HA159760 		- 4 Enquire
HN1 LR000053
NUT - FLANGED
M6 		- 1 Enquire
HN2 FX106046
NUT - FLANGED
Hexagonal Head, M6 		- 1 Enquire
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM 		- 1 Enquire
HS2 RYG500220
SCREW
Hexagonal Head, M6 X 20MM 		- 2 Enquire
8A544 LR013165
TUBE - CONNECTING
Bottom 		- 1 Enquire
8A587 LR039254
THERMOSTAT AND HOUSING 		- 1 Enquire
8A588 LR039256
BRACKET - THERMOSTAT
Thermostat Assy 		- 1 Enquire
8B273 LR035627
HOSE - RADIATOR
Bottom, Engine Side, Thermostat To Engine 		- 1 Enquire
8C362 LR035631
HOSE - RADIATOR VENTILATION
Cooling System Bleed 		- 1 Enquire
9L438 LR018829
GASKET - THERMOSTAT 		- 2 Enquire
14N113 LR026206
STRAP - CABLE 		- 1 Enquire
8255 1336551
GASKET 		- 1 Enquire
8260A LR034641
HOSE - RADIATOR
Radiator, Top 		- 1 Enquire
8260B LR039250
HOSE - WATER
Expansion Reservoir To Thermostat 		- 1 Enquire
8260C LR039253
HOSE - RADIATOR
Thermostat To Top Radiator Hose 		- 1 Enquire
8260D LR039251
HOSE - RADIATOR
Bottom, Radiator 		- 1 Enquire
8260E LR039258
HOSE - RADIATOR
Bottom, Thermostat Side, Thermostat To Engine 		- 1 Enquire
8260F LR039260
HOSE - WATER
Thermostat To Engine, Upper 		- 1 Enquire
8276 LR077702
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator Degas Line / To: FA541399 		- 1 Enquire
8276 LR077702
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator Degas Line / From: FA541400 		- 1 Enquire
8575A LR034653
THERMOSTAT AND HOUSING
Engine To Radiator, Expansion Reservoir To Thermostat, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / To: EA397427 		- 1 Enquire
8575A LR072669
THERMOSTAT
Engine To Radiator, Expansion Reservoir To Thermostat, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / From: EA397428 / To: GA586844 		- 1 Enquire
8575A LR082870
THERMOSTAT
Engine To Radiator, Expansion Reservoir To Thermostat, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / From: GA586845 		- 1 Enquire
8575B LR033675
THERMOSTAT 		- 1 Enquire
8592 LR073372
CONNECTION - WATER OUTLET
To: FA525813 		- 1 Enquire
8592 LR073372
CONNECTION - WATER OUTLET
From: FA525814 		- 1 Enquire
18472 LR034626
HOSE - HEATER WATER
From Transmission Oil Cooler To Radiator 		- 1 Enquire
