Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6...

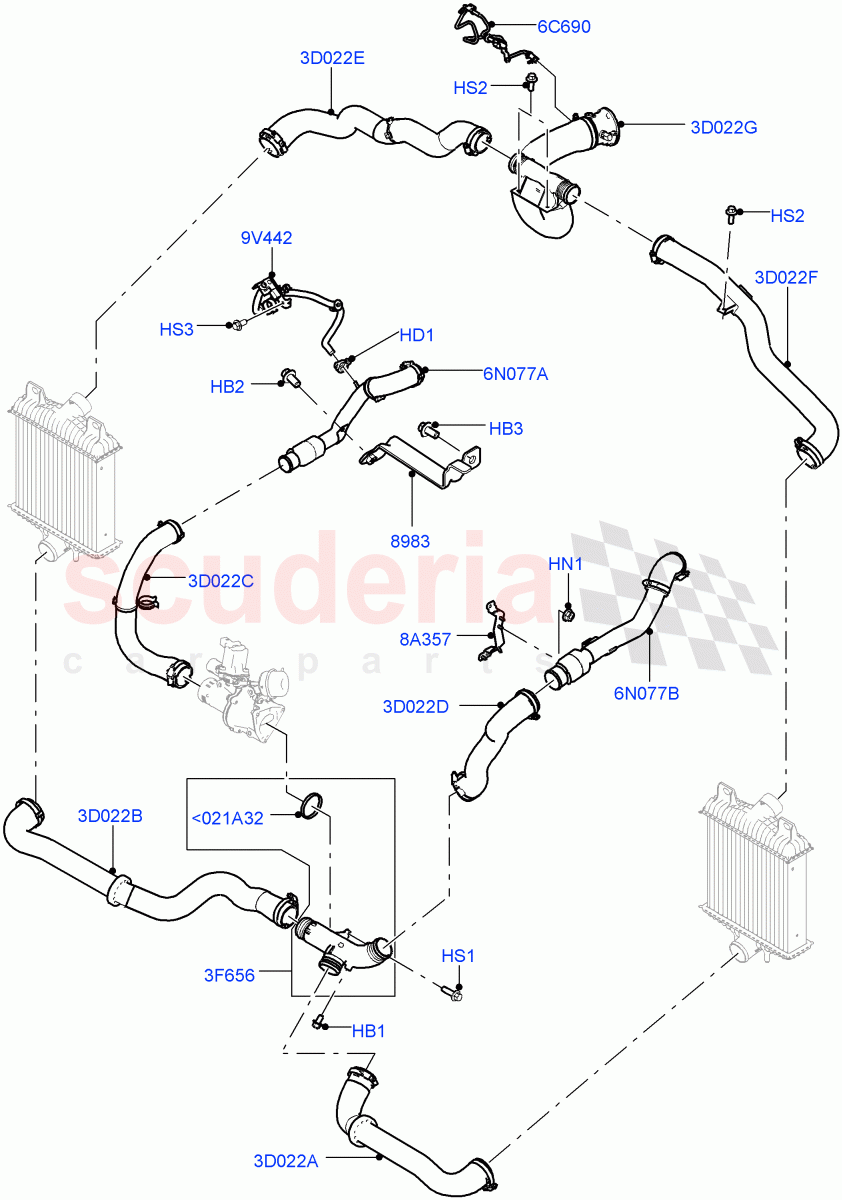

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106106 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS106126 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR016628 CLAMP - TUBE Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYP500200 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
BYP500170 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR049174 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR036507 CONNECTOR - HOSE Enquire To Order
LR057900 CONNECTOR - HOSE Enquire To Order
LR062674 CONNECTOR - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR035509 PIPE - TURBO BOOST Enquire To Order
Photo Part No Description Price (each) Stock
LR036489 BRACKET - TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR014386 SENSOR - AIR CHARGE Enquire To Order
Photo Part No Description Price (each) Stock
LR036478 HOSE - COMPRESSED AIR Enquire To Order
LR053286 HOSE - COMPRESSED AIR Enquire To Order
LR057205 HOSE - COMPRESSED AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR036499 HOSE - COMPRESSED AIR Enquire To Order
LR053285 HOSE - COMPRESSED AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR036474 HOSE - COMPRESSED AIR Enquire To Order
LR056334 HOSE - COMPRESSED AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR054616 HOSE - COMPRESSED AIR Enquire To Order
LR056250 HOSE - COMPRESSED AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR036476 HOSE - COMPRESSED AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR036477 HOSE - COMPRESSED AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR036475 HOSE - COMPRESSED AIR Enquire To Order
LR084255 HOSE - COMPRESSED AIR Enquire To Order
LR117093 HOSE - COMPRESSED AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR036473 TUBE - OUTLET Enquire To Order
LR056328 TUBE - OUTLET Enquire To Order
LR094281 TUBE - AIR INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR036480 TUBE - OUTLET Enquire To Order
LR056344 TUBE - OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR036414 SEAL - H-PIECE - HP AIR DUCTS Enquire To Order
View All
Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V DOHC V6 TC Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR036414
SEAL - H-PIECE - HP AIR DUCTS
H-Connector 		- 1 Enquire
HB1 FS106106
BOLT
Hexagonal Head, M6 X 10MM 		- 1 Enquire
HB2 FS106126
BOLT
3.0L 24V V6 Turbo Diesel Std Flow / Hexagonal Head, M6 x 12MM 		- 3 Enquire
HB3 FS108166
BOLT
3.0 V6 Diesel Electric Hybrid Eng / Hexagonal Head, M8 X 16MM / From: FA000001 		- 1 Enquire
HD1 LR016628
CLAMP - TUBE
Hose Clamp, Secondary Compressor Outlet Pressure Sensor, Tube 		- 1 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 1 Enquire
HS1 RYP500200
SCREW
Hexagonal Head, M6 X 20MM 		- 3 Enquire
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM 		- 3 Enquire
HS3 BYP500170
SCREW
Hexagonal Head, M6 x 14MM 		- 1 Enquire
3D022A LR036478
HOSE - COMPRESSED AIR
LH, Intercooler Inlet, With Clamps / To: EA301868 		- 1 Enquire
3D022A LR053286
HOSE - COMPRESSED AIR
LH, Intercooler Inlet, With Clamps / From: EA301869 / To: EA503730 		- 1 Enquire
3D022A LR057205
HOSE - COMPRESSED AIR
LH, Intercooler Inlet, With Clamps / From: EA503731 		- 1 Enquire
3D022B LR036499
HOSE - COMPRESSED AIR
RH, Intercooler Inlet, With Clamps / To: EA301868 		- 1 Enquire
3D022B LR053285
HOSE - COMPRESSED AIR
RH, Intercooler Inlet, With Clamps / From: EA301869 		- 1 Enquire
3D022C LR036474
HOSE - COMPRESSED AIR
Inlet, Shut Off Valve, With Clamps / To: EA309450 		- 1 Enquire
3D022C LR056334
HOSE - COMPRESSED AIR
Inlet, Shut Off Valve, With Clamps / From: EA309451 		- 1 Enquire
3D022D LR054616
HOSE - COMPRESSED AIR
H-Connector, Inlet, Please Refer To SSM (Special Service Message) - 65517, With Clamps / To: EA300637 		- 1 Enquire
3D022D LR056250
HOSE - COMPRESSED AIR
H-Connector, Inlet, With Clamps / From: EA300638 		- 1 Enquire
3D022E LR036476
HOSE - COMPRESSED AIR
RH, Intercooler Outlet, With Clamps 		- 1 Enquire
3D022F LR036477
HOSE - COMPRESSED AIR
LH, Intercooler Outlet, With Clamps 		- 1 Enquire
3D022G LR036475
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps / To: GA570766 		- 1 Enquire
3D022G LR084255
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps / From: GA570767 / To: KA815081 		- 1 Enquire
3D022G LR117093
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps / From: KA815082 		- 1 Enquire
3F656 LR036507
CONNECTOR - HOSE
H-Connector / To: EA301868 		- 1 Enquire
3F656 LR057900
CONNECTOR - HOSE
H-Connector / From: EA301869 / To: EA379399 		- 1 Enquire
3F656 LR062674
CONNECTOR - HOSE
H-Connector / From: EA379400 		- 1 Enquire
6C690 LR035509
PIPE - TURBO BOOST 		- 1 Enquire
6N077A LR036473
TUBE - OUTLET
RH, Turbocharger Outlet, With Clamps / To: EA309450 		- 1 Enquire
6N077A LR056328
TUBE - OUTLET
RH, Turbocharger Outlet, With Clamps / From: EA309451 / To: GA114470 		- 1 Enquire
6N077A LR094281
TUBE - AIR INLET
RH, Turbocharger Outlet, With Clamps / From: GA114471 		- 1 Enquire
6N077B LR036480
TUBE - OUTLET
LH, Turbocharger Outlet, With Clamps / To: EA309450 		- 1 Enquire
6N077B LR056344
TUBE - OUTLET
LH, Turbocharger Outlet, With Clamps / From: EA309451 		- 1 Enquire
8A357 LR036489
BRACKET - TUBE
Turbocharger Outlet 		- 1 Enquire
9V442 LR014386
SENSOR - AIR CHARGE
Secondary Compressor Outlet Pressure Sensor With Tube 		- 1 Enquire
8983 LR049174
BRACKET - SUPPORT
3.0 V6 Diesel Electric Hybrid Eng / Tube, Turbocharger Outlet / From: FA000001 		- 1 Enquire
