Air Cleaner (3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V DOHC V6 TC Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Air Cleaner (3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V DOHC V6...

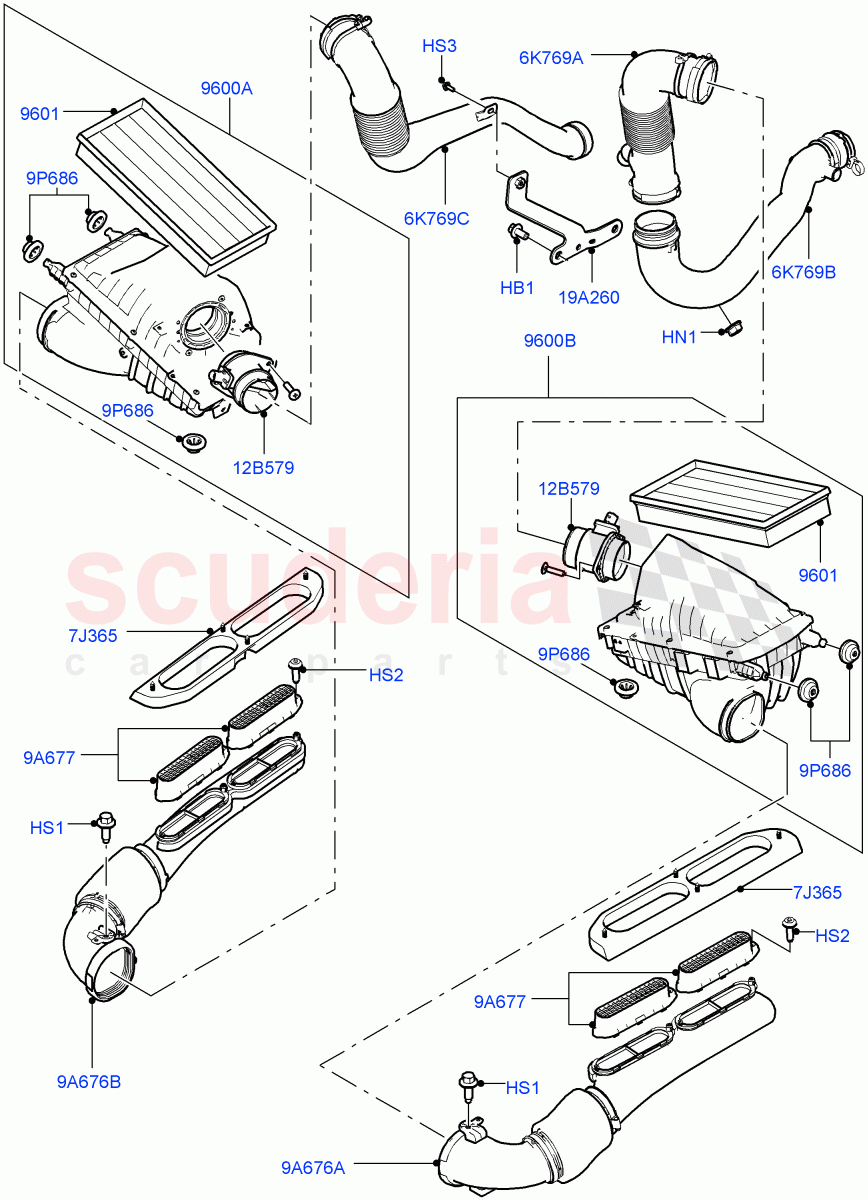

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008793	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161843	FILTER - AIR CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111065	GUIDE - DIRTY AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036428	CLEANER - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036427	CLEANER - AIR	Enquire	To Order
	LR095794	CLEANER - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036450	GRILLE - DIRTY AIR DUCT	Enquire	To Order
	LR113348	GRILLE - DIRTY AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000753	INSULATOR - AIR CLEANER HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035726	SENSOR - MASS AIR FLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049173	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036464	DUCT - CLEAN AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036465	DUCT - CLEAN AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036466	DUCT - CLEAN AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045407	DUCT - DIRTY AIR	Enquire	To Order
	LR049314	MOULDING - SNOW INGRESS PROTECTOR	Enquire	To Order
	LR100435	DUCT - DIRTY AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045408	DUCT - DIRTY AIR	Enquire	To Order
	LR049313	DUCT - DIRTY AIR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108166	BOLT	FS108166 BOLT 3.0 V6 Diesel Electric Hybrid Eng / Hexagonal Head, M8 X 16MM / From: FA000001	-	2	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6	-	1	Enquire
HS1	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM	-	4	Enquire
HS2	LR008793	SCREW	LR008793 SCREW M5 X 16MM, Torx	-	4	Enquire
HS3	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM	-	1	Enquire
6K769A	LR036464	DUCT - CLEAN AIR	LR036464 DUCT - CLEAN AIR LH, Air Cleaner Outlet, Upper	-	1	Enquire
6K769B	LR036465	DUCT - CLEAN AIR	LR036465 DUCT - CLEAN AIR LH Lower, Turbocharger Inlet	-	1	Enquire
6K769C	LR036466	DUCT - CLEAN AIR	LR036466 DUCT - CLEAN AIR RH, Air Cleaner To Turbocharger	-	1	Enquire
7J365	LR111065	GUIDE - DIRTY AIR DUCT	LR111065 GUIDE - DIRTY AIR DUCT Dirty Air Duct, Mounted To Hood	-	2	Enquire
9A676A	LR045407	DUCT - DIRTY AIR	LR045407 DUCT - DIRTY AIR LH / To: EA307720	-	1	Enquire
9A676A	LR049314	MOULDING - SNOW INGRESS PROTECTOR	LR049314 MOULDING - SNOW INGRESS PROTECTOR LH / From: EA307721 / To: HA164344	-	1	Enquire
9A676A	LR100435	DUCT - DIRTY AIR	LR100435 DUCT - DIRTY AIR LH / From: HA164345	-	1	Enquire
9A676B	LR045408	DUCT - DIRTY AIR	LR045408 DUCT - DIRTY AIR RH / To: EA307720	-	1	Enquire
9A676B	LR049313	DUCT - DIRTY AIR	LR049313 DUCT - DIRTY AIR RH / From: EA307721	-	1	Enquire
9A677	LR036450	GRILLE - DIRTY AIR DUCT	LR036450 GRILLE - DIRTY AIR DUCT To: HA999999	-	4	Enquire
9A677	LR113348	GRILLE - DIRTY AIR DUCT	LR113348 GRILLE - DIRTY AIR DUCT From: JA000001	-	4	Enquire
9P686	LR000753	INSULATOR - AIR CLEANER HOUSING	LR000753 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown	-	6	Enquire
12B579	LR035726	SENSOR - MASS AIR FLOW	LR035726 SENSOR - MASS AIR FLOW Mass Air Flow Sensor	-	2	Enquire
19A260	LR049173	BRACKET - SUPPORT	LR049173 BRACKET - SUPPORT 3.0 V6 Diesel Electric Hybrid Eng / From: FA000001	-	1	Enquire
9600A	LR036428	CLEANER - AIR	LR036428 CLEANER - AIR (-)"CDN/USA" / RH	-	1	Enquire
9600B	LR036427	CLEANER - AIR	LR036427 CLEANER - AIR LH / To: HA128194	-	1	Enquire
9600B	LR095794	CLEANER - AIR	LR095794 CLEANER - AIR LH / From: HA128195	-	1	Enquire
9601	LR161843	FILTER - AIR CLEANER	LR161843 FILTER - AIR CLEANER	-	2	Enquire
