Drive Shaft - Rear Axle Drive (Propshaft) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Drive Shaft - Rear Axle Drive (Propshaft) ((V) FROMHA000001)

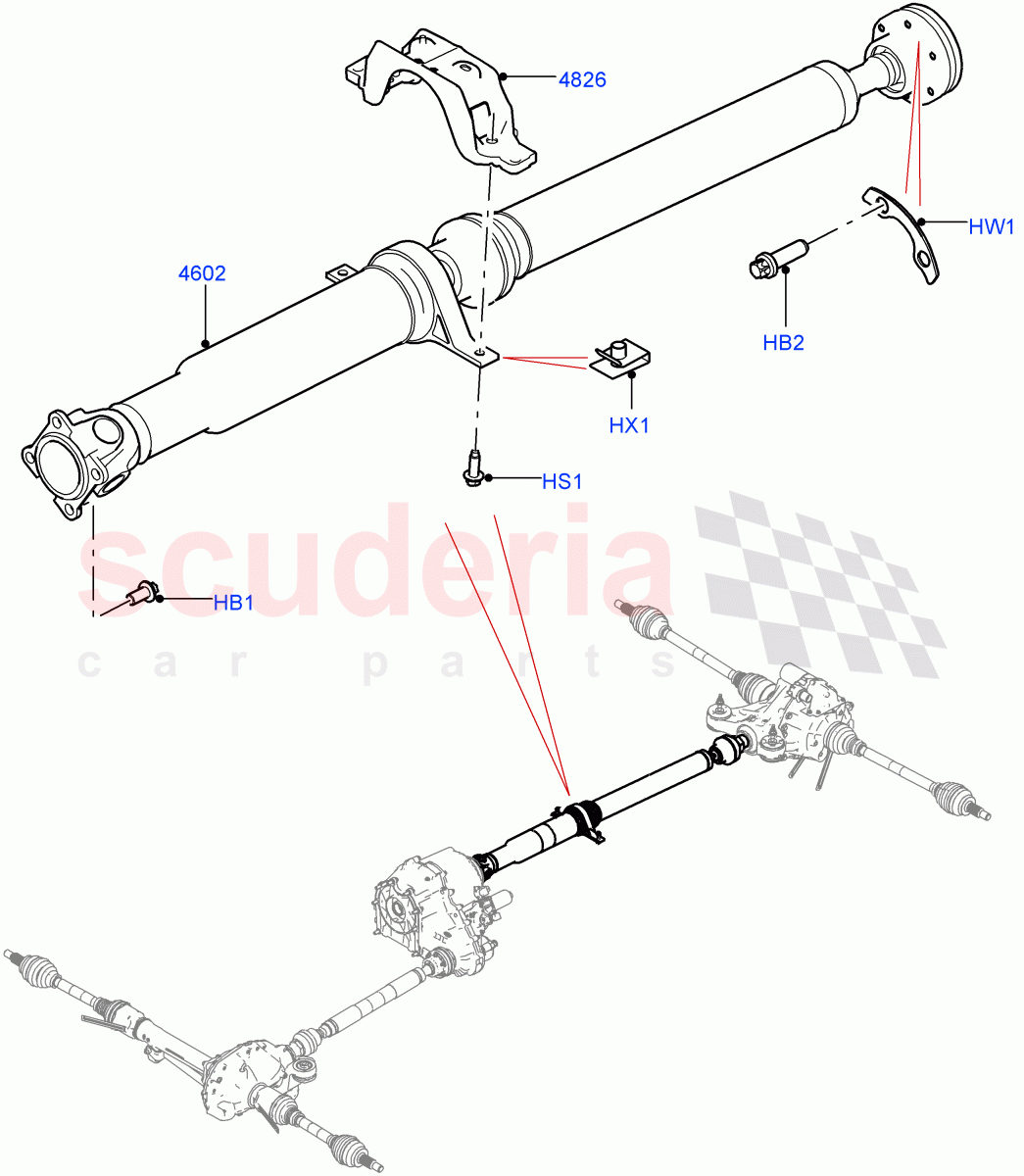

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TYG500130	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYP500180	SCREW	Enquire	To Order
	LR092696	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYF500020	WASHER - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYH500100	NUT - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082554	SHAFT - REAR AXLE OUTER STUB	Enquire	To Order
	LR082558	SHAFT - REAR AXLE OUTER STUB	Enquire	To Order
	LR082554	SHAFT - REAR AXLE OUTER STUB	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR066317	BRACKET - DRIVESHAFT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	TYG500130	BOLT	TYG500130 BOLT External Torx Head, M12 x 25MM / From: HA000001	-	4	Enquire
HB2	TYP500180	SCREW	TYP500180 SCREW M10 X 1.5, Service Fit - Flange Type Propshaft Connection / From: HA000001 / To: HA151410	-	6	Enquire
HB2	LR092696	BOLT	LR092696 BOLT External Torx Head, M10 x 52MM / From: HA151411	-	6	Enquire
HS1	RYG500270	SCREW	RYG500270 SCREW Hexagonal Head, M10 X 25MM / From: HA000001	-	2	Enquire
HW1	TYF500020	WASHER - SEALING	TYF500020 WASHER - SEALING M10, Service Fit - Flange Type Propshaft Connection, Special Washer / From: HA000001	-	3	Enquire
HX1	KYH500100	NUT - SPRING	KYH500100 NUT - SPRING M10, Nut "U" Spring / From: HA000001	-	2	Enquire
4602	LR082554	SHAFT - REAR AXLE OUTER STUB	LR082554 SHAFT - REAR AXLE OUTER STUB With 2 Spd Trans Case With Ctl Trac / From: HA000001 / To: HA999999	-	1	Enquire
4602	LR082558	SHAFT - REAR AXLE OUTER STUB	LR082558 SHAFT - REAR AXLE OUTER STUB With 1 Speed Transfer Case / From: HA000001 / To: JA999999	-	1	Enquire
4602	LR082554	SHAFT - REAR AXLE OUTER STUB	LR082554 SHAFT - REAR AXLE OUTER STUB 2.0L I4 DSL HIGH DOHC AJ200, With 2 Spd Trans Case With Ctl Trac / From: JA000001	-	1	Enquire
4602	LR100831	SHAFT - REAR AXLE OUTER STUB	LR100831 SHAFT - REAR AXLE OUTER STUB 2.0L AJ200P Hi PHEV, With 2 Spd Trans Case With Ctl Trac / From: JA000001	-	1	Enquire
4602	LR082558	SHAFT - REAR AXLE OUTER STUB	LR082558 SHAFT - REAR AXLE OUTER STUB 2.0L I4 High DOHC AJ200 Petrol, With 1 Speed Transfer Case / From: KA000001	-	1	Enquire
4602	LR121134	SHAFT - REAR AXLE OUTER STUB	LR121134 SHAFT - REAR AXLE OUTER STUB 3.0L AJ20P6 Petrol High, With 1 Speed Transfer Case / From: KA000001	-	1	Enquire
4602	LR121134	SHAFT - REAR AXLE OUTER STUB	LR121134 SHAFT - REAR AXLE OUTER STUB 3.0L AJ20D6 Diesel High, With 1 Speed Transfer Case / From: LA000001	-	1	Enquire
4826	LR066317	BRACKET - DRIVESHAFT	LR066317 BRACKET - DRIVESHAFT From: HA000001	-	1	Enquire
