Name: Transfer Drive Components (8 Speed Auto Trans ZF 8HP45, With 1 Speed Transfer Case, 8 Speed Auto Trans ZF 8HP70 4WD) ((V) TOGA999999)
Rating: 5.0 (1 reviews)

Transfer Drive Components (8 Speed Auto Trans ZF 8HP45, With 1 Speed Transfer Case, 8 Speed Auto Trans ZF 8HP70 4WD) ((V) TOGA999999) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Transfer Drive Components (8 Speed Auto Trans ZF 8HP45, With 1 Speed Transfer Case, 8 Speed Auto...

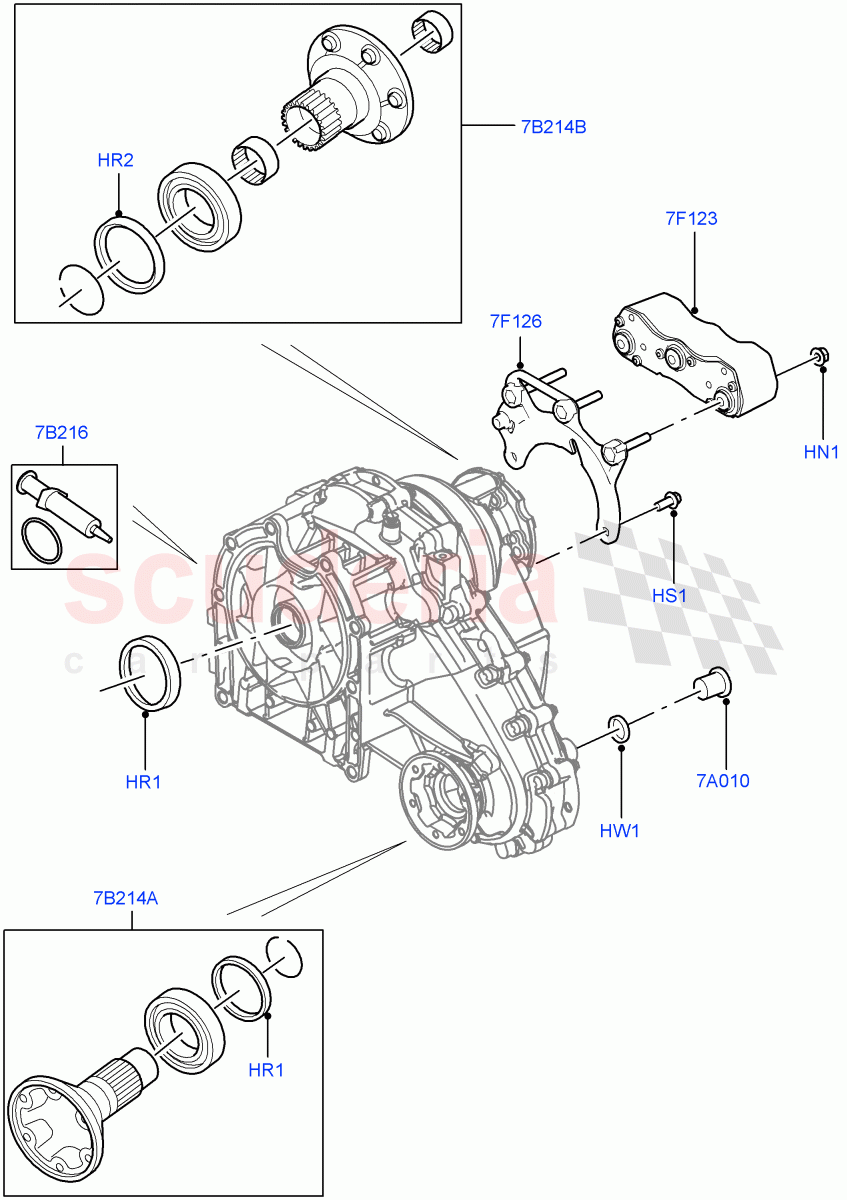

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000048	NUT - HEX. - FLANGED	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	IZB500040	RING - SEALING	$17.79	To Order

Photo	Part No	Description	Price (each)	Stock
	IZB500050	RING - SEALING	$22.14	To Order

Photo	Part No	Description	Price (each)	Stock
	FA108202	SCREW	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048842	WASHER - DRAIN PLUG	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048841	PLUG - OIL DRAIN	$5.94	To Order

Photo	Part No	Description	Price (each)	Stock
	IYX500050	KIT - GREASE AND ORING	$24.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR046648	DAMPER - VIBRATION	$190.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048332	BRACKET - DAMPER	$92.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086059	FLANGE - PROPSHAFT	$207.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039528	KIT - TRANSFER BOX FLANGE	$259.25	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR000048	NUT - HEX. - FLANGED	LR000048 NUT - HEX. - FLANGED M8	$0.50	3
HR1	IZB500040	RING - SEALING	IZB500040 RING - SEALING Front Output, Seal	$17.79	1
HR2	IZB500050	RING - SEALING	IZB500050 RING - SEALING Rear Output, Seal	$22.14	1
HS1	FA108202	SCREW	FA108202 SCREW Hexagonal Head, M8 X 20MM, Taptite	$1.30	3
HW1	LR048842	WASHER - DRAIN PLUG	LR048842 WASHER - DRAIN PLUG Filler Plug, M18, Plug - Oil Drain	$1.09	2
7A010	LR048841	PLUG - OIL DRAIN	LR048841 PLUG - OIL DRAIN Filler Plug, M18, Plug - Oil Drain	$5.94	2
7B214A	LR086059	FLANGE - PROPSHAFT	LR086059 FLANGE - PROPSHAFT Front, Propshaft	$207.67	1
7B214B	LR039528	KIT - TRANSFER BOX FLANGE	LR039528 KIT - TRANSFER BOX FLANGE Propshaft, Rear	$259.25	1
7B216	IYX500050	KIT - GREASE AND ORING	IYX500050 KIT - GREASE AND ORING Input Shaft, Kit	$24.24	1
7F123	LR046648	DAMPER - VIBRATION	LR046648 DAMPER - VIBRATION 3.0L DOHC GDI SC V6 PETROL	$190.31	1
7F126	LR048332	BRACKET - DAMPER	LR048332 BRACKET - DAMPER 3.0L DOHC GDI SC V6 PETROL	$92.74	1

Transfer Drive Components (8 Speed Auto Trans Zf 8Hp45, With 1 Speed Transfer Case, 8 Speed Auto...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Transfer Drive Components (8 Speed Auto Trans ZF 8HP45, With 1 Speed Transfer Case, 8 Speed Auto...
