Transfer Drive Components (8 Speed Auto Trans ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl Trac, 8 Speed Auto Trans ZF 8HP70 4WD, 8 Speed Auto Trans ZF 8HP45) ((V) TOGA999999) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Transfer Drive Components (8 Speed Auto Trans ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl...

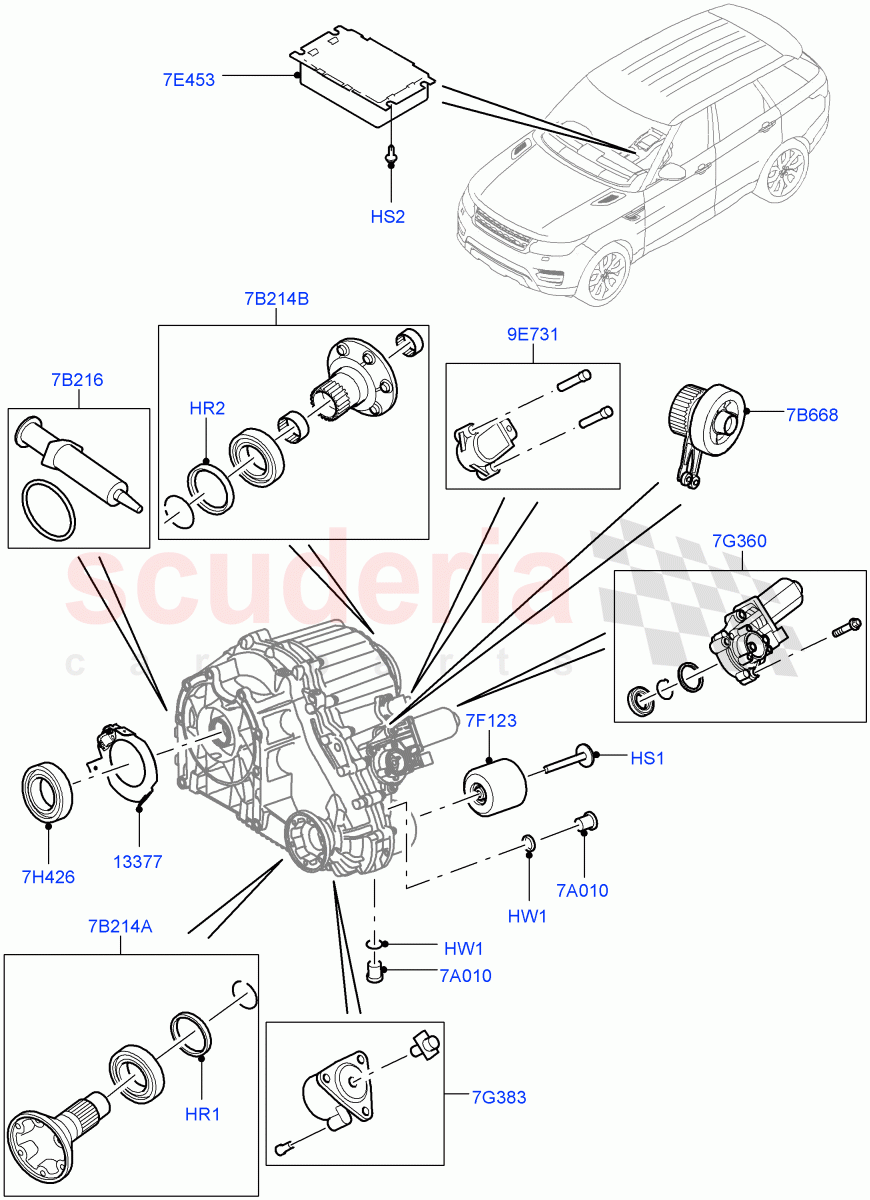

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	IZB500040	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IZB500050	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYP500080	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027974	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYF500030	WASHER	Enquire	To Order
	LR048842	WASHER - DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072212	UNIT - GROUNDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYB500020	PLUG - OIL DRAIN	Enquire	To Order
	LR048841	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYX500050	KIT - GREASE AND ORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105429	KIT - TRANSFER CASE CLUTCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043578	MODULE - TRANSFER SHIFT CONTROL	Enquire	To Order
	LR052557	MODULE - TRANSFER SHIFT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IAI500100	DAMPER - VIBRATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IGH500040	MOTOR - TRANSFER CASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IZB500030	SEAL - TRANSFER BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IAB500191	SENSOR - TRIPMINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086059	FLANGE - PROPSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039528	KIT - TRANSFER BOX FLANGE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	IZB500040	RING - SEALING	IZB500040 RING - SEALING Front Output, Seal	-	1	Enquire
HR2	IZB500050	RING - SEALING	IZB500050 RING - SEALING Rear Output, Seal	-	1	Enquire
HS1	IYP500080	SCREW	IYP500080 SCREW Bolt And Washer, HEX Flange, M10 X 80MM	-	1	Enquire
HS2	LR027974	SCREW - SELF-TAPPING	LR027974 SCREW - SELF-TAPPING M6X16	-	4	Enquire
HW1	IYF500030	WASHER	IYF500030 WASHER M16, Plug - Oil Drain	-	2	Enquire
HW1	LR048842	WASHER - DRAIN PLUG	LR048842 WASHER - DRAIN PLUG Filler Plug, M18, Plug - Oil Drain	-	2	Enquire
7A010	IYB500020	PLUG - OIL DRAIN	IYB500020 PLUG - OIL DRAIN Filler Plug, M16, Plug - Oil Drain	-	2	Enquire
7A010	LR048841	PLUG - OIL DRAIN	LR048841 PLUG - OIL DRAIN Filler Plug, M18, Plug - Oil Drain	-	2	Enquire
7B214A	LR086059	FLANGE - PROPSHAFT	LR086059 FLANGE - PROPSHAFT Front, Propshaft	-	1	Enquire
7B214B	LR039528	KIT - TRANSFER BOX FLANGE	LR039528 KIT - TRANSFER BOX FLANGE Propshaft, Rear	-	1	Enquire
7B216	IYX500050	KIT - GREASE AND ORING	IYX500050 KIT - GREASE AND ORING Input Shaft, Kit	-	1	Enquire
7B668	LR105429	KIT - TRANSFER CASE CLUTCH	LR105429 KIT - TRANSFER CASE CLUTCH From: EA308099	-	1	Enquire
7E453	LR043578	MODULE - TRANSFER SHIFT CONTROL	LR043578 MODULE - TRANSFER SHIFT CONTROL To: EA308098	-	1	Enquire
7E453	LR052557	MODULE - TRANSFER SHIFT CONTROL	LR052557 MODULE - TRANSFER SHIFT CONTROL From: EA308099	-	1	Enquire
7F123	IAI500100	DAMPER - VIBRATION	IAI500100 DAMPER - VIBRATION	-	1	Enquire
7G360	IGH500040	MOTOR - TRANSFER CASE	IGH500040 MOTOR - TRANSFER CASE Transfer Case Shifter	-	1	Enquire
7G383	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	IGF500011 SOLENOID - ELECTRONIC PRESSURE CTL Transfer Box	-	1	Enquire
7H426	IZB500030	SEAL - TRANSFER BOX	IZB500030 SEAL - TRANSFER BOX Input Shaft	-	1	Enquire
9E731	IAB500191	SENSOR - TRIPMINDER	IAB500191 SENSOR - TRIPMINDER High/Low Position Sensor	-	1	Enquire
13377	LR072212	UNIT - GROUNDING	LR072212 UNIT - GROUNDING 3.0 V6 Diesel Electric Hybrid Eng, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Clip - Grounding / From: GA000001	-	1	Enquire
